Instrument Panel Cluster (IPC) - Lamp Replacement




REMOVAL PROCEDURE

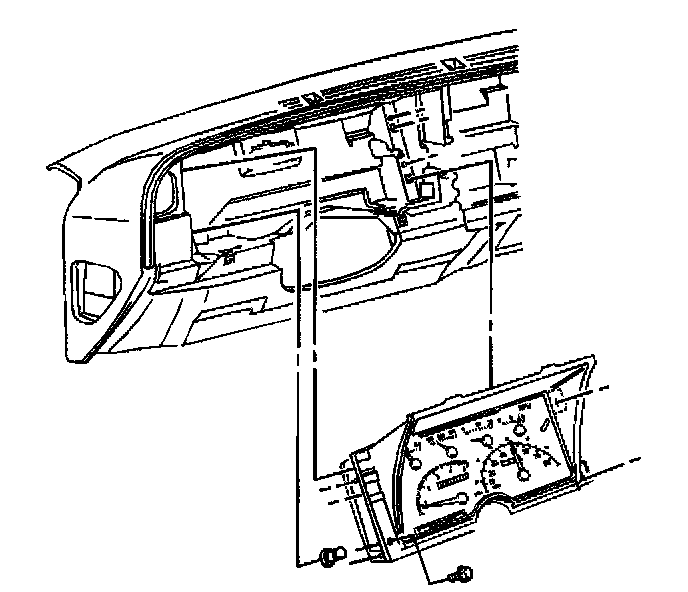

1. Remove the instrument cluster.
2. Remove the bulb and the base assembly by turning the bulb one-half turn to the left.

INSTALLATION PROCEDURE
1. Insert the bulbs into the cluster by inserting the socket and bulb assembly and twisting the assembly to the right.
2. Install the instrument cluster.
