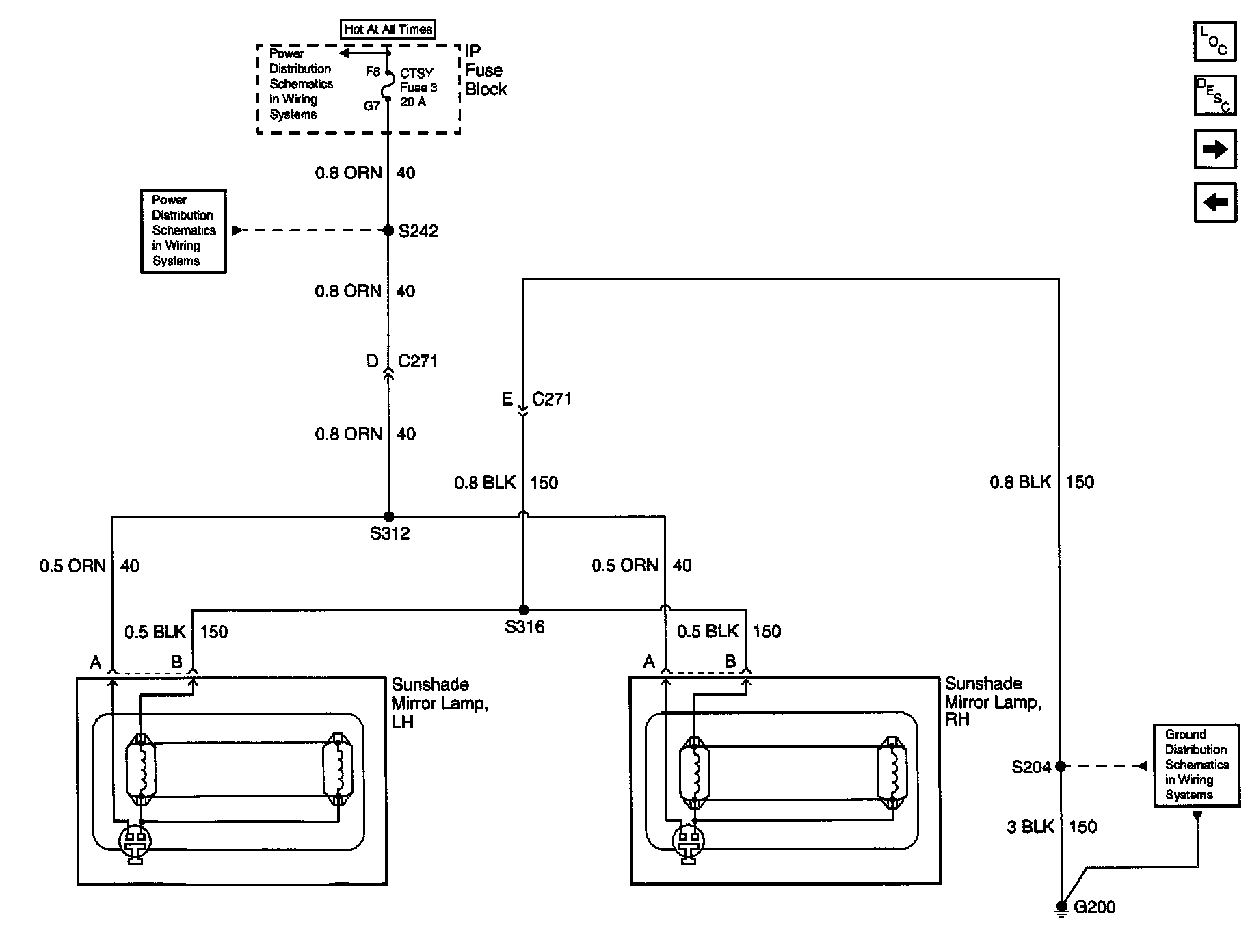

CTSY Fuse 3, Illuminated Vanity Mirrors

Interior Lights Schematics (Base): CTSY Fuse 3, Illuminated Vanity Mirrors:
