K 3500 Truck 4WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Daytime Running Lamp
>>
Diagrams
>>

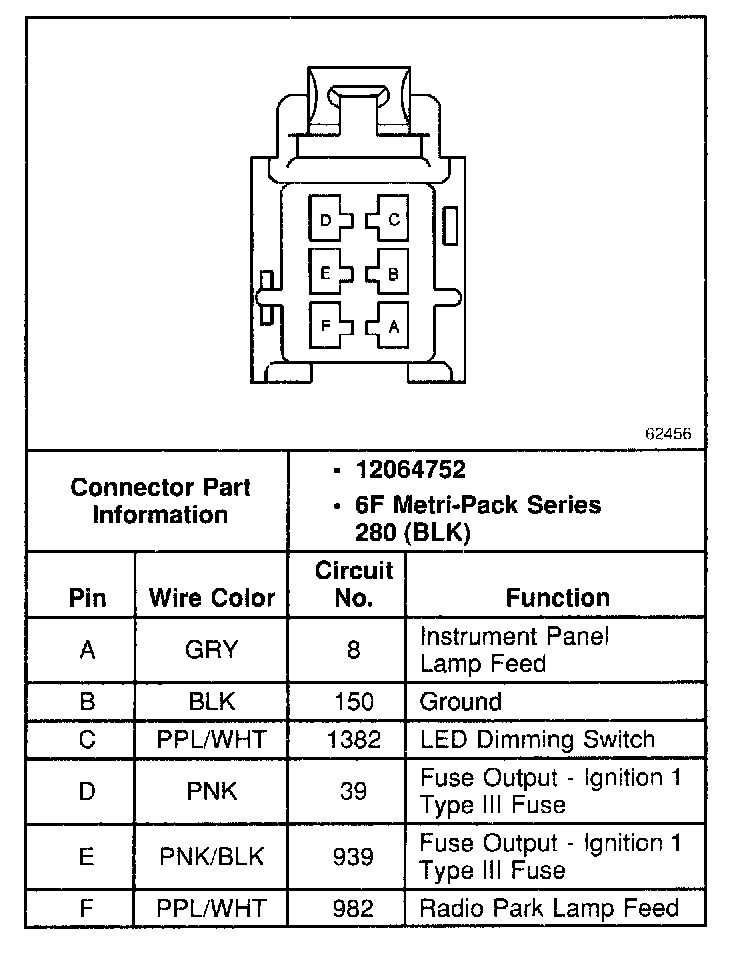

Connector Views
Connector Views
DRL & Radio Override:
Z56 Only. For a description of the RPO Code(s) shown in this article, refer to the RPO Code List found at Vehicle/Application and ID
RPO Codes
