A/T Internal Switches, TFT, PC Solenoid, and TISS
A/T Internal Switches, TFT, PC Solenoid, and TISS

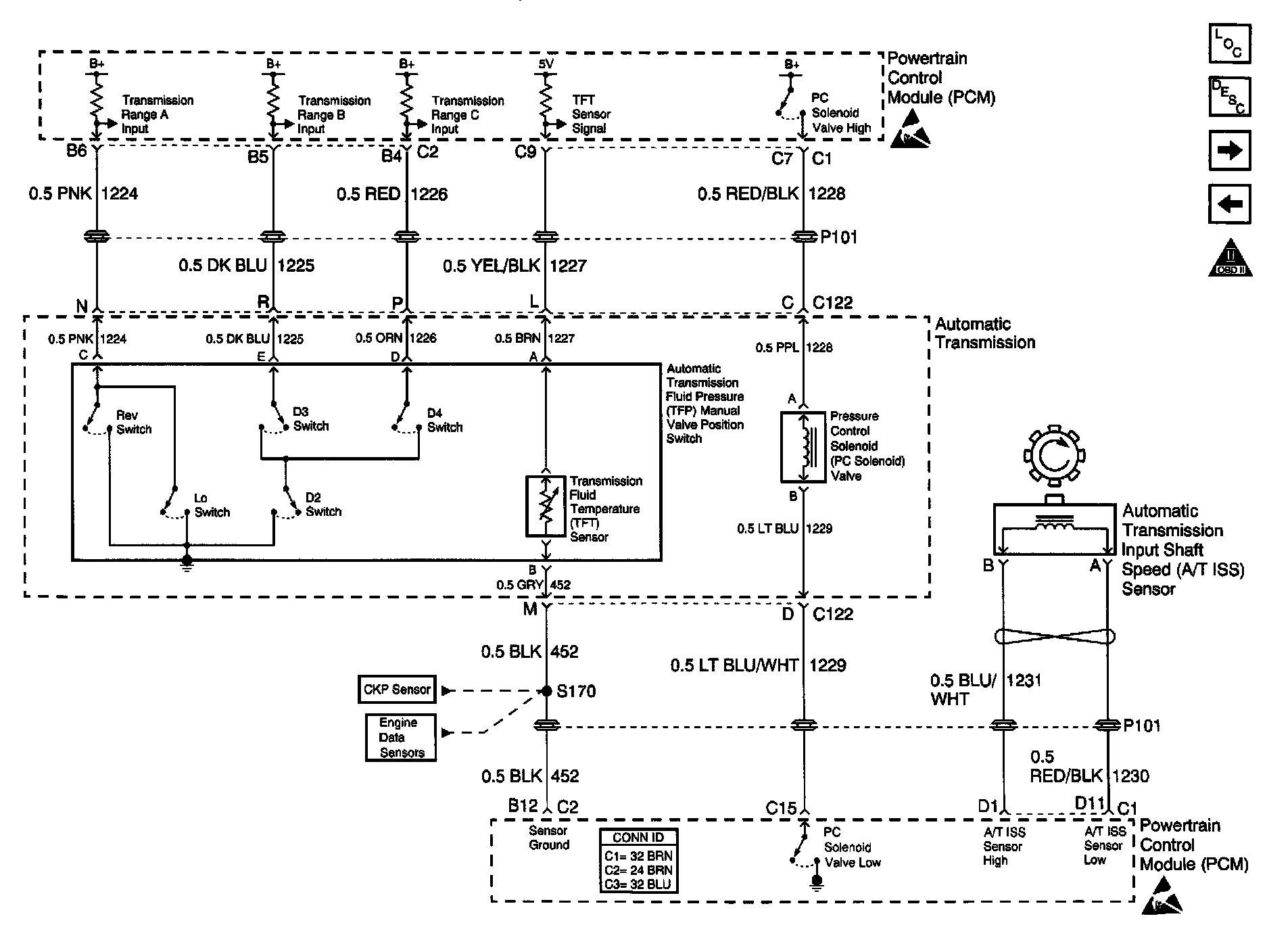

Engine Controls Schematics: A/T Internal Switches, TFT, PC Solenoid, And TISS:
