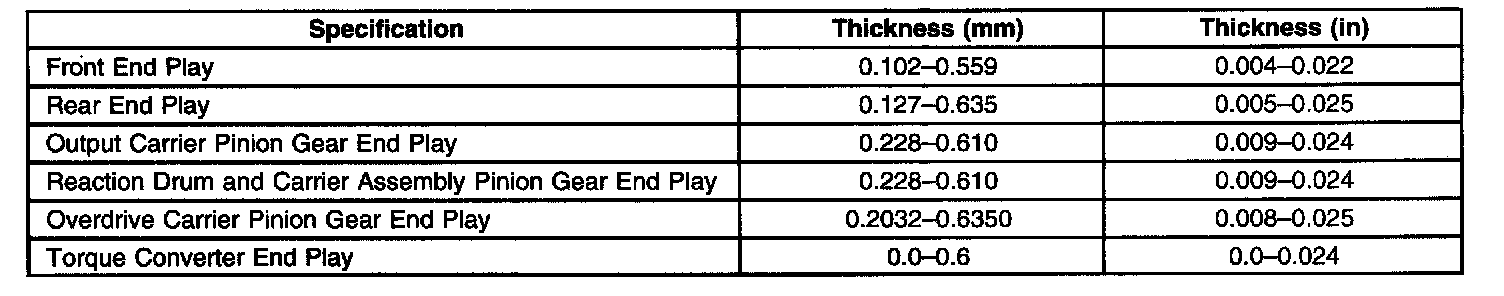

End Play Specifications





End Play Specifications






Overrun Clutch Housing Selective Thrust Washer Specifications






Output Shaft Selective Thrust Washer Specifications
