With Auxiliary

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the battery negative cable from the battery negative terminal.
2. Disconnect the battery positive cable from the battery positive terminal.

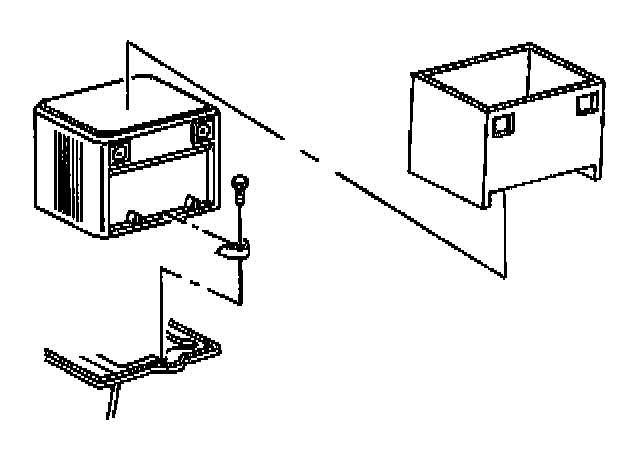

3. Remove the battery hold-down bolt and retainer.
4. Remove the battery.

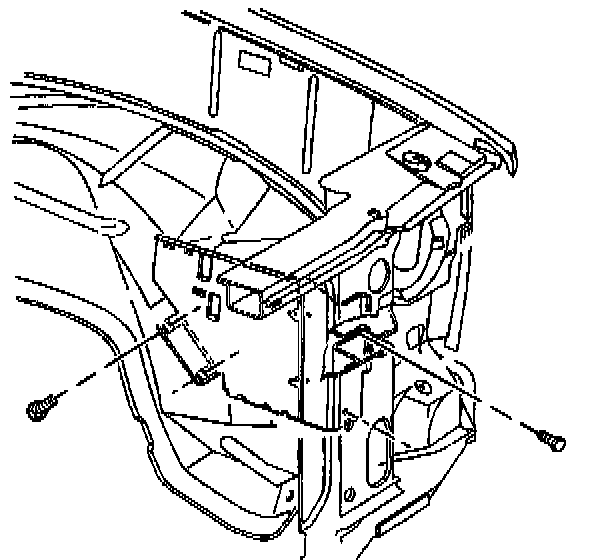

5. Remove the battery tray reinforcement bolts.
6. Remove the battery tray reinforcement from the vehicle.






7. Remove the battery tray bolts.
8. Remove the battery tray from the vehicle.

INSTALLATION PROCEDURE






1. Install the battery tray to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the battery tray bolts.

Tighten
Tighten the bolts to 25 N.m (18 lb ft).






3. Install the battery tray reinforcement to the vehicle.
4. Install the battery tray reinforcement bolts.

Tighten
Tighten the retainer bolt to 25 N.m (18 lb ft).






5. Install the battery.
6. Install the hold-down retainer and bolt.

Tighten
Tighten the retainer bolt to 15 N.m (11 lb ft).

7. Install the battery positive cable to the battery.

Tighten
Tighten the cable to 10 N.m (89 lb in).

8. Install the battery negative cable to the battery.

Tighten
Tighten the cable to 10 N.m (89 lb in).
