34. Reaction Carrier Shaft Replacement

Removal Procedure

^ Tools Required
- J 23907 Universal Remover with Bearing Adapter
- J 25019-14 Bushing Remover
- J 29369-2 Bushing and Universal Remover
- J 7004-1 Universal Remover





1. Remove the reaction carrier shaft/internal gear retainer (668) and the reaction carrier shaft (666) from the input internal gear (664).
2. Inspect the reaction carrier shaft (666) and the input internal gear (664) for the following defects:
^ Scoring
^ Cracking
^ Damaged or worn bushings
^ A cracked shaft
^ A damaged spline
^ Damaged gear teeth





3. Using J 29369-2 with J 23907, remove the reaction carrier shaft front bushing (665).





4. Using J 25019-14 with J 7004- 1, remove the reaction carrier shaft rear bushing (667).

Installation Procedure

^ Tools Required
- J 34196-3 Reaction Carrier Shaft and Rear Reverse Input Clutch Housing Bushing Installer
- J 8092 Driver Handle

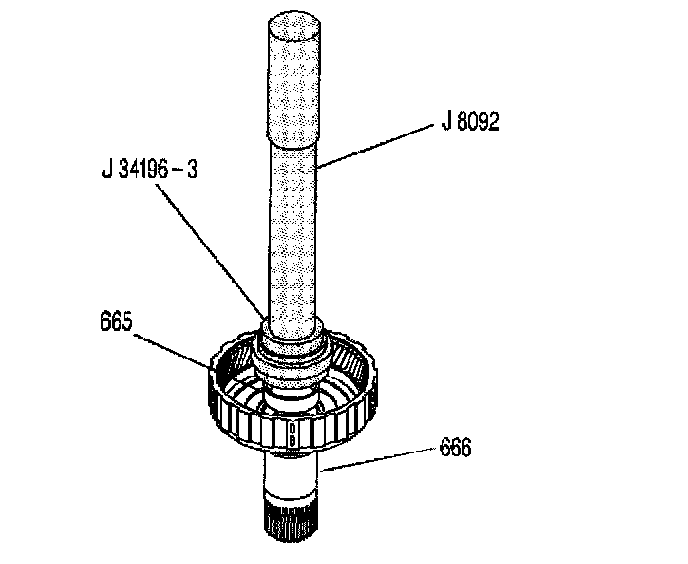

1. Using J 34196-3 with J 8092, install a new reaction carrier shaft front bushing (665).





2. Using J 34196-3 with J 8092, install a reaction carrier shaft rear bushing (667).
