4L60-E/4L65-E Automatic Transmission





Transmission Replacement

Tools Required

- J 21366 Converter Holding Strap

Removal Procedure

1. Raise the vehicle.
2. Drain the transmission fluid. Refer to Automatic Transmission Fluid and Filter Replacement Procedures.
3. Remove the transmission oil level indicator tube and seal from the transmission. Refer to Filler Tube Replacement Service and Repair.
4. Plug the oil level indicator tube opening in the transmission.
5. Remove the shift cable end from the transmission shift lever ball stud. Refer to Shift Cable Replacement Service and Repair.
6. If equipped with a transfer case, remove the front propeller shaft. Refer to Front Propeller Shaft Replacement Service and Repair.
7. Remove the rear propeller shaft. Refer to Two-Piece Propeller Shaft Replacement or One-Piece Propeller Shaft Replacement Service and Repair.
8. Plug the transmission oil cooler line connectors in the transmission case.
9. Remove the starter motor. Refer to Starter Replacement Service and Repair.
10. Support the transmission with a transmission jack.






11. Remove the torque converter access plug.
12. Remove the flywheel to torque converter bolts. Refer to Torque Converter Bolt Replacement Service and Repair.






13. Remove the two bolts and nut securing the transmission rear mount to the transmission.






14. Remove the two bolts securing the heat shield to the transmission.

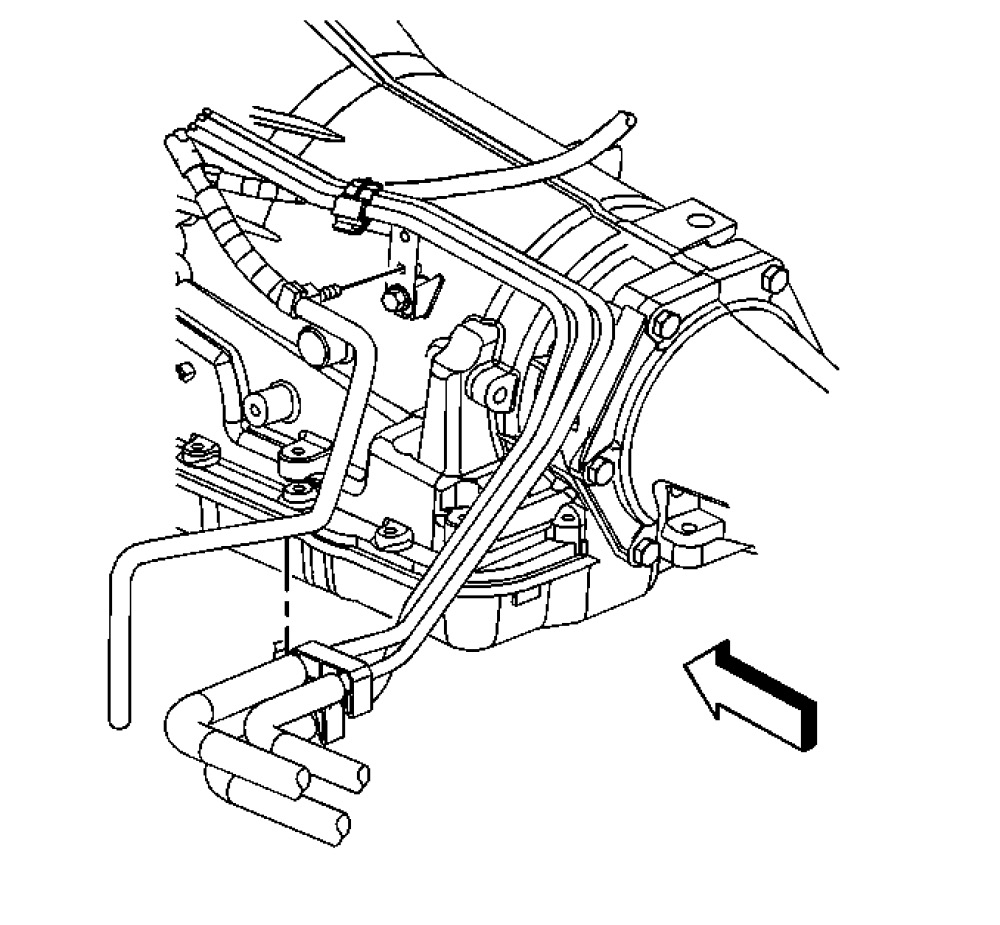

15. Remove the transmission vent hose, fuel lines, and the wiring harness from the transmission.

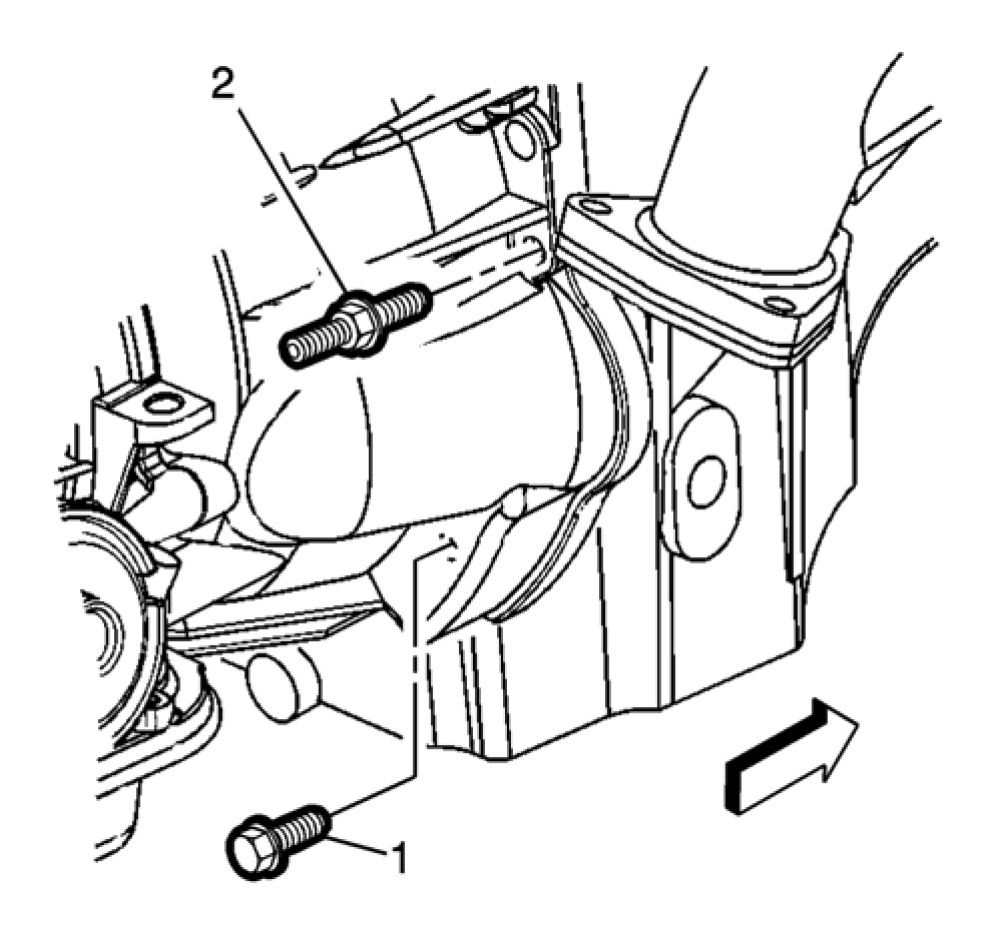

16. Remove the stud and the bolt securing the transmission to the engine.






17. Remove the six studs and one bolt securing the transmission to the engine.
18. Install the J 21366 onto the transmission bell housing to retain the torque converter.
19. Pull the transmission straight back.
20. Remove the transmission from the vehicle.
21. Flush the transmission oil cooler and cooling lines when you remove the transmission. Refer to Transmission Fluid Cooler Flushing and Flow Test Component Tests and General Diagnostics.

Installation Procedure

1. Install the J 21366 onto the transmission bell housing to retain the torque converter.
2. Support the transmission with a transmission jack.
3. Raise the transmission into place and remove the J 21366 from the transmission.
4. Slide the transmission straight onto the locating pins while lining up the marks on the flywheel and the torque converter.

The torque converter must be flush onto the flywheel and rotate freely by hand.






Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

5. Install six studs and one bolt securing the transmission to the engine.

Tighten
Tighten the studs and the bolt to 50 Nm (37 lb ft).






6. Install the stud and bolt securing the transmission to the engine.

Tighten
Tighten the stud and the bolt to 50 Nm (37 lb ft).

7. Install the flywheel to torque converter bolts. Refer to Torque Converter Bolt Replacement Service and Repair.






8. Install the torque converter access plug.






9. Install the transmission vent hose, fuel lines, and the wiring harness to the transmission.






10. Install the two bolts securing the heat shield to the transmission.

Tighten
Tighten the bolt to 17 Nm (13 lb ft).






11. Install the two bolts and nut securing the transmission rear mount to the transmission.

Tighten
Tighten the bolts and nut to 25 Nm (18 lb ft).

12. Remove the transmission jack from the transmission.
13. Install the starter motor. Refer to Starter Replacement Service and Repair.
14. Unplug the transmission oil cooler line connectors.
15. Connect the transmission oil cooler lines to the transmission. Refer to Oil Cooler Hose/Pipe Replacement Service and Repair.
16. If equipped with a transfer case, install the front propeller shaft. Refer to Front Propeller Shaft Replacement Service and Repair.
17. Install the rear propeller shaft. Refer to Two-Piece Propeller Shaft Replacement or One-Piece Propeller Shaft Replacement Service and Repair.
18. Install the shift cable end to the transmission shift lever ball stud. Refer to Shift Cable Replacement Service and Repair.
19. Unplug the oil level indicator tube opening in the transmission.
20. Install the transmission oil level indicator tube and seal to the transmission. Refer to Filler Tube Replacement Service and Repair.
21. Tighten the oil pan bolts and fill the transmission with transmission fluid. Refer to Automatic Transmission Fluid and Filter Replacement Procedures.

Important: It is recommended that the transmission adaptive pressure (TAP) information be reset. Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, the ECM, PCM or TCM will need to relearn the TAP values. Transmission performance may be affected as new TAP values are learned.

22. Reset the TAP values. Refer to Adapt Function Scan Tool Testing and Procedures.
23. Lower the vehicle.
