Front Drive Axle
>>

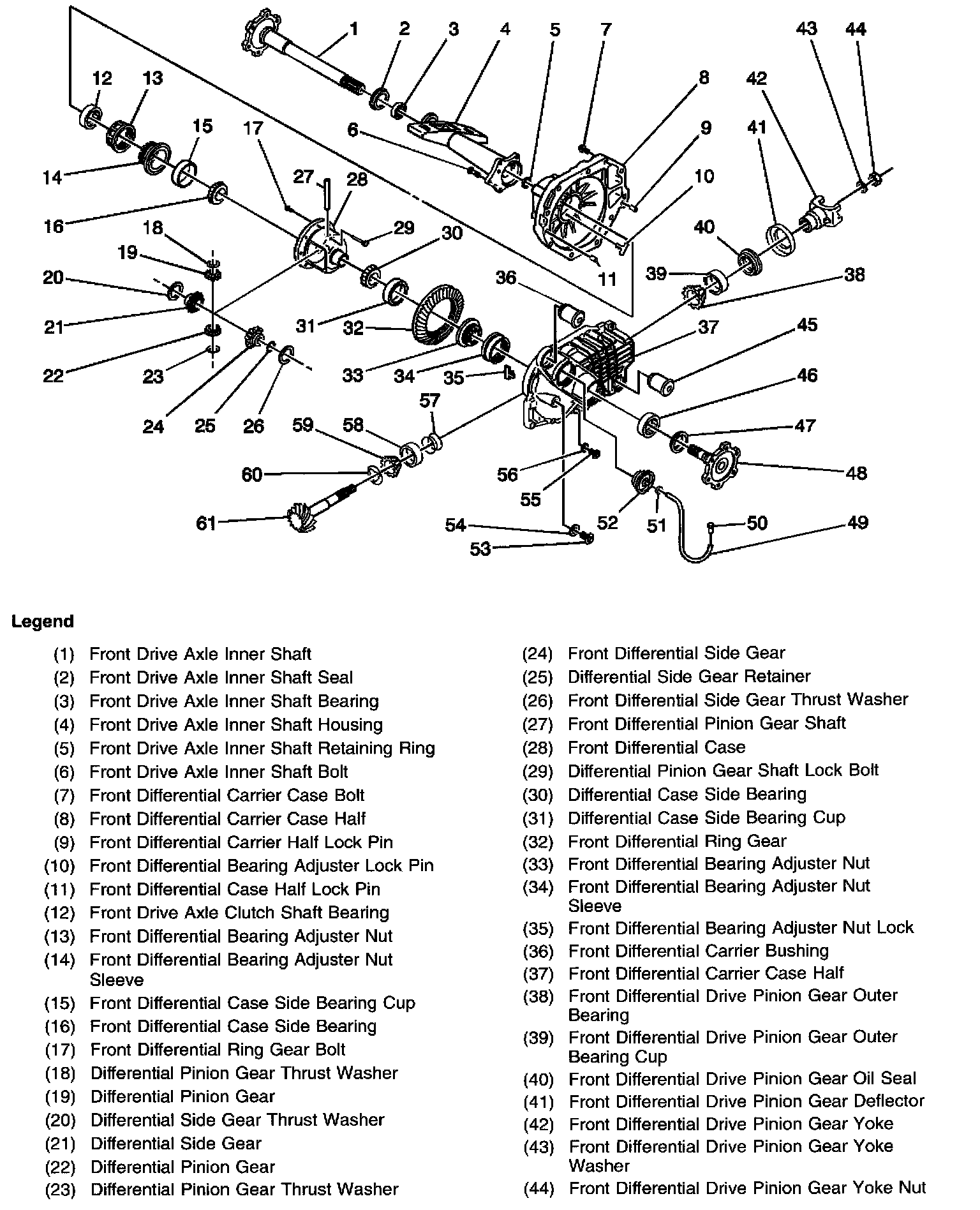

Front Drive Axle (8.25 Inch) (F4WD)
Front Drive Axle (8.25 Inch) (F4WD)
Front Drive Axle (8.25 inch) (F4WD)
Part 1 of 2
Part 2 of 2
