Home >> GMC >> 2000 >> K 3500 Truck 4WD V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Diagrams >> Connector Views >> NVG 246-NP8 (Two Speed Automatic) >> Transfer Case Shift Motor/Brake Connector (C1)

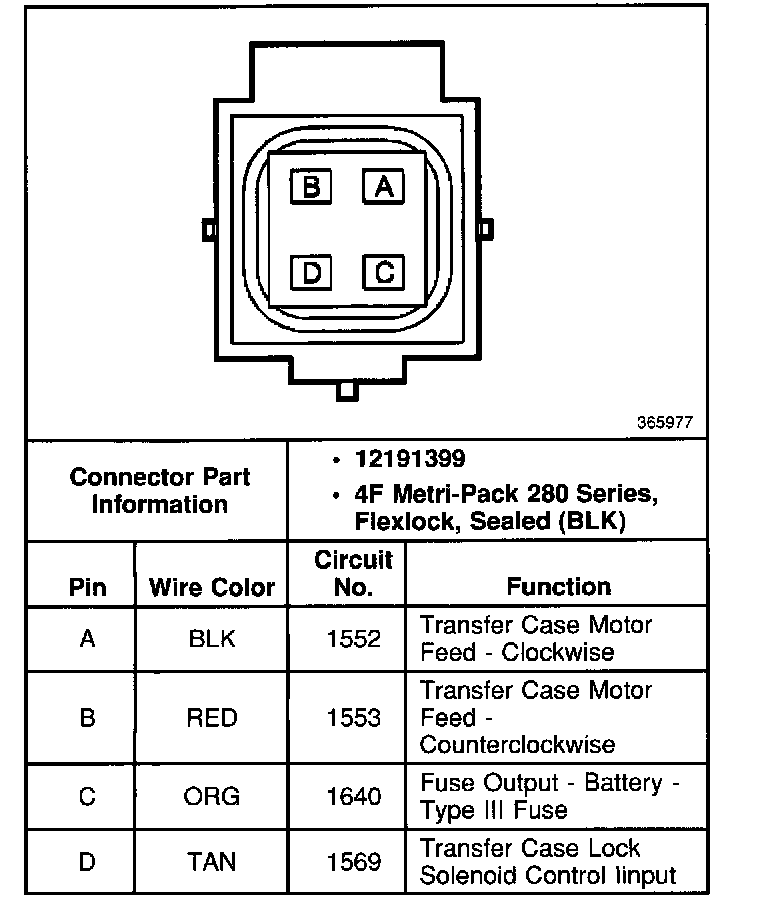

Transfer Case Shift Motor/Brake Connector (C1)
