4. Internal Components Assemble
^ Tools Required- J 5590 Installer
- J 8092 Driver Handle
- J 29169 Bearing Installer/Remover
- J 33832 Bearing Installer/Remover
- J 37668 Seal Installer
1. Connect the oil pump pickup to the pickup tube.
2. Install the following components to the oil pump housing:
^ The pickup tube
^ The oil pump pickup
^ The retainer
3. Install the oil pump front cover. Make sure that the word TOP faces the front of the front case.
4. Assemble the oil pump pins and the oil pump spring.
^ Make sure that the flats of the oil pump pins are facing rearward, toward the output end of the shaft.
^ Place the oil pump spring between the two pins.
5. Install the oil pump pin and spring assembly into the oil pump bore in the mainshaft.
6. Lubricate the oil pump housing assembly. Use Dexron(R) III automatic transmission fluid or equivalent.
7. Install the oil pump housing to the mainshaft. Make sure that the oil pump pins ride against the inside of the pump housing.
8. Install the oil pump rear cover. Make sure that the words TOP REAR on the cover face the rear of the transfer case.
(Make sure that the word TOP on the front and the rear covers are on the same side.)
9. Install the oil pump retainer with the tabs facing the front of the transfer case.
10. Install the oil pump retainer bolts.
Rotate the mainshaft while tightening the bolts in order to prevent the pump from binding.
^ Tighten the bolts to 6 Nm (55 inch lbs.).
Notice: Refer to Fastener Notice in Service Precautions.
11. Inspect the oil pump operation on the mainshaft. The mainshaft must turn freely within the oil pump. If binding occurs, loosen the four bolts and retighten the bolts.
12. Install the compression spring to the lockup collar.
13. Install the lockup hub that compresses the compression spring.
14. Install the synchronizer hub snap ring.
15. Use the J 37668 in order to install the rear output shaft seal to the rear bearing retainer.
16. Use the J 8092 and the J 33832 in order to install the front output bearing to the front case.
17. Install the front output bearing snap ring to the front case.
18. Use the J 37668 in order to install the front output shaft seal to the front case.
19. Use the J 8092 and the J 33832 in order to install the rear output bearing to the rear case.
20. Use the J 8092 and the J 29169 in order to install the front input bearing to the front case.
21. Install the front input bearing snap ring to the front case.
22. Install the following components to the front case:
22.1. The selector
22.2. The detent spring
22.3. The detent roller
23. Install the selector shaft through the case. Align the selector shaft with the spline on the selector.
24. Connect the retainer clip to the selector shaft.
25. Install the power take off drive gear with the large flange side facing the planetary gears and the input carrier assembly to the front case.
26. Install the input carrier snap ring to the input carrier.
27. Use the J 37668 in order to connect the input shaft front oil seal to the front case.
28. Install the annulus gear to the front case.

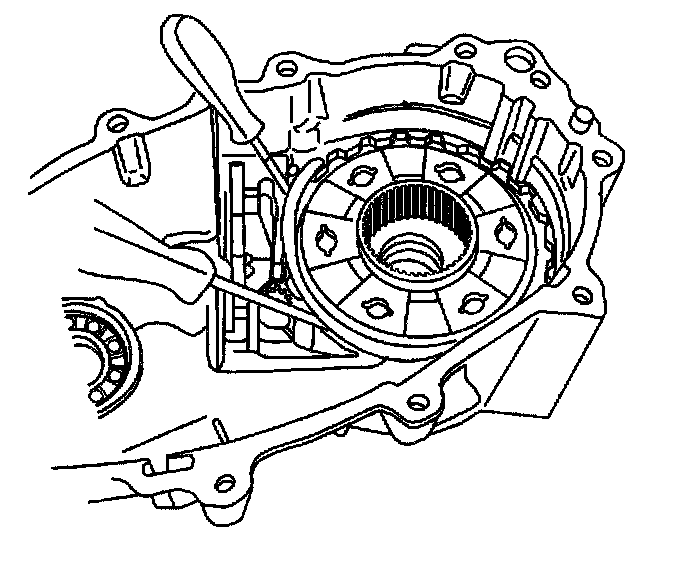

29. Install the annulus gear snap ring to the front case.
30. Install the range fork and the shaft hub.
^ Align the shift hub to the carrier assembly.
^ Align the shift fork pin to the slot in the selector.
31. Install the shift rail through the range fork and into the boss in the front case.

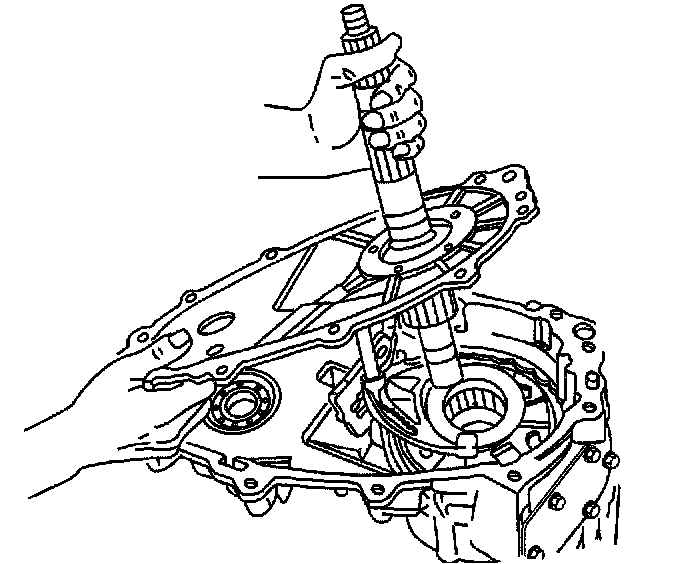

32. Install the mainshaft and the oil pump assembly into the carrier assembly.
Check the one-way orientation of the hub to the shaft. Line up the wide spline of the shaft to the wide shot in the hub.
33. Install the front output shaft to the front output bearing.

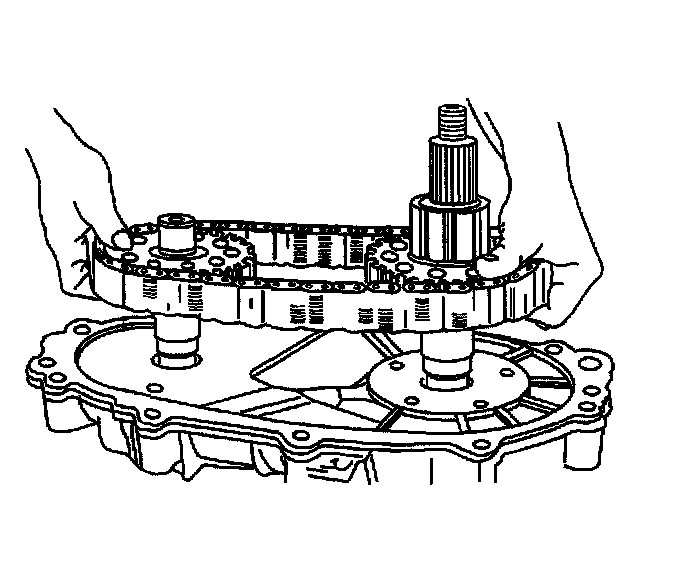

34. Install the following components to the mainshaft and the front output shaft, as an assembly:
^ The drive gear
^ The driven gear
^ The drive chain
Important: Driven gear is stamped "rear" be sure to install the driven gear as it was disassembled.
35. Note the orientation of the master link. Install in the same position it was disassembled.
36. Install the flat washer to the front output shaft.
37. Install the synchronizer assembly and the mode shift fork.
^ Align the synchronizer assembly to the mainshaft drive gear.
^ Align the mode fork to the shift rail.
38. Install the synchronizer hub to the synchronizer assembly.
39. Install the clutch coil housing and the clutch coil housing snap ring to the mainshaft. The flat side of the snap ring must face the rear of the assembly.
40. Install the shift rail spring to the shift rail.
41. Install the clutch coil to the rear case.
42. Install the clutch coil nuts to the clutch coil.
^ Tighten the clutch coil nuts to 10 Nm (84 inch lbs.).
43. Install the clutch coil wire through the rear case.
44. Connect the clutch coil wire connector to the clutch coil wire.
45. Apply RTV GM P/N 12345739 or equivalent to the case sealing surfaces.
46. Attach the rear case half to the front case half.
Important: If equipped with a bracket, the bracket bolt is to be installed at 12 o'clock.
47. Install the case bolts to case halves.
^ Tighten the case bolts to 41 Nm (30 ft. lbs.).
48. Install the rear output bearing snap ring to the mainshaft. The flat side of the snap ring must face the rear of the assembly.
Important: The speedometer tone wheel is important to the proper operation of the following systems:
^ The antilock braking system
^ The speedometer/odometer
^ The cruise control
^ The PCM
Do not damage the speedometer tone wheel when installing it.
49. Use the J 5590 in order to install a new speedometer tone wheel to the mainshaft.
