S15/T15 Jimmy 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Automatic Level Control Air Compressor
Automatic Level Control Air Compressor

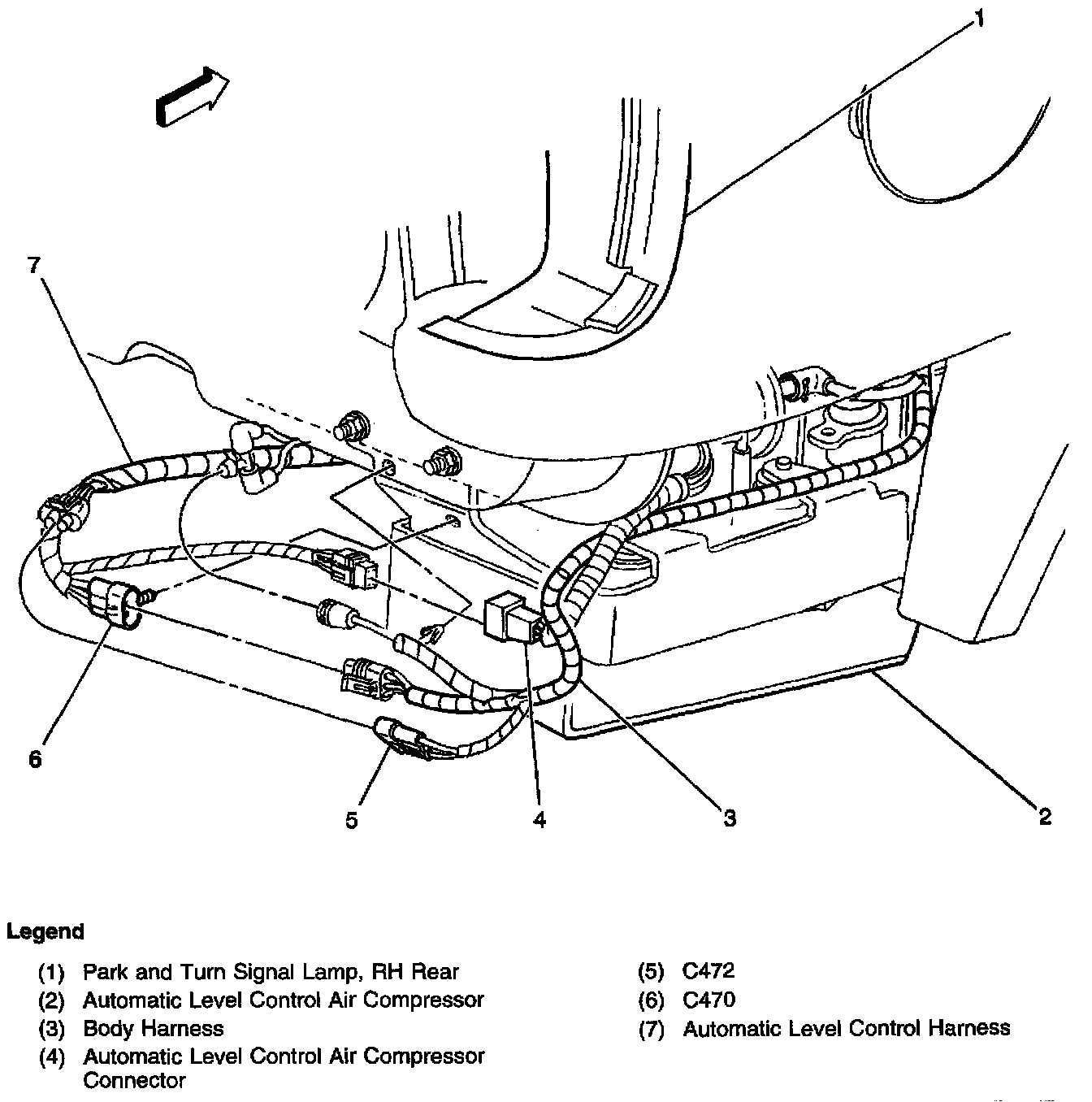

Harness Routing Views (Automatic Level Control Air Compressor):
