Turn Signal Cancel Cam & Upper Bearing Inner Race - Assemble

- Tools Required
- J 23653-SIR Lock Plate Compressor





1. Lubricate the following parts with synthetic grease:
- The inner race (1).
- The lower brass surface of the turn signal cancel cam assembly (4).

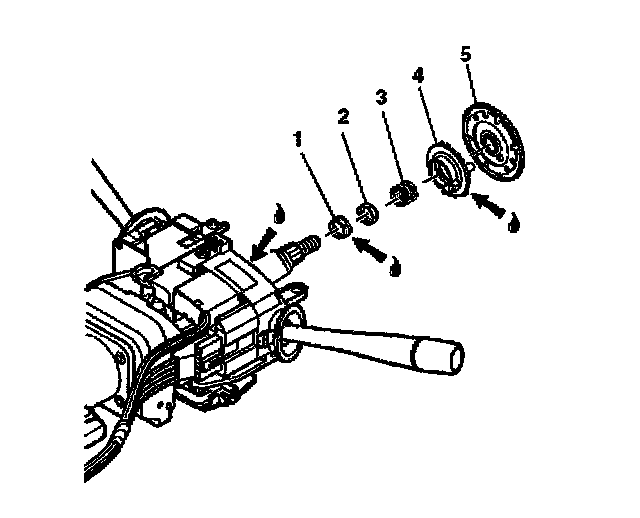

2. Install the following parts onto the steering shaft assembly:
- The inner race (1)
- The upper bearing inner race seat (2)
- The upper bearing spring (3)
- The turn signal cancel cam assembly (4)
- The shaft lock shield assembly (5)





3. Compress the shaft lock shield assembly (2) using J 23653-SIR.
4. Install the new bearing retainer (1) onto the steering shaft assembly.
5. Firmly seat the bearing retainer (1) into the groove on the steering shaft assembly.
6. Remove J 23653-SIR from the steering shaft assembly.
7. Install the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil - Assemble - Off Vehicle (Column Shift) or Inflatable Restraint Steering Wheel Module Coil - Assemble - Off Vehicle (Floor Shift).
