GMC
>>
2000
>>
S15/T15 Jimmy 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

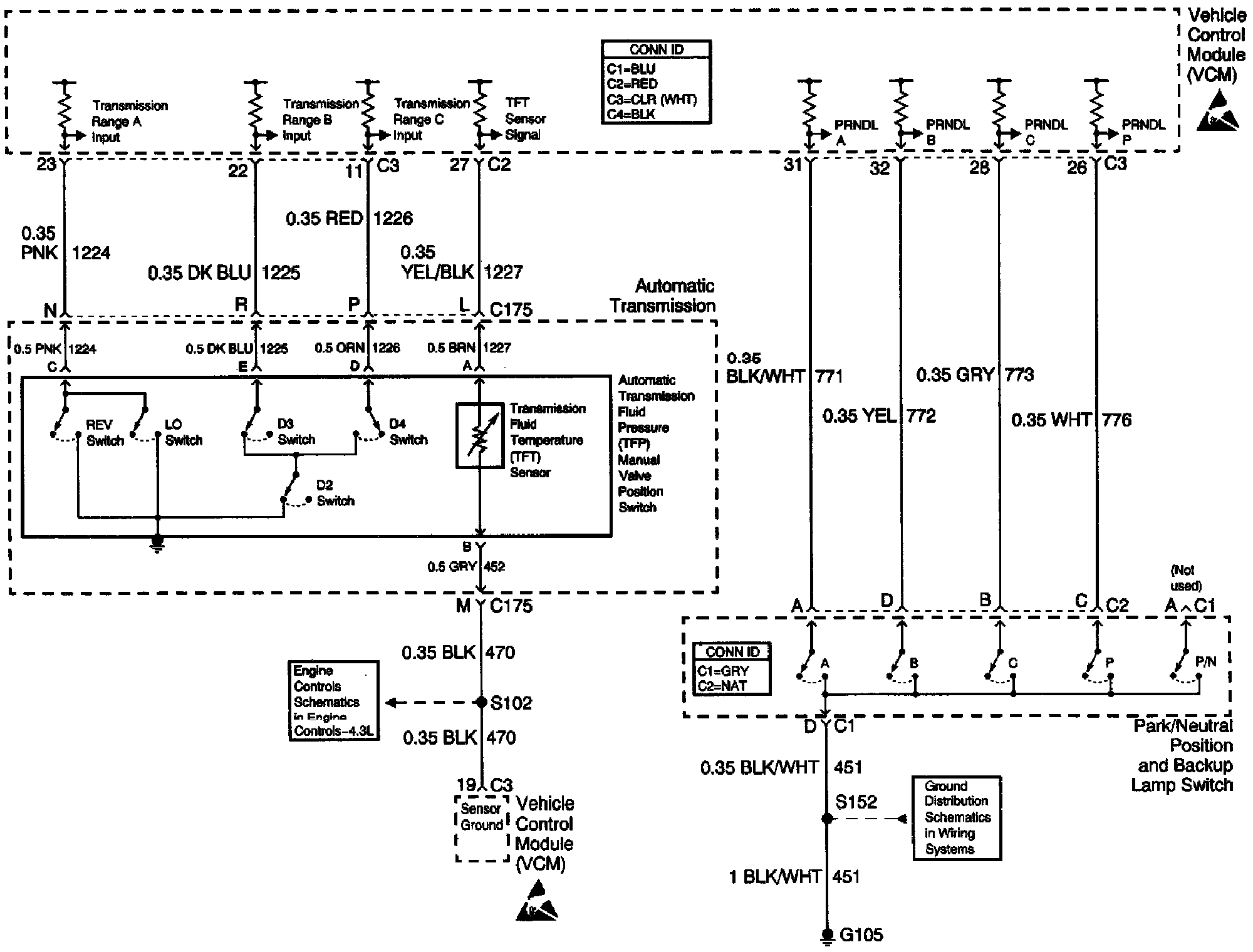

Switch Inputs and PNP Switch
Switch Inputs and PNP Switch
