Coolant Reservoir: Service and Repair

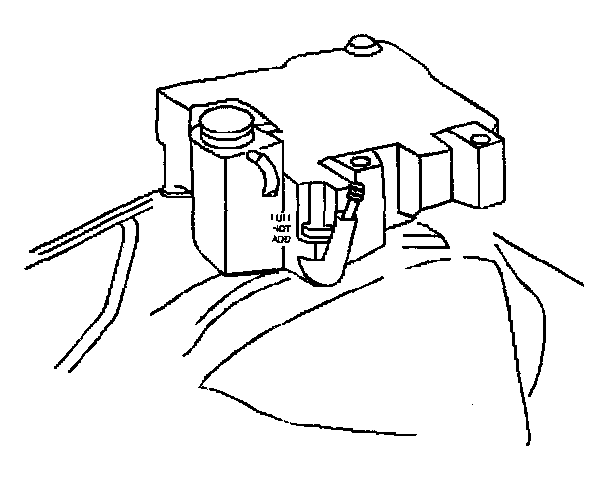

Coolant Recovery Reservoir Replacement

Removal Procedure





1. Remove the PCM and set it aside.

Important: Do not disconnect wiring harness to PCM.

2. Remove the hose from the coolant recovery reservoir.





3. Remove the coolant recovery reservoir retaining nuts.





4. Remove the coolant recovery reservoir.
5. Remove the coolant from the reservoir.

Installation Procedure





1. Install the coolant recovery reservoir.





Notice: Refer to Fastener Notice in Service Precautions.

2. Tighten the reservoir retaining nuts.
^ Tighten the reservoir retaining nuts to 8 - 11 Nm (6 - 8 ft. lbs.)





3. Install the hose to the coolant recovery reservoir.
4. Install the PCM.
5. Add coolant to reservoir.
