Power Windows - Inoperative - Passenger Door (Rear Door(s))

POWER WINDOW INOPERATIVE - PASSENGER DOOR (REAR DOOR(S))

TEST

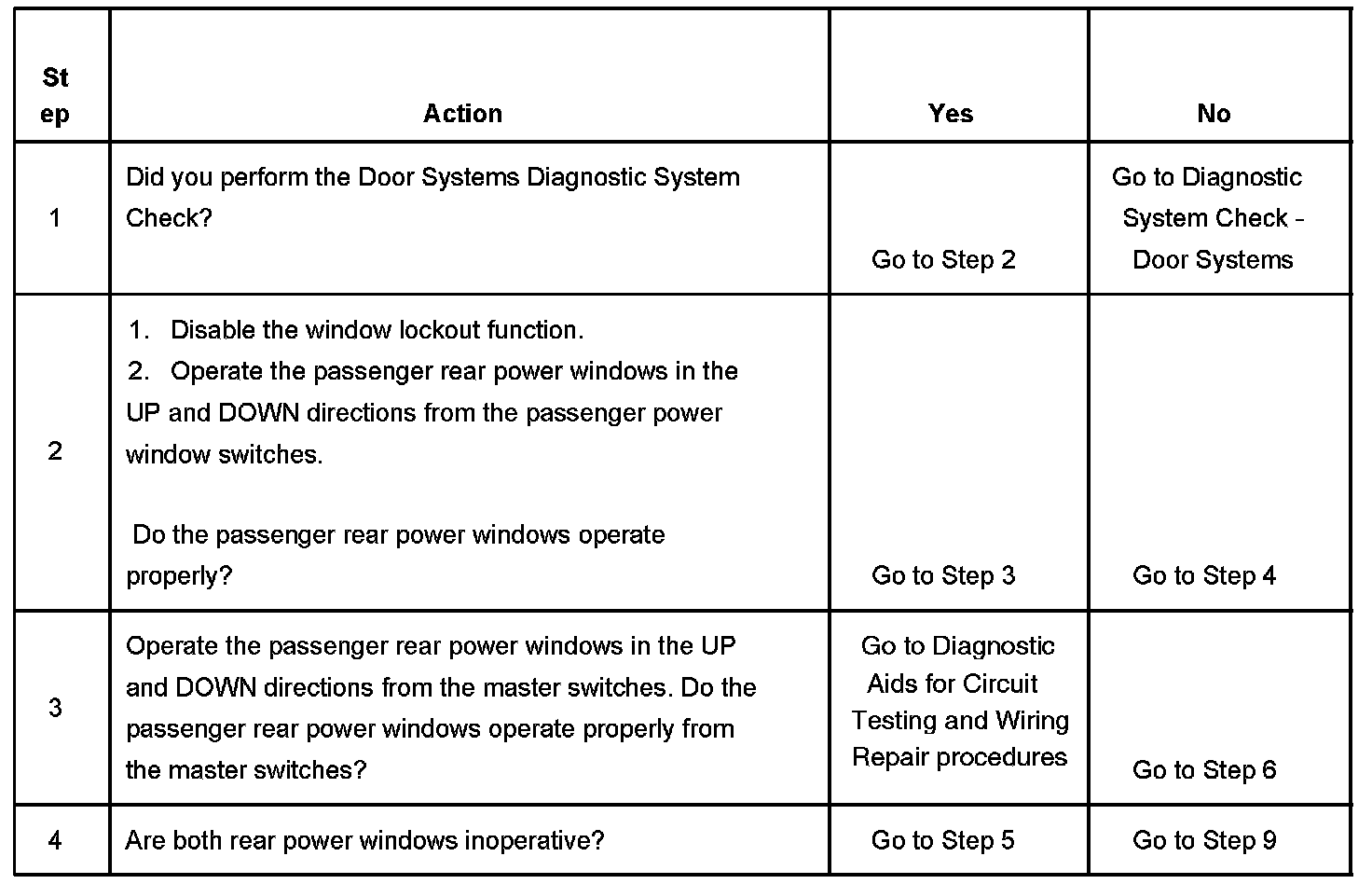

Steps 1 - 4:

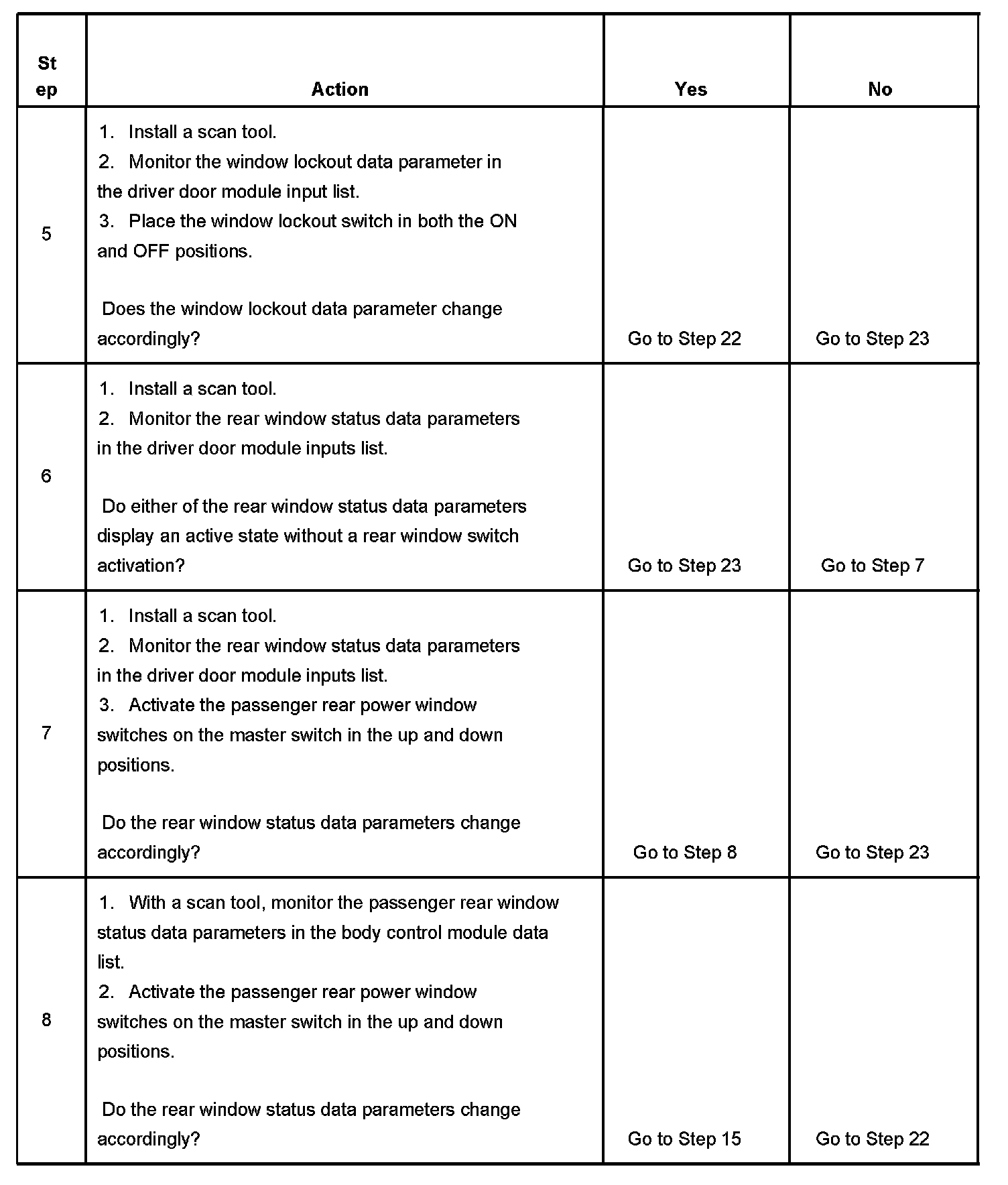

Steps 5 - 8:

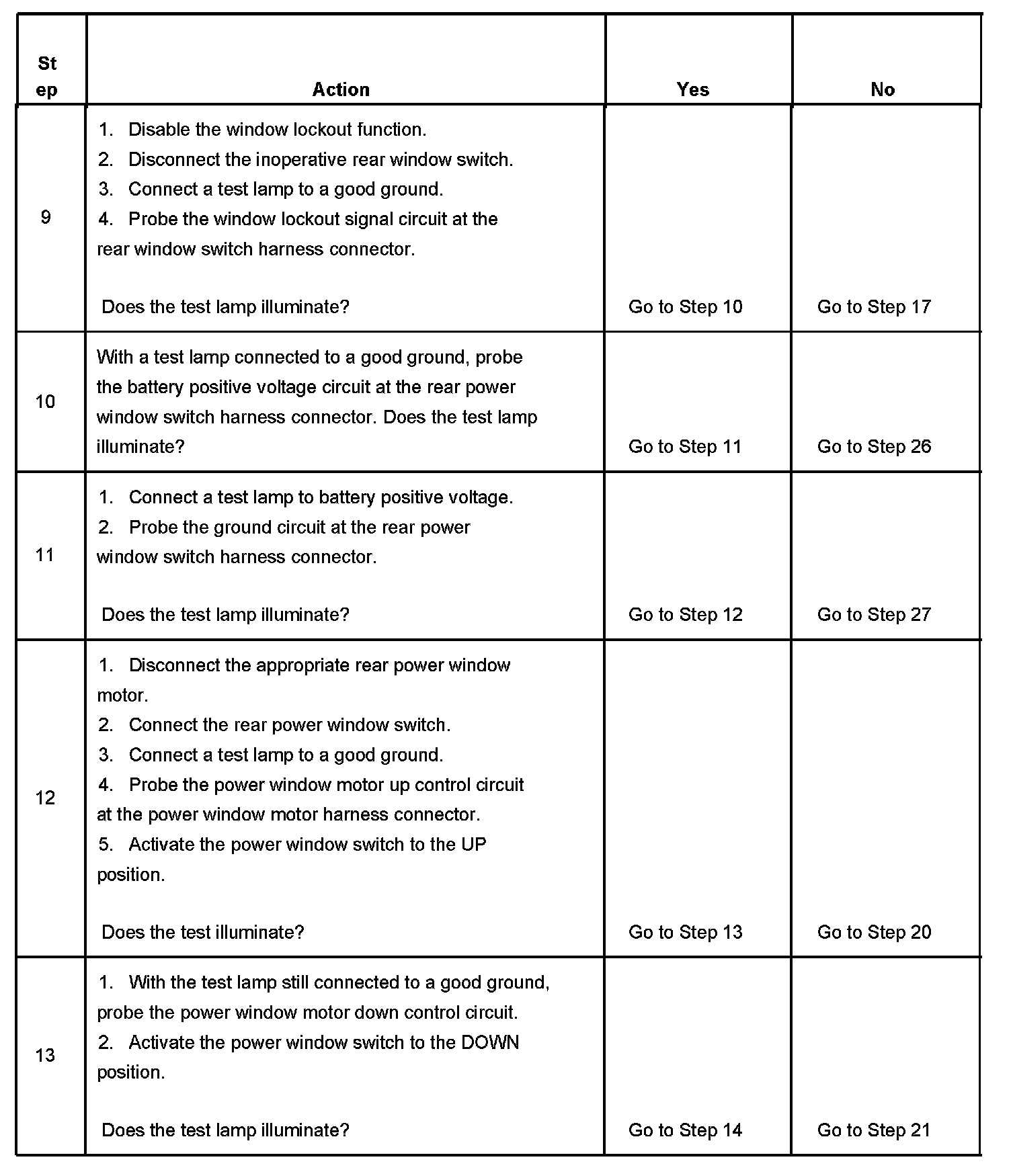

Steps 9 - 13:

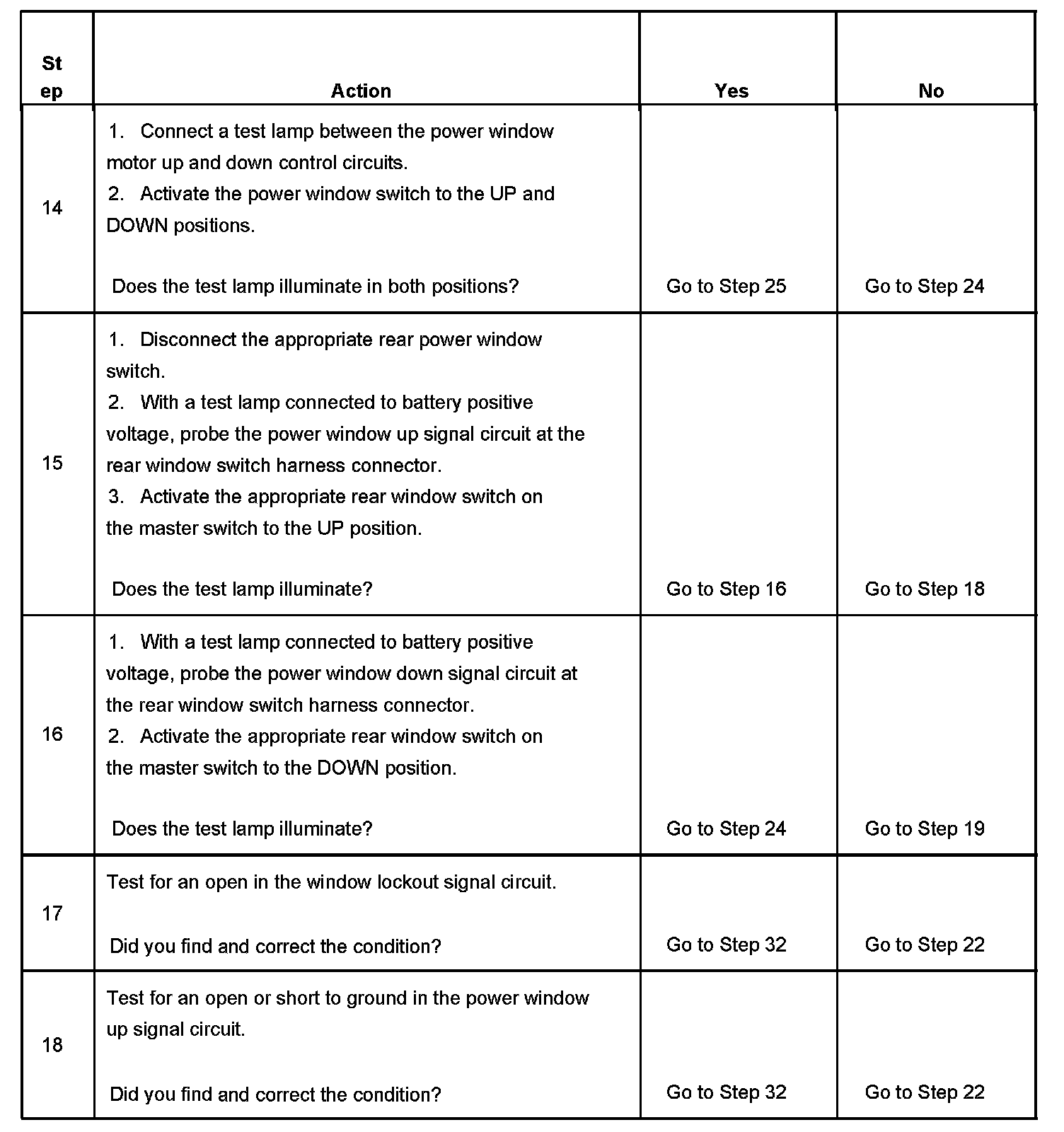

Steps 14 - 18:




Steps 19 - 25:




Steps 26 - 32:
