Locations
>>
Automatic Control
>>
Instrument Panel Carrier, Right Side
Instrument Panel Carrier, Right Side

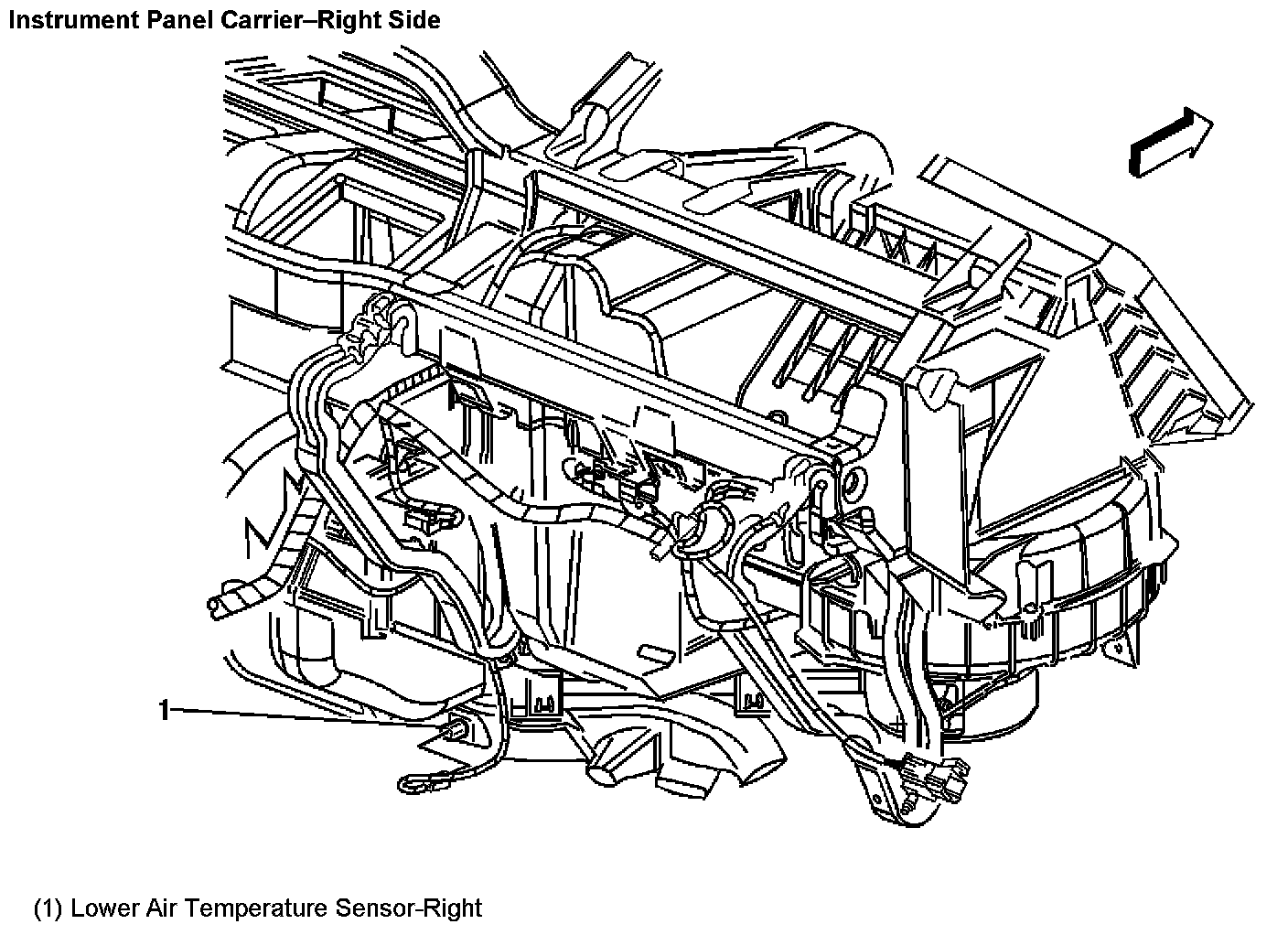

Instrument Panel Carrier - Right Side:

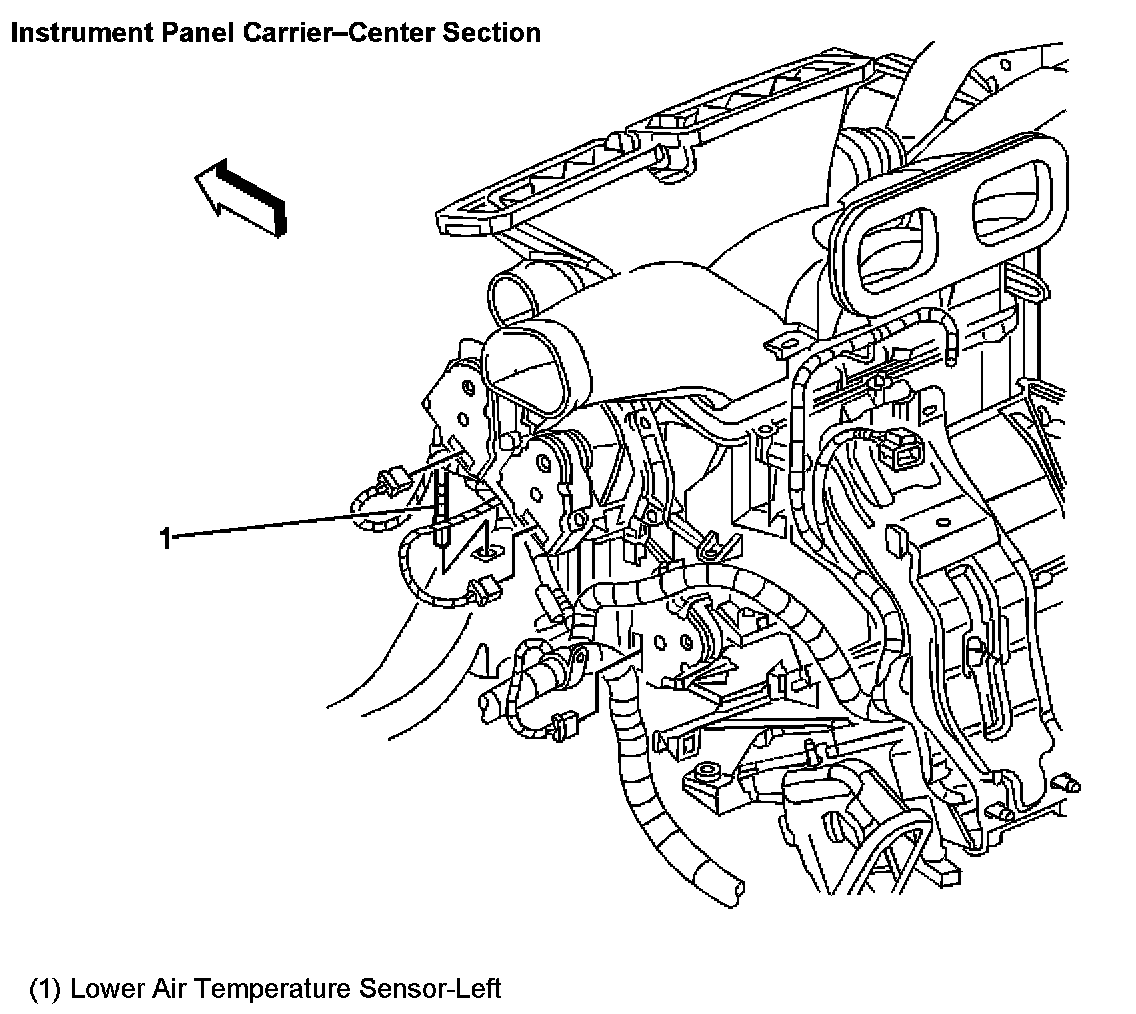

Instrument Panel Carrier - Center Section:

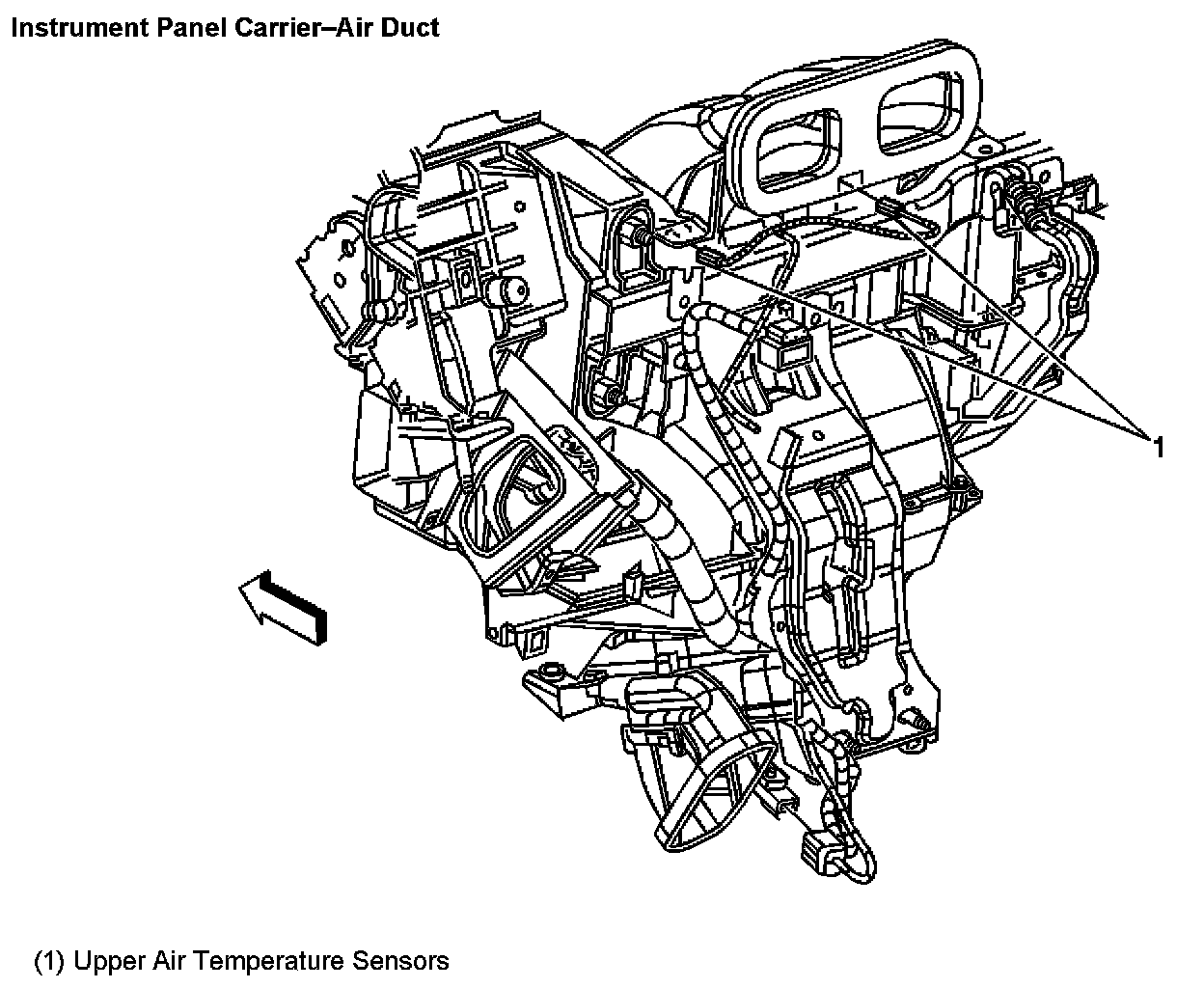

Instrument Panel Carrier-Air Duct:

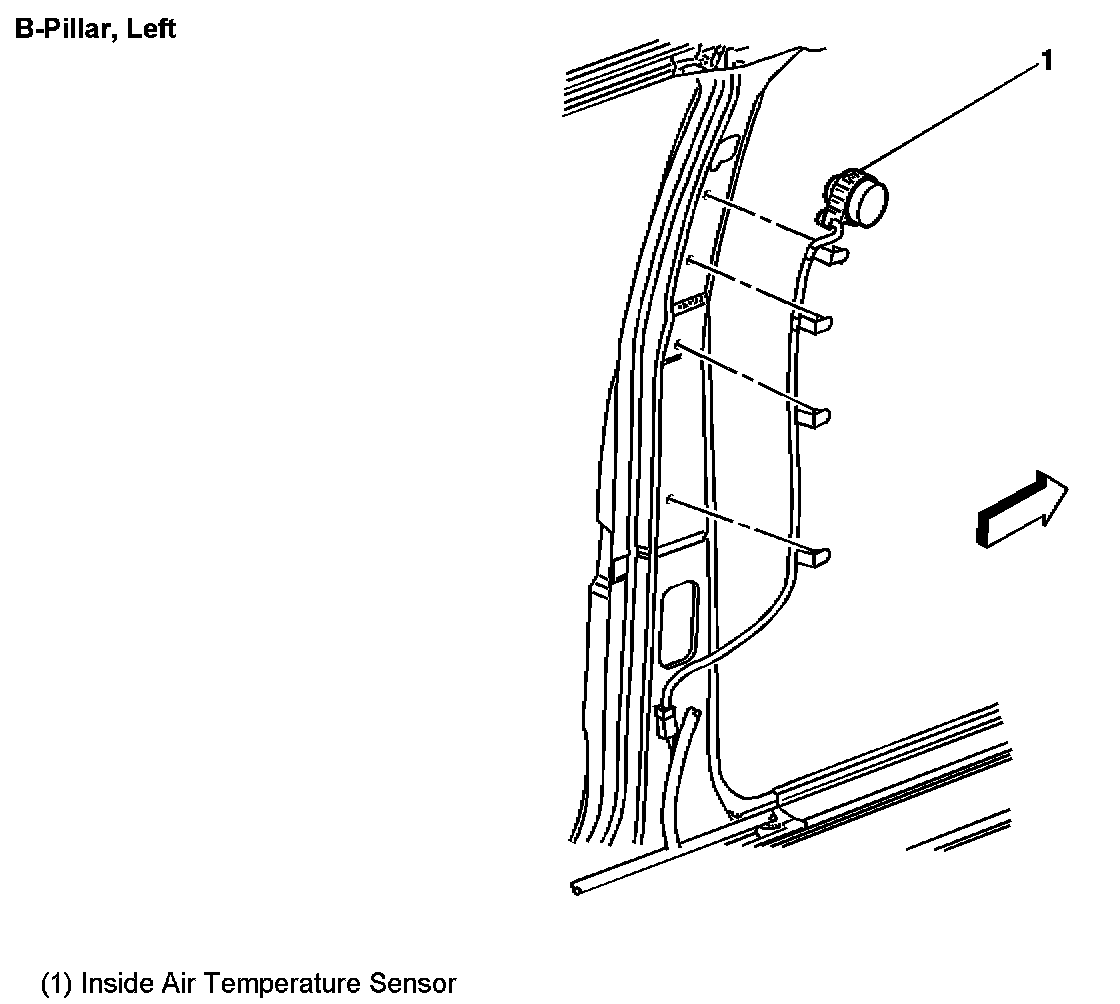

B-Pillar, Left:
