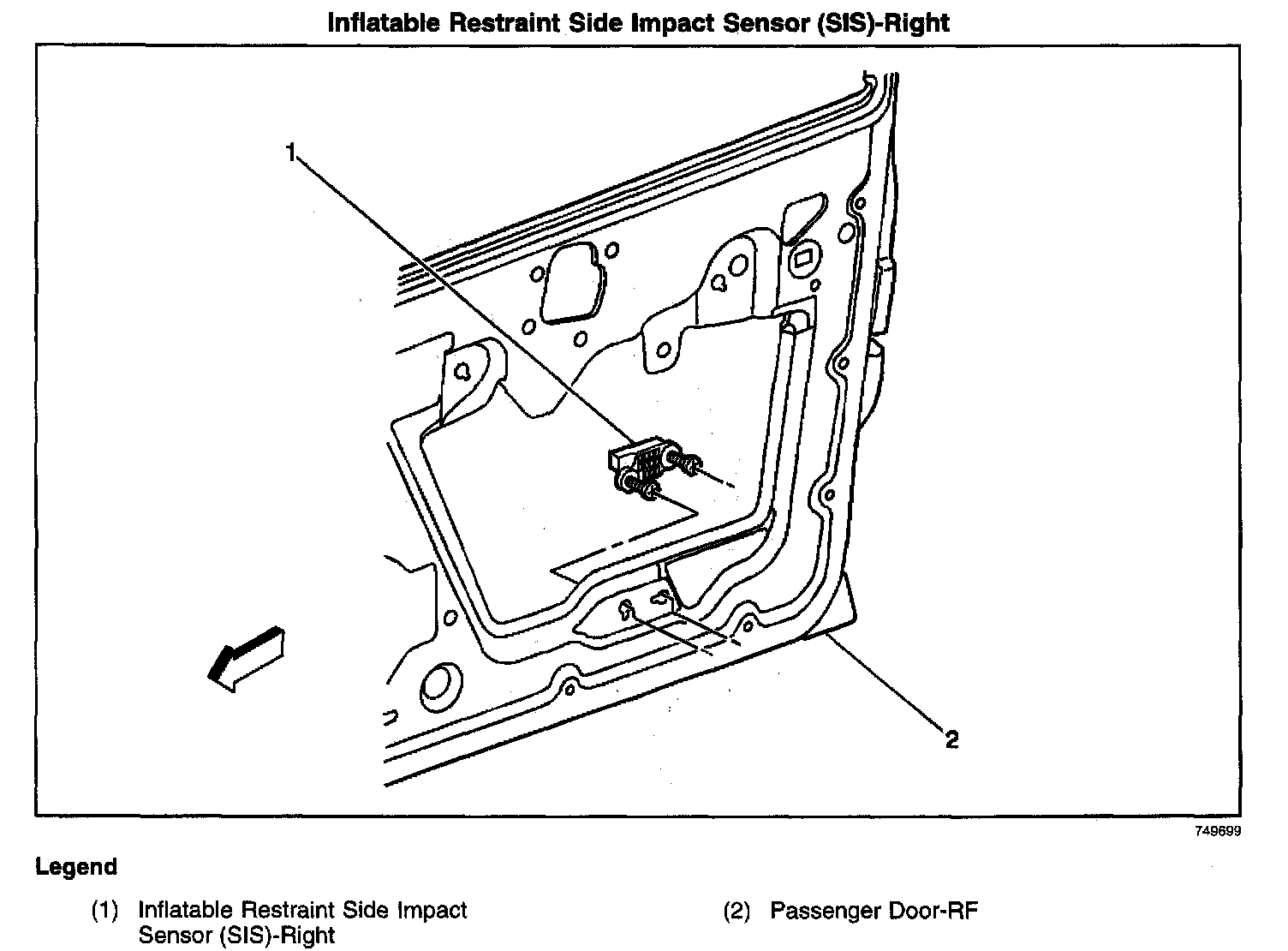

Inflatable Restraint Side Impact Sensor (SIS)-Right

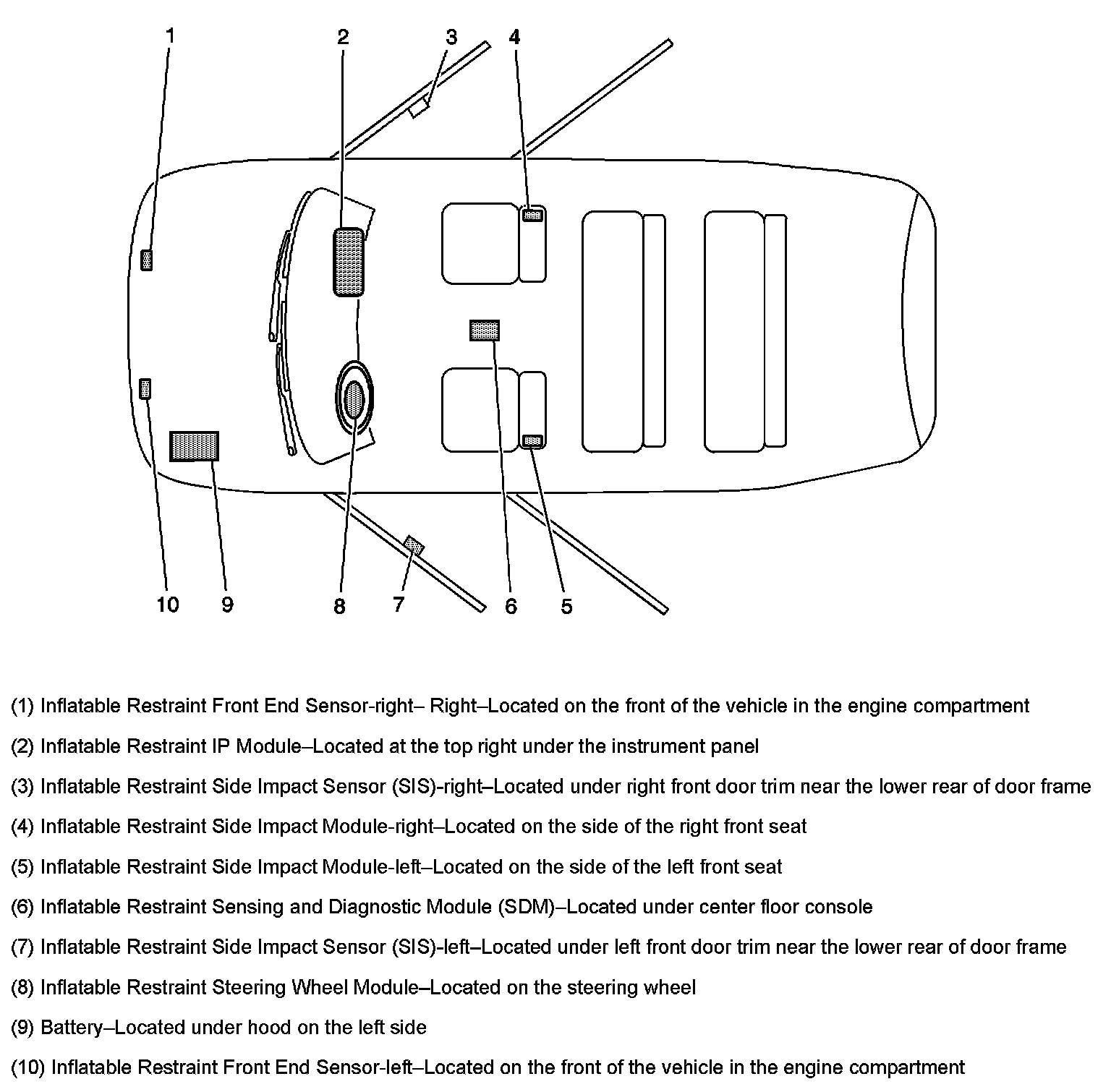

Locations View:

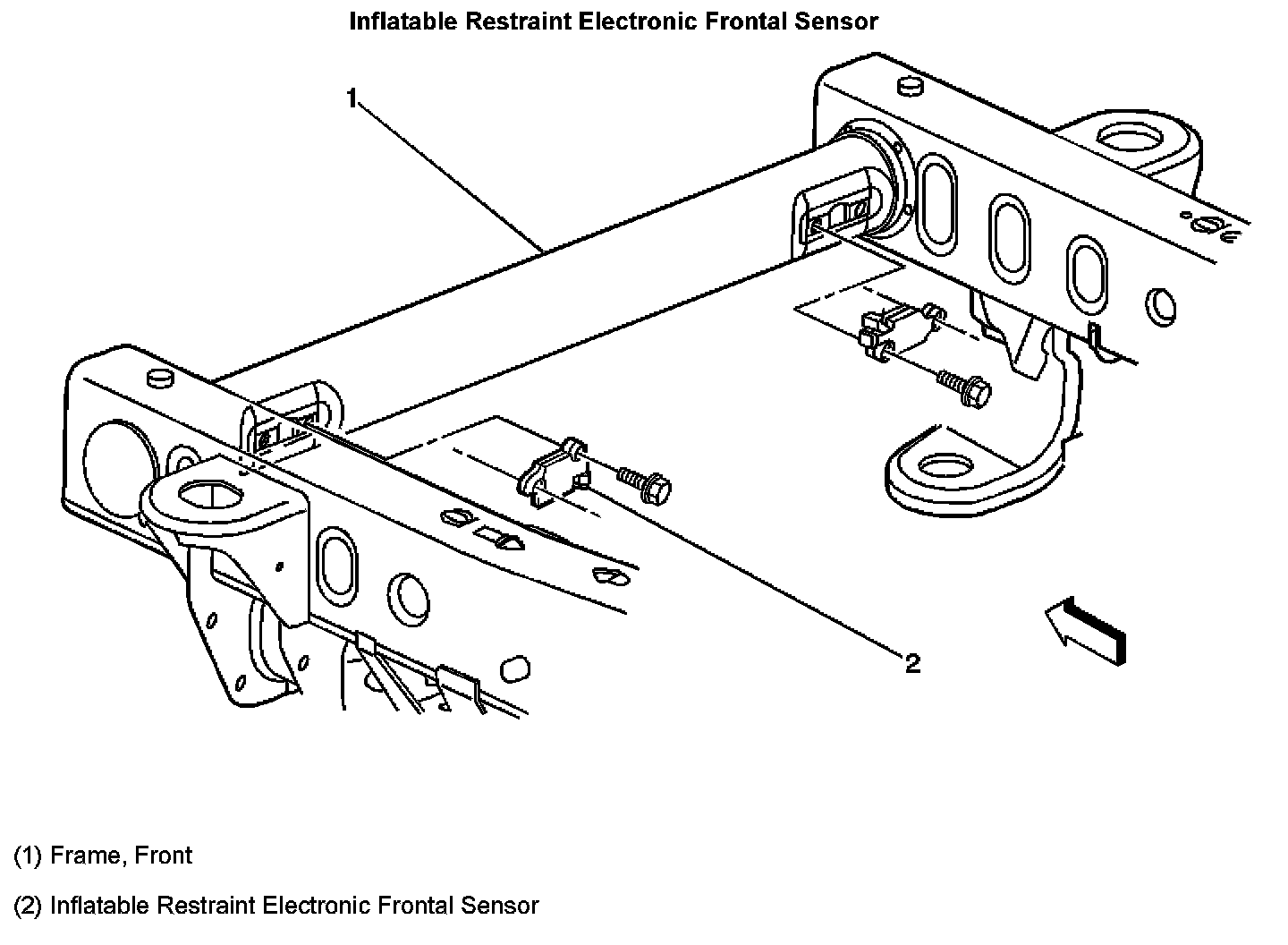

Inflatable Restraint Electronic Frontal Sensor:
