Trunk / Liftgate Switch: Diagrams

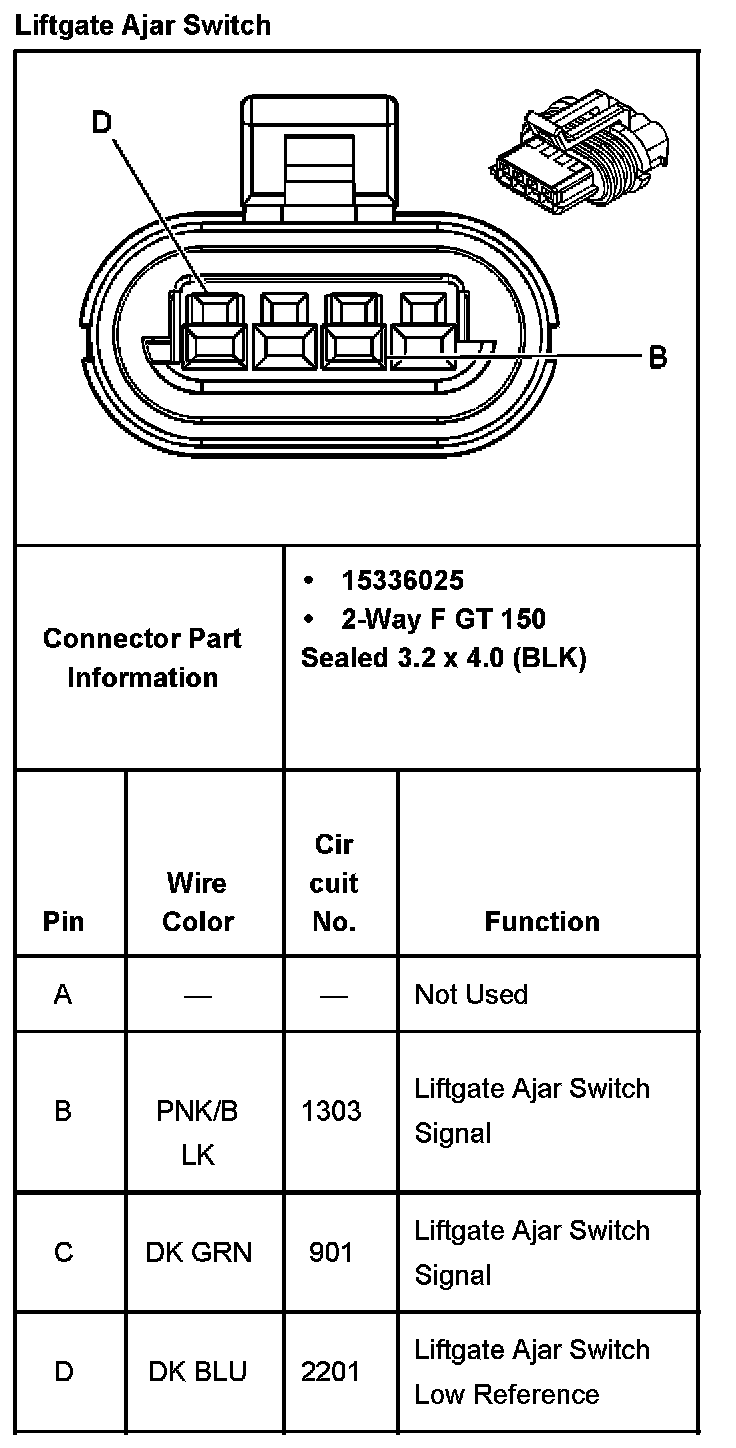

Liftgate Ajar Switch:

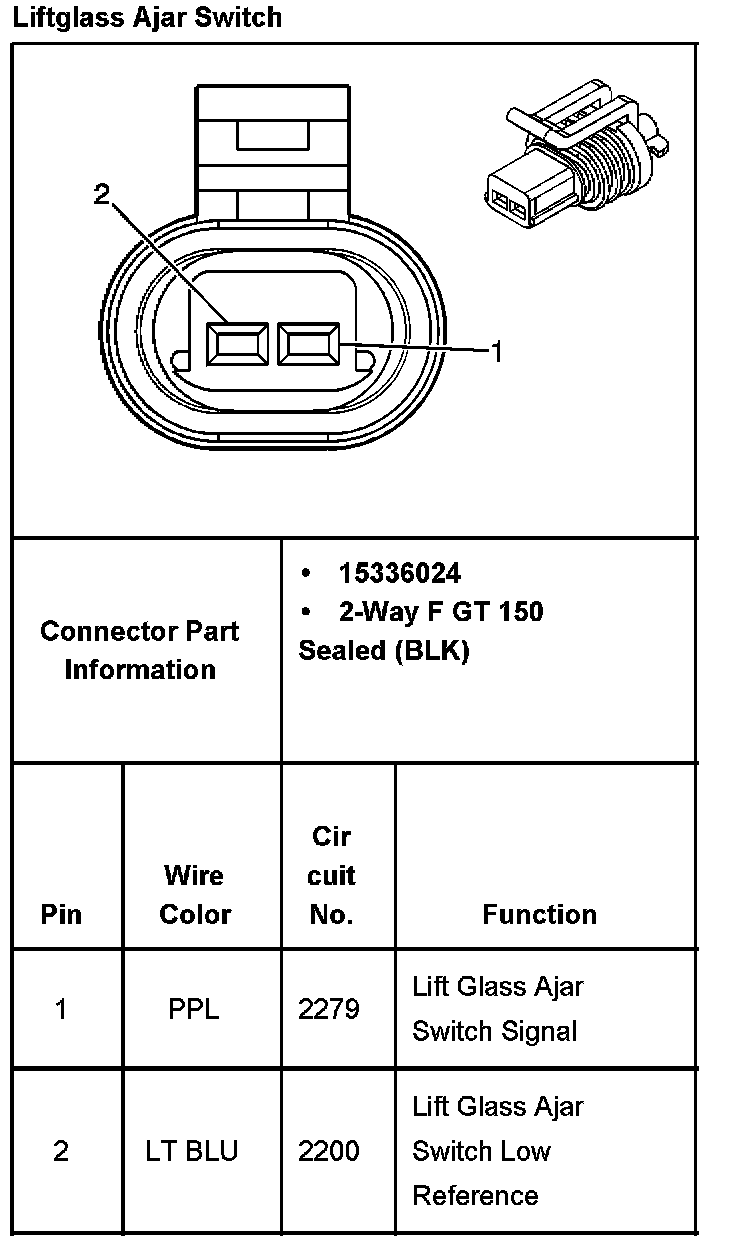

Liftglass Ajar Switch:

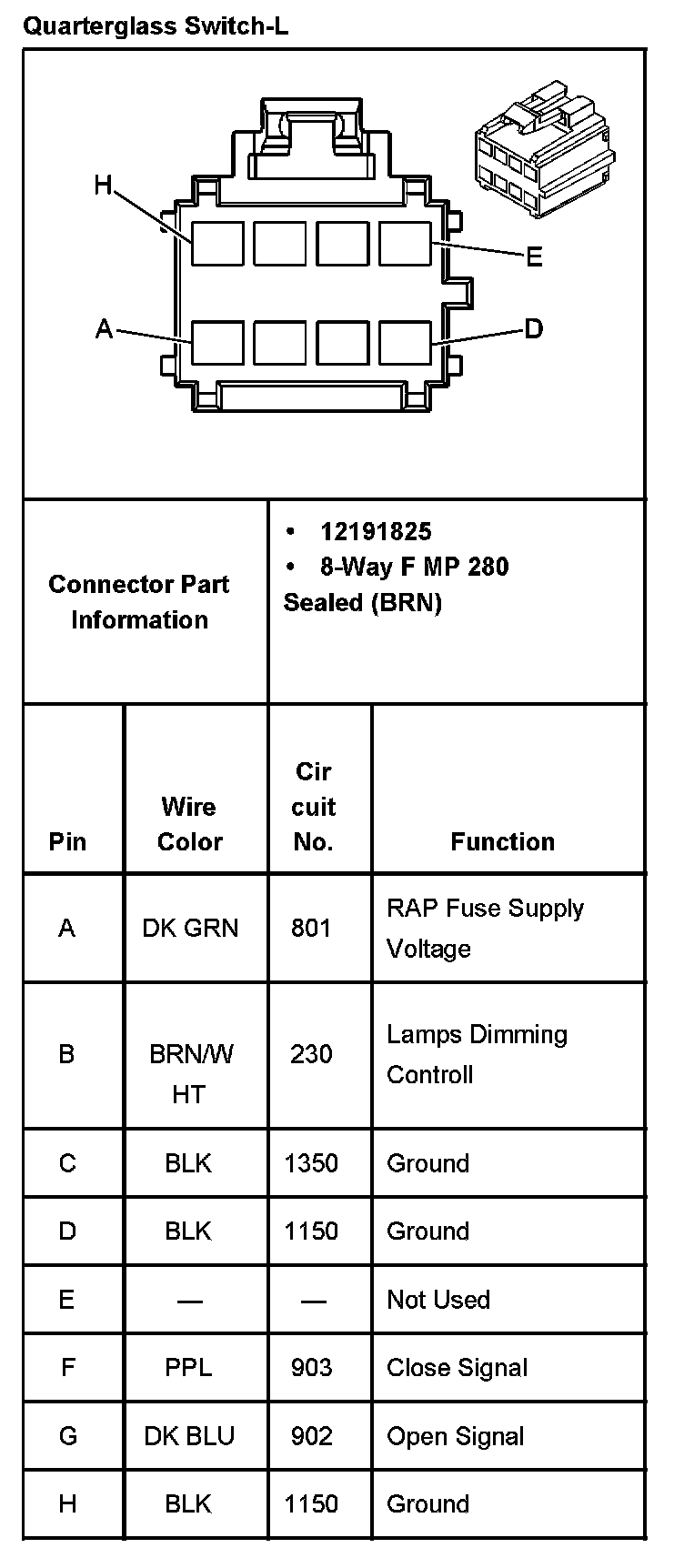

Quarterglass Switch - L:

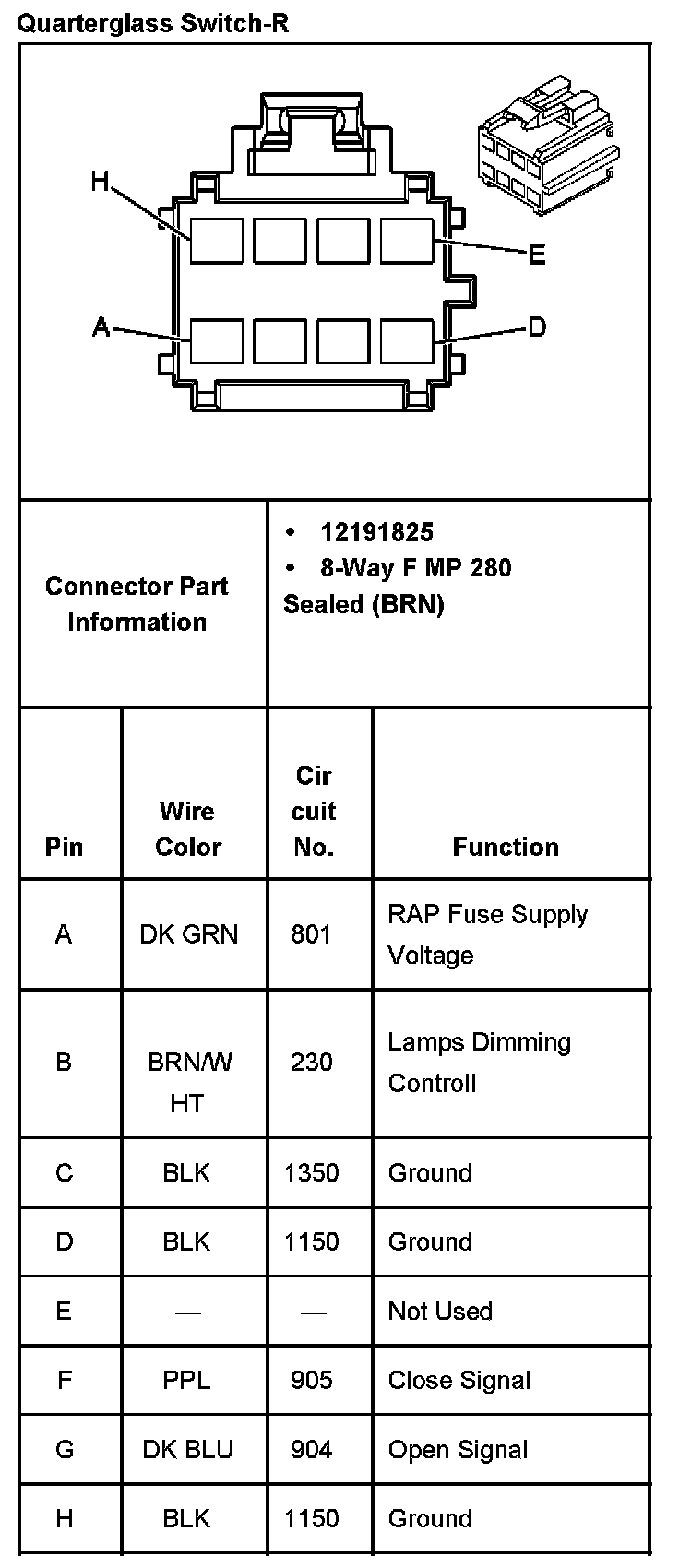

Quarterglass Switch - R:
