Home >> GMC >> 2003 >> Envoy 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Windshield Washer Switch >> Diagrams

Windshield Washer Switch: Diagrams

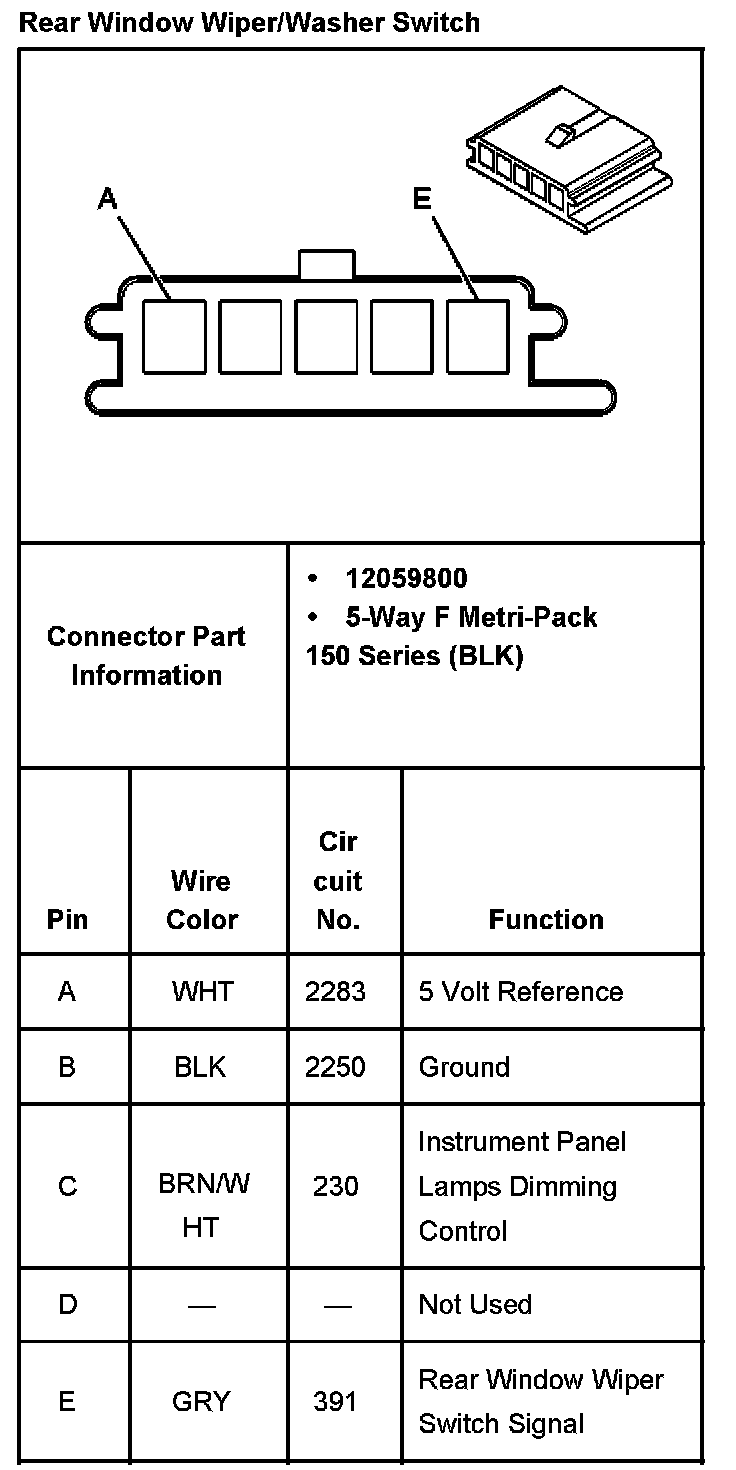

Rear Window Wiper/Washer Switch:

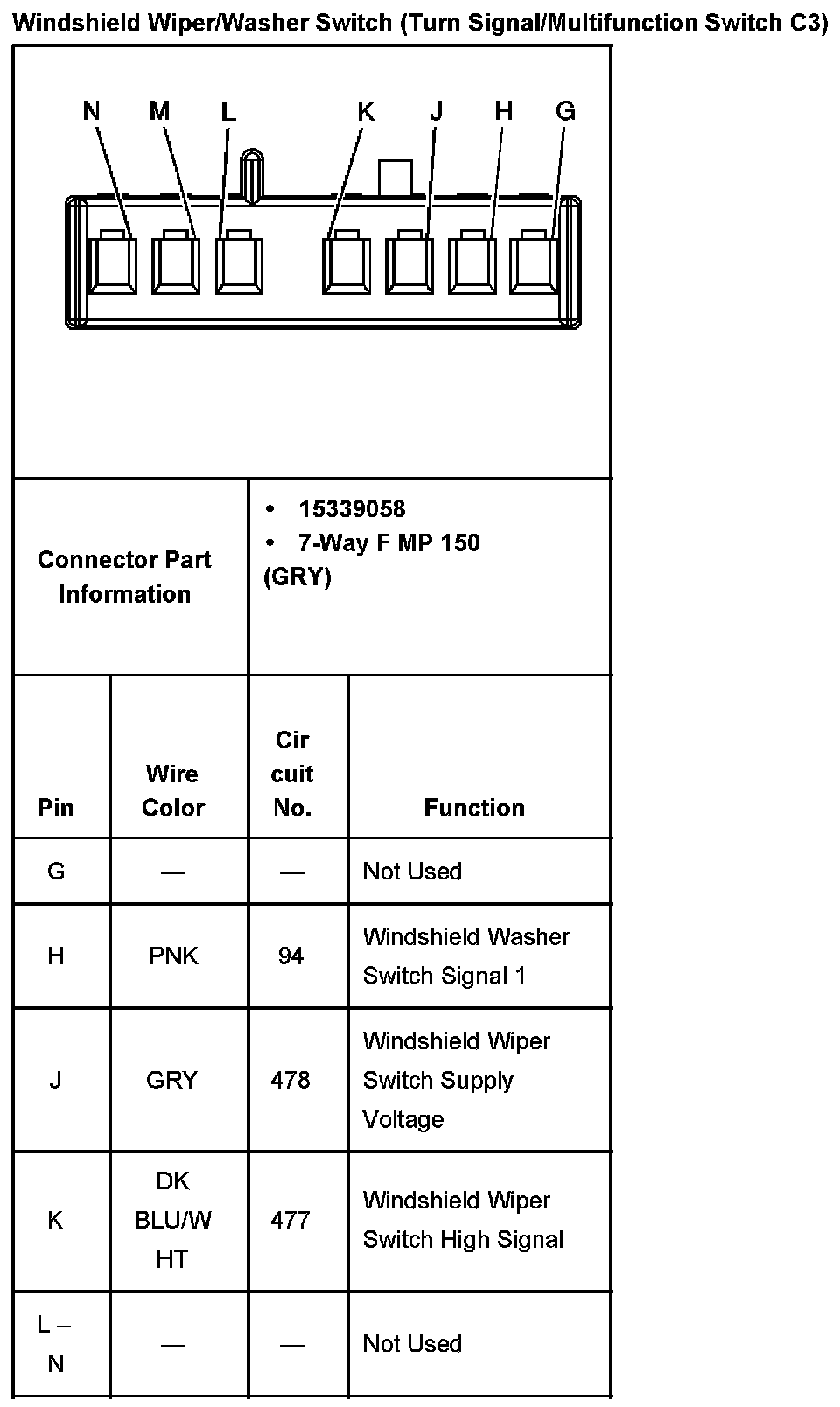

Windshield Wiper/Washer Switch (Turn Signal/Multifunction Switch C3):
