Seat Temperature Sensor: Diagrams

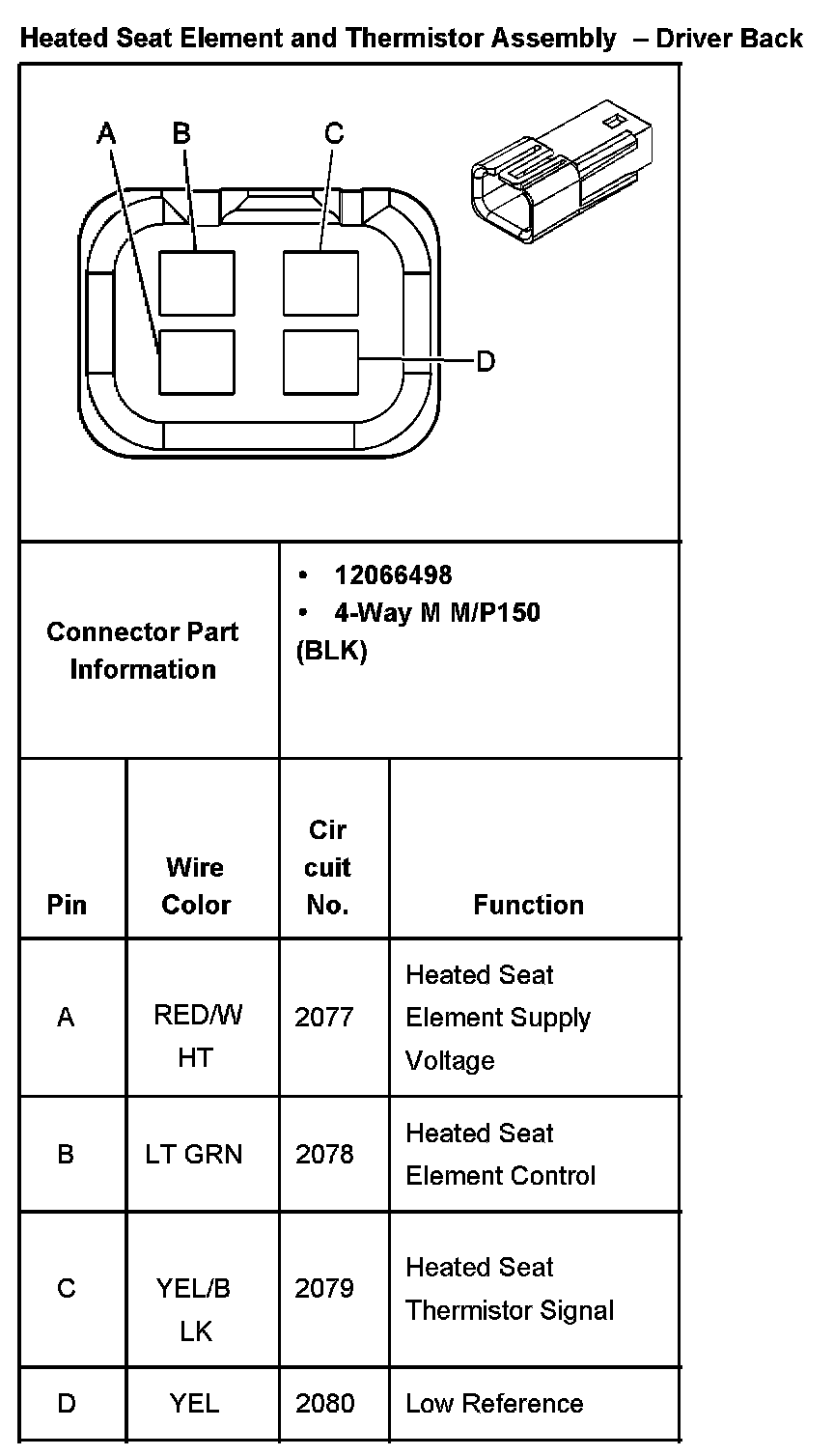

Heated Seat Element And Thermistor Assembly - Driver Back:

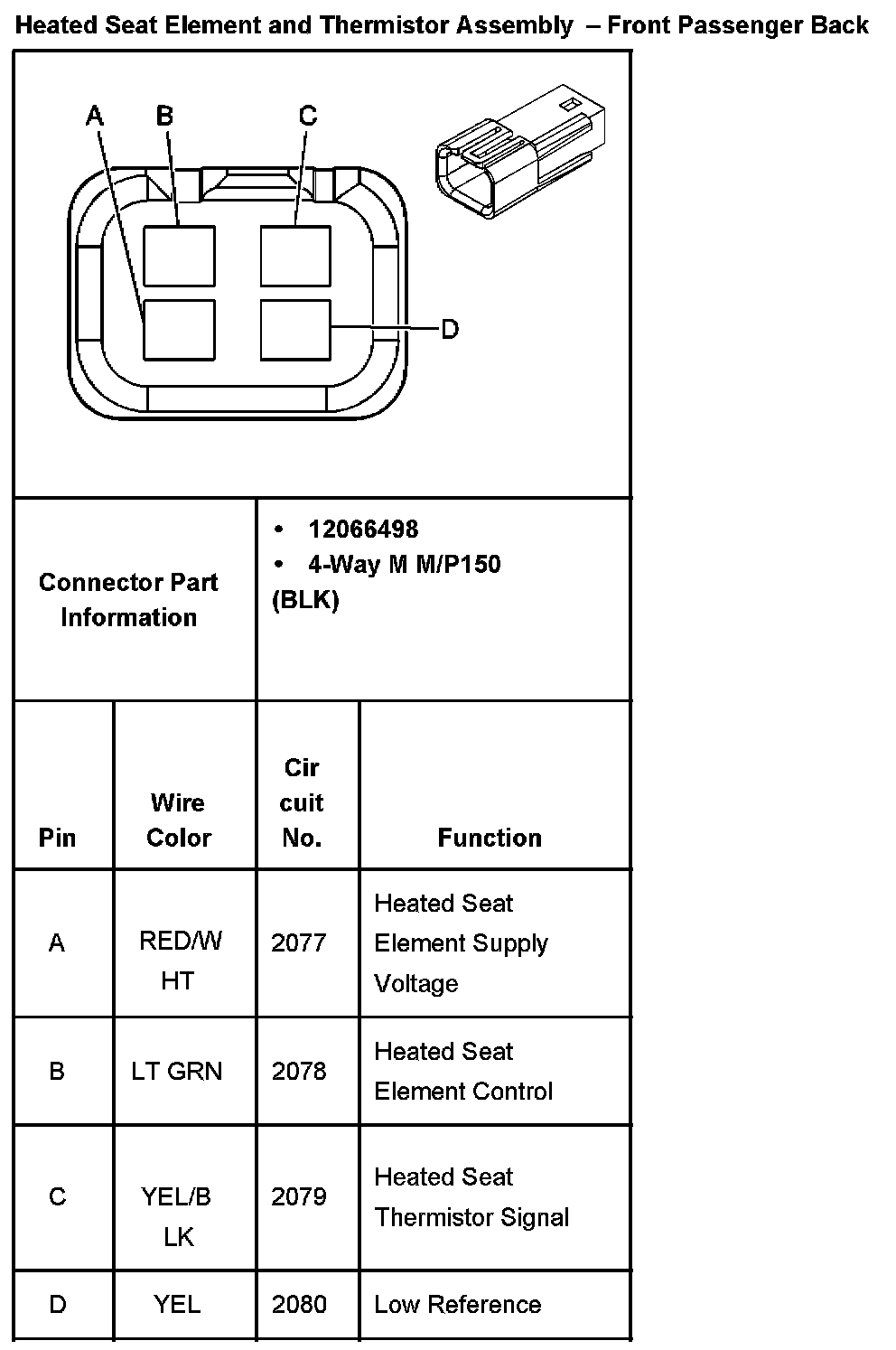

Heated Seat Element And Thermistor Assembly - Front Passenger Back:
