Power and Ground Distribution
>>
Auxiliary Power Outlet
Auxiliary Power Outlet
Auxiliary Power Outlet - Console:

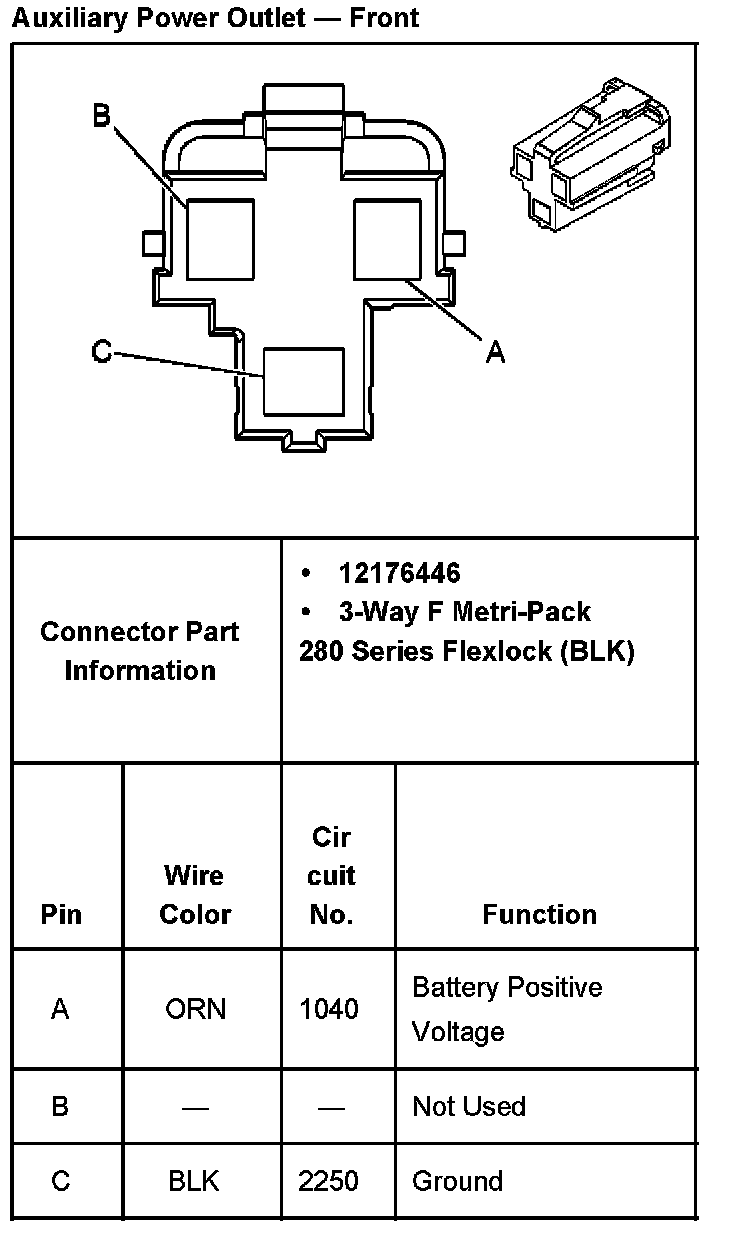

Auxiliary Power Outlet - Front:

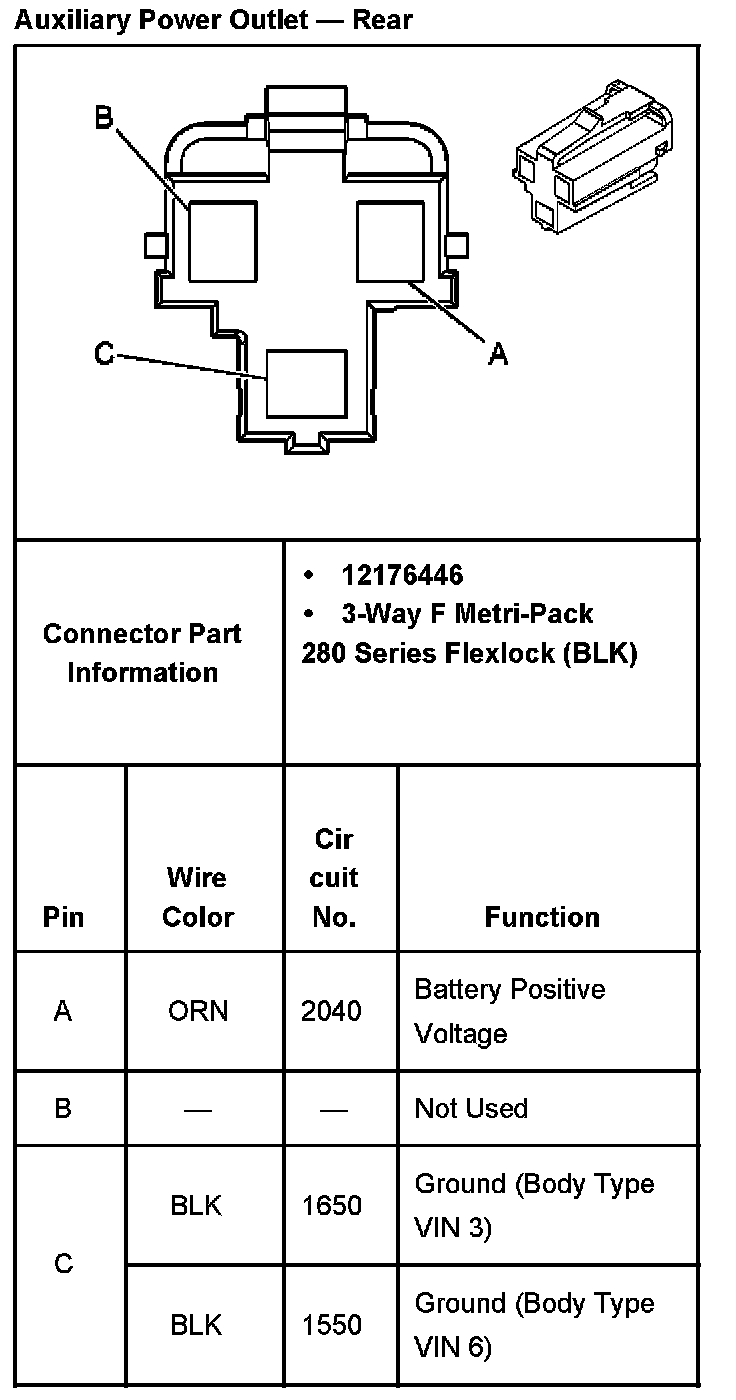

Auxiliary Power Outlet - Rear:
