84. Fuel Rail and Injectors Installation
Fuel Rail and Injectors InstallationCAUTION: Refer to Fuel Rail Stop Bracket Installation Caution in Service Precautions.
Important: DO NOT use the fuel injector O-ring seals again. Install NEW fuel injector O-ring seals during assembly.
1. Lubricate the NEW fuel injector O-ring seals with clean engine oil.
2. Install the O-ring seals onto the fuel injectors.
3. Install a new O-ring seal to the right side of the crossover tube.
4. Assemble the crossover tube and bolt to the right fuel rail.

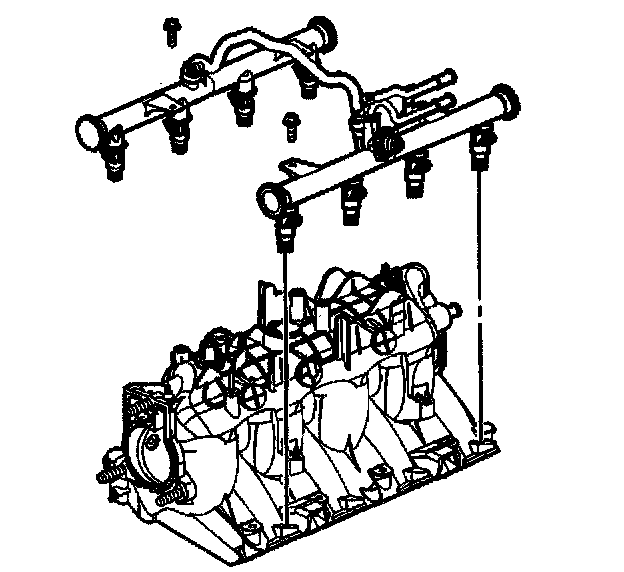

5. Install the fuel rail, with fuel injectors, into the intake manifold.
Press evenly on both sides of the fuel rail until all of the injectors are seated in their bores.
6. Apply a 5 mm (0.2 inch) band of threadlock GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the threads of the fuel rail bolts.
Notice Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
7. Install the fuel rail bolts.
7.1. Tighten the fuel rail bolts to 10 Nm (89 inch lbs.).
7.2. Tighten the crossover tube right side retaining bolt to 3.8 Nm (34 inch lbs.).

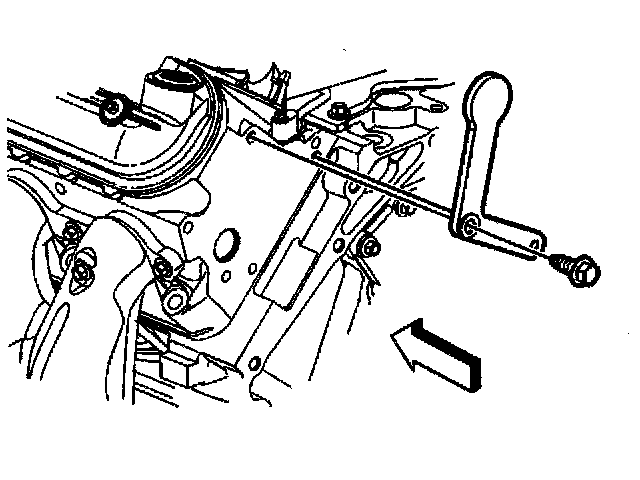

8. Install the fuel rail stop bracket and bolt.
Tighten the fuel rail stop bracket bolt to 50 Nm (37 ft. lbs.).
