Specifications
>>
Thread Repair Specifications
>>
Cylinder Head - Intake Manifold Deck View
Cylinder Head - Intake Manifold Deck View

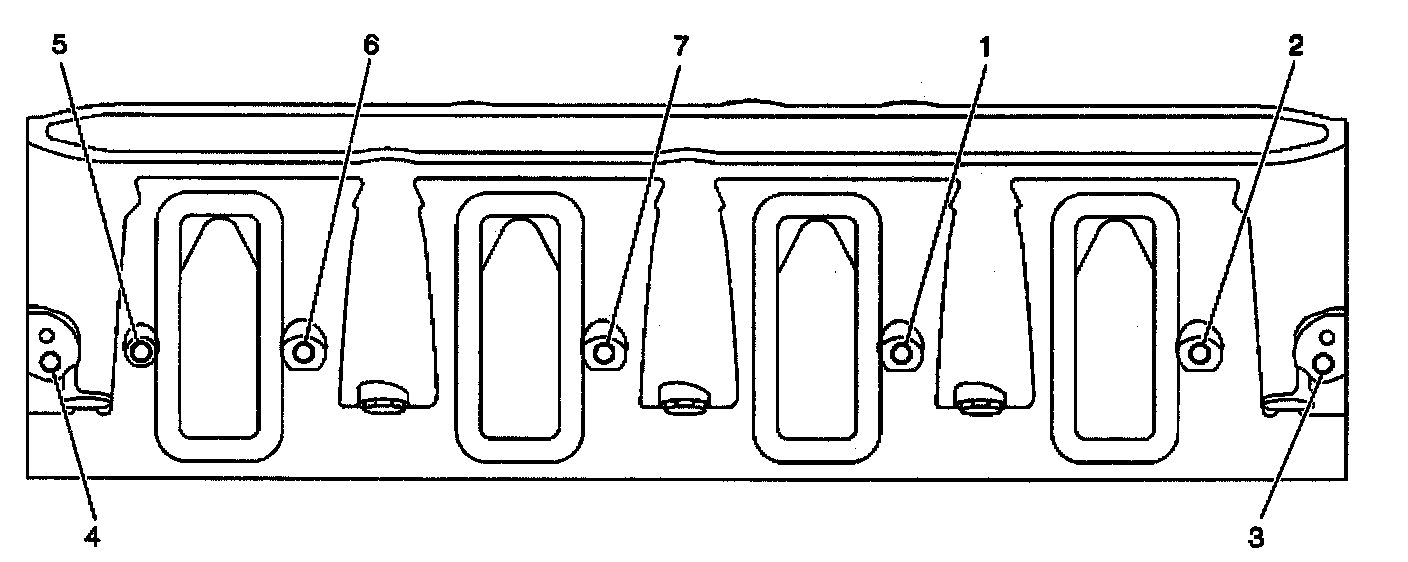

Cylinder Head - Intake Manifold Deck View (Part 1 Of 2):

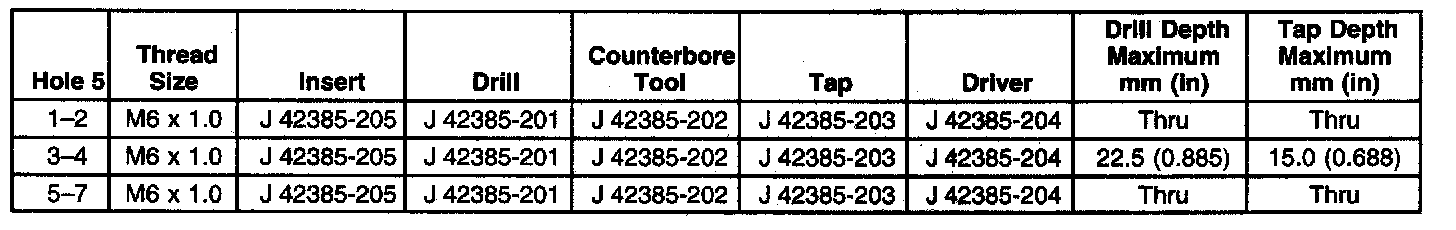

Cylinder Head - Intake Manifold Deck View (Part 2 Of 2):
