Front Drive Axle

Front Drive Axle Disassembled Views

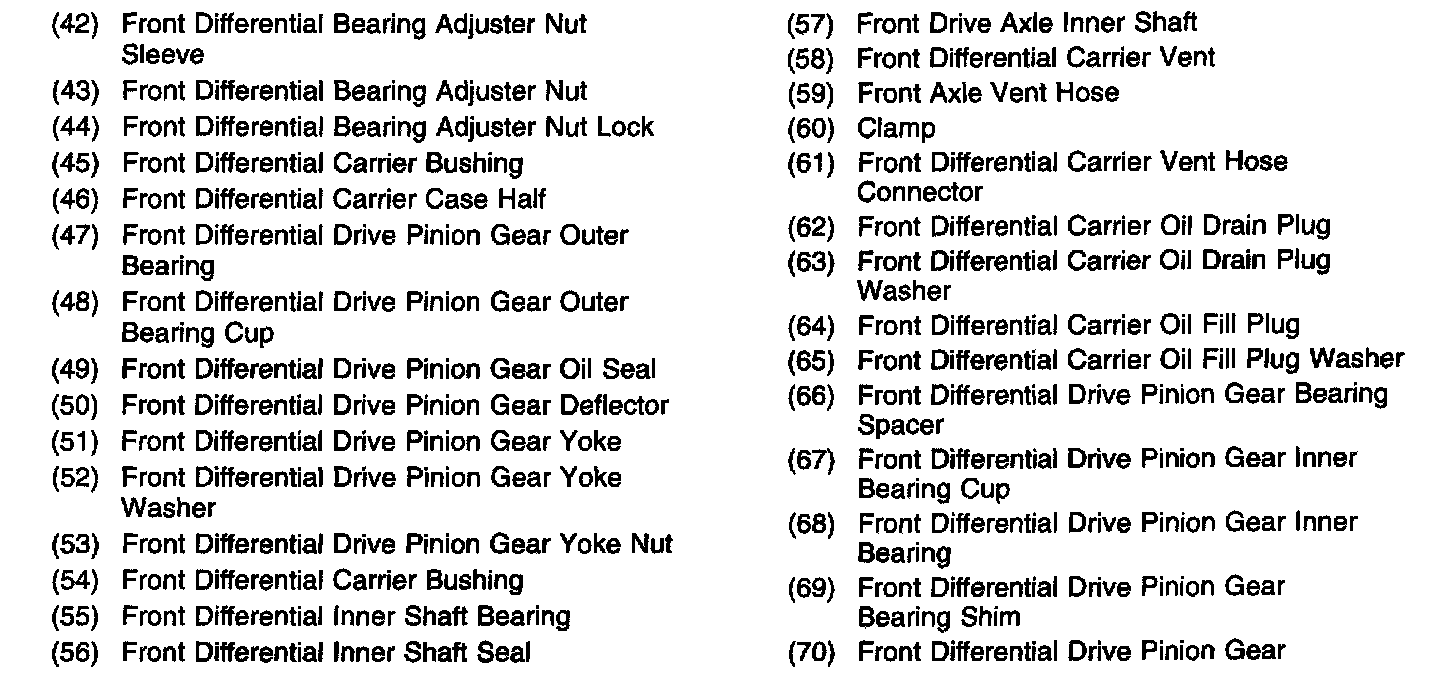

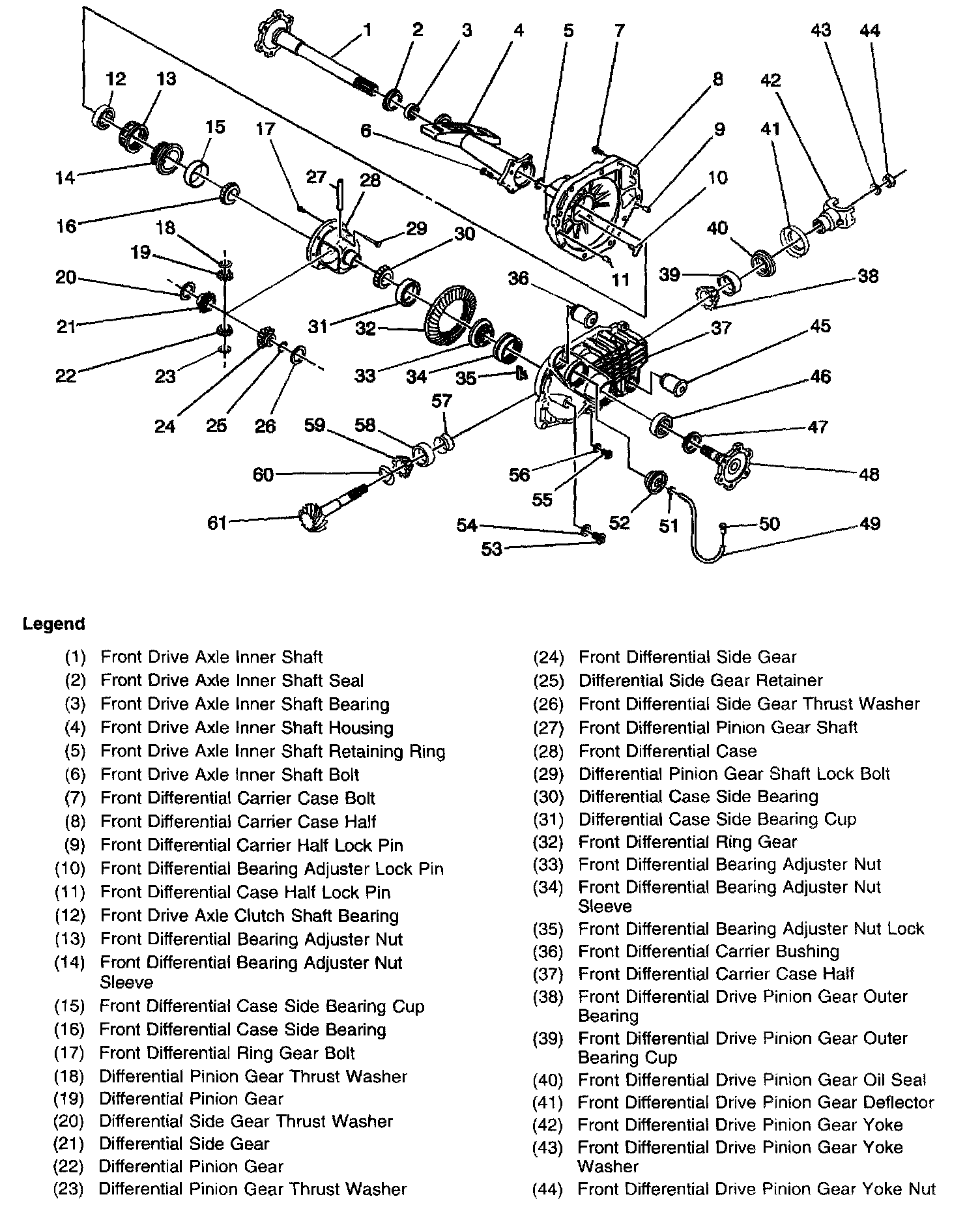

Front Drive Axle (8.25 inch) (S4WD)

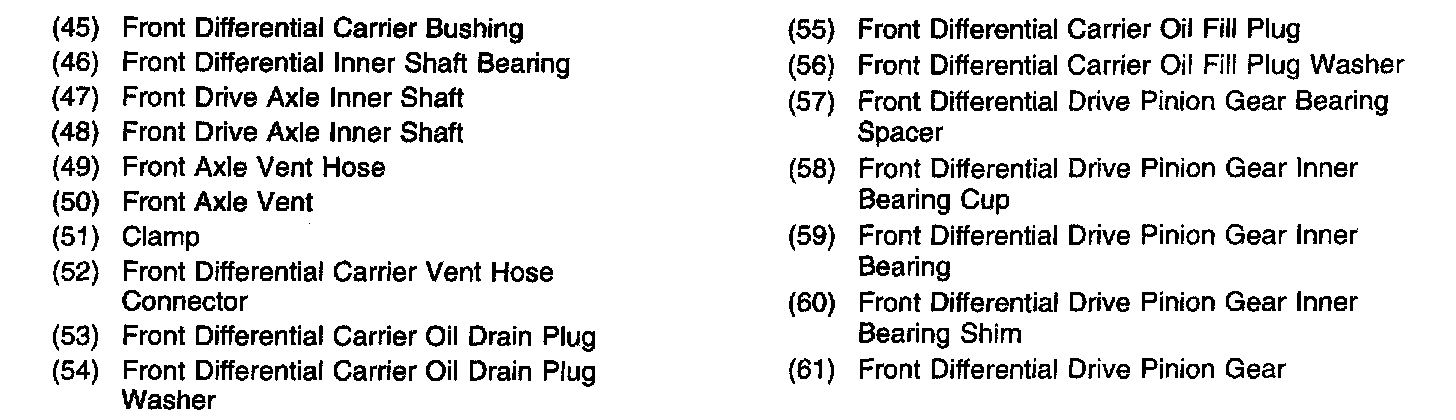

Front Drive Axle (8.25 inch) (F4WD)

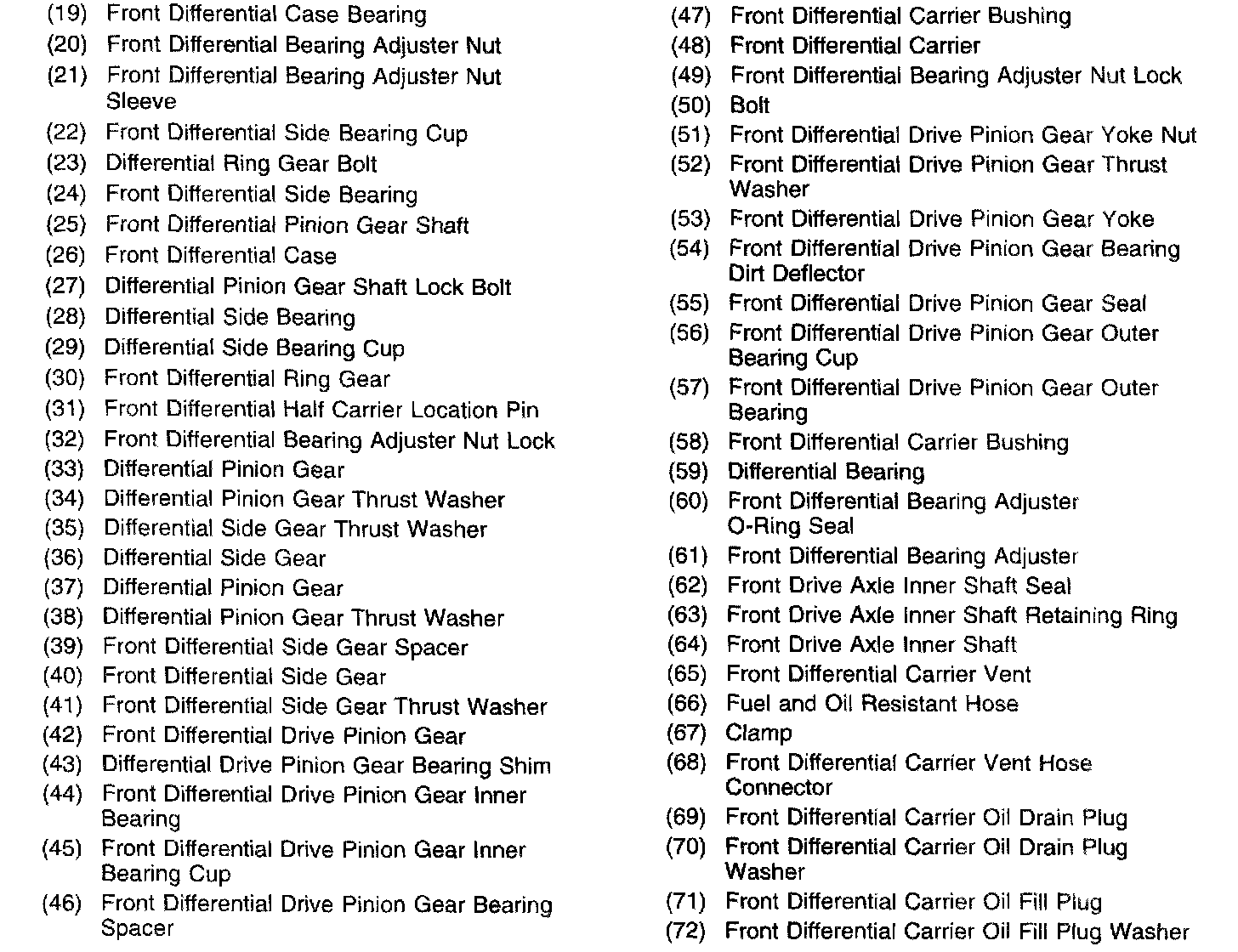

Front Drive Axle (9.25 inch)
