Mirror, Window, and Door Lock Switch Replacement

MIRROR, WINDOW, AND DOOR LOCK SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the 2 screws securing the switch plate assembly to the door trim panel.
2. Lift the switch plate up and out of the door trim panel.

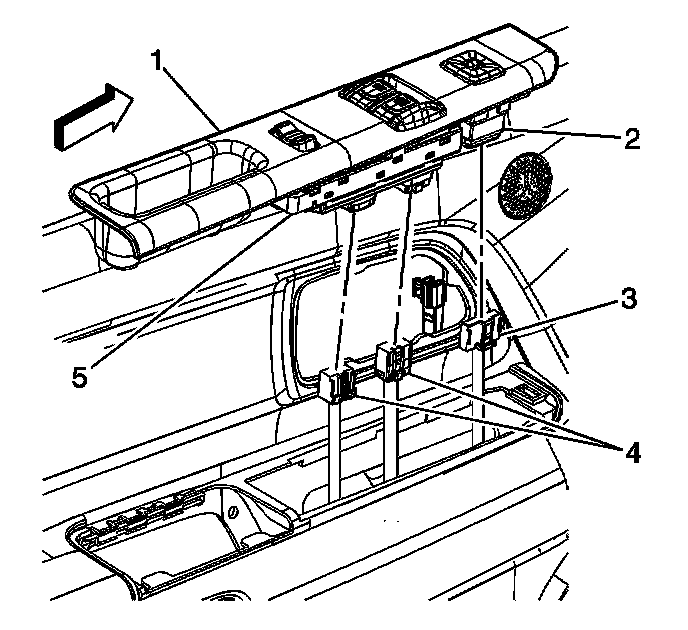

3. Disconnect the electrical connectors (3, 4) from the switches (2, 5).
4. Remove the switch plate assembly (1) from the vehicle.
5. If replacing only the switches, remove the switches from the plate.
6. If replacing only the switch plate, retain the switches for transfer.

INSTALLATION PROCEDURE




1. Install the switches (2, 5) to the switch plate (1).

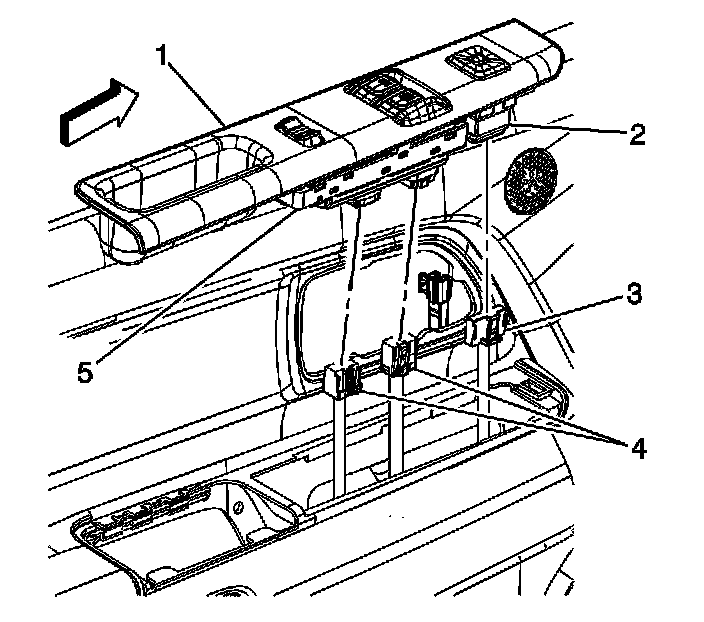

2. Connect the electrical connectors (3, 4) to the switches (2, 5).

NOTE: Refer to Fastener Notice in Service Precautions.




3. Install the switch plate assembly to the door trim panel with the 2 screws.

Tighten
Tighten the front door switch plate screws to 2 N.m (18 lb in).
