Radiator Support Shield Replacement



Radiator Support Shield Replacement

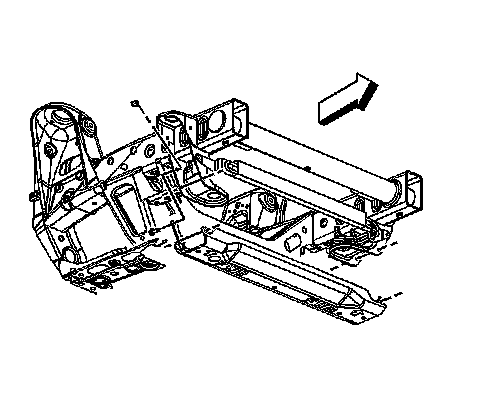

Removal Procedure




1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the radiator support shield mounting nuts and bolts.
3. Remove the radiator support shield.

Installation Procedure




1. Install the radiator support shield.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the radiator support shield mounting nuts and bolts.

Tighten the radiator support shield mounting nuts to 17 N.m (13 lb ft).

3. Lower the vehicle.
