Automatic Transmission Electronic Component Views (M33 Only)

Automatic Transmission Electronic Component Views (M33 Only)





Electronic Components

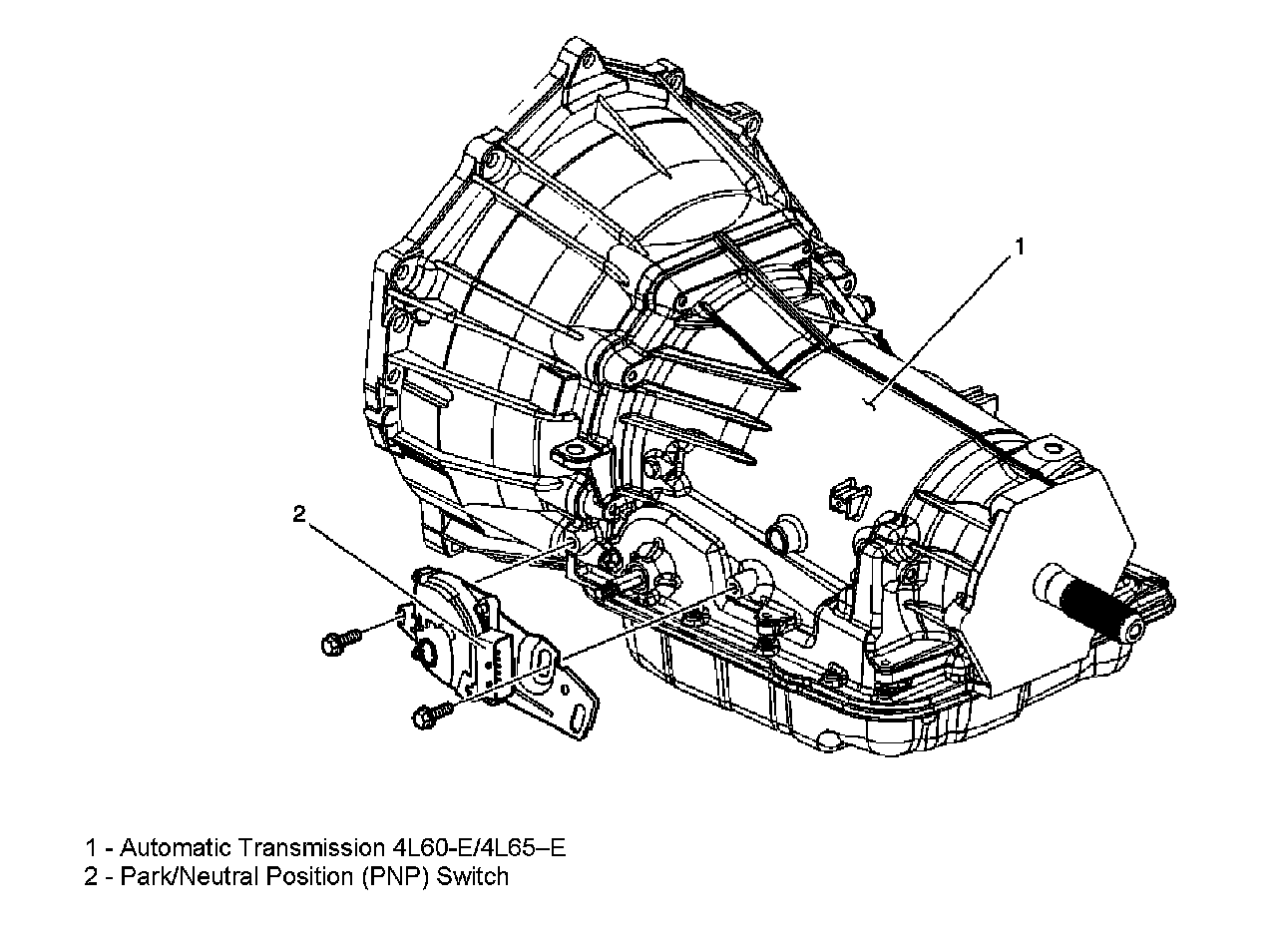

Park Neutral Position (PNP) Switch

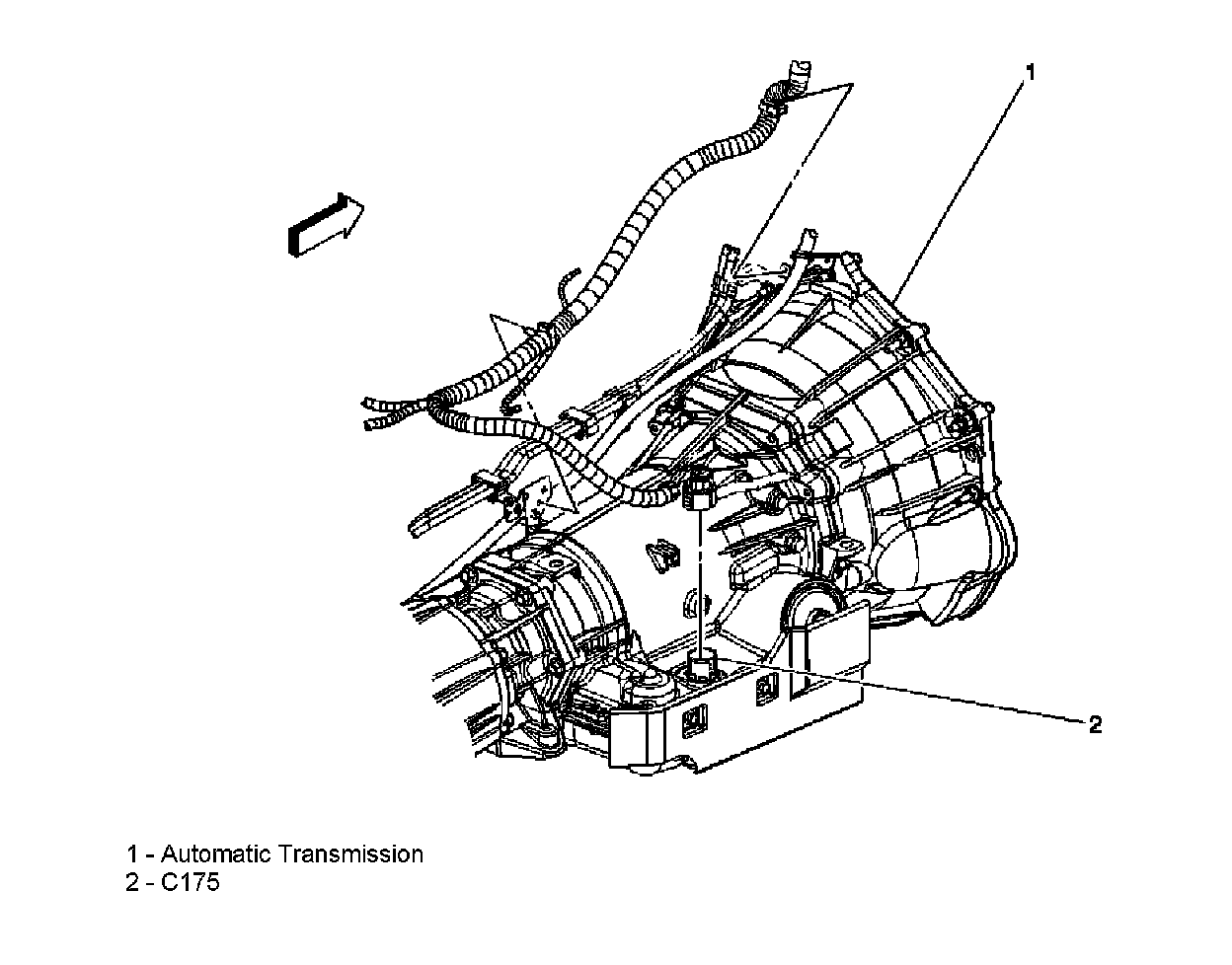

C175





Vehicle Speed Sensor(VSS)
