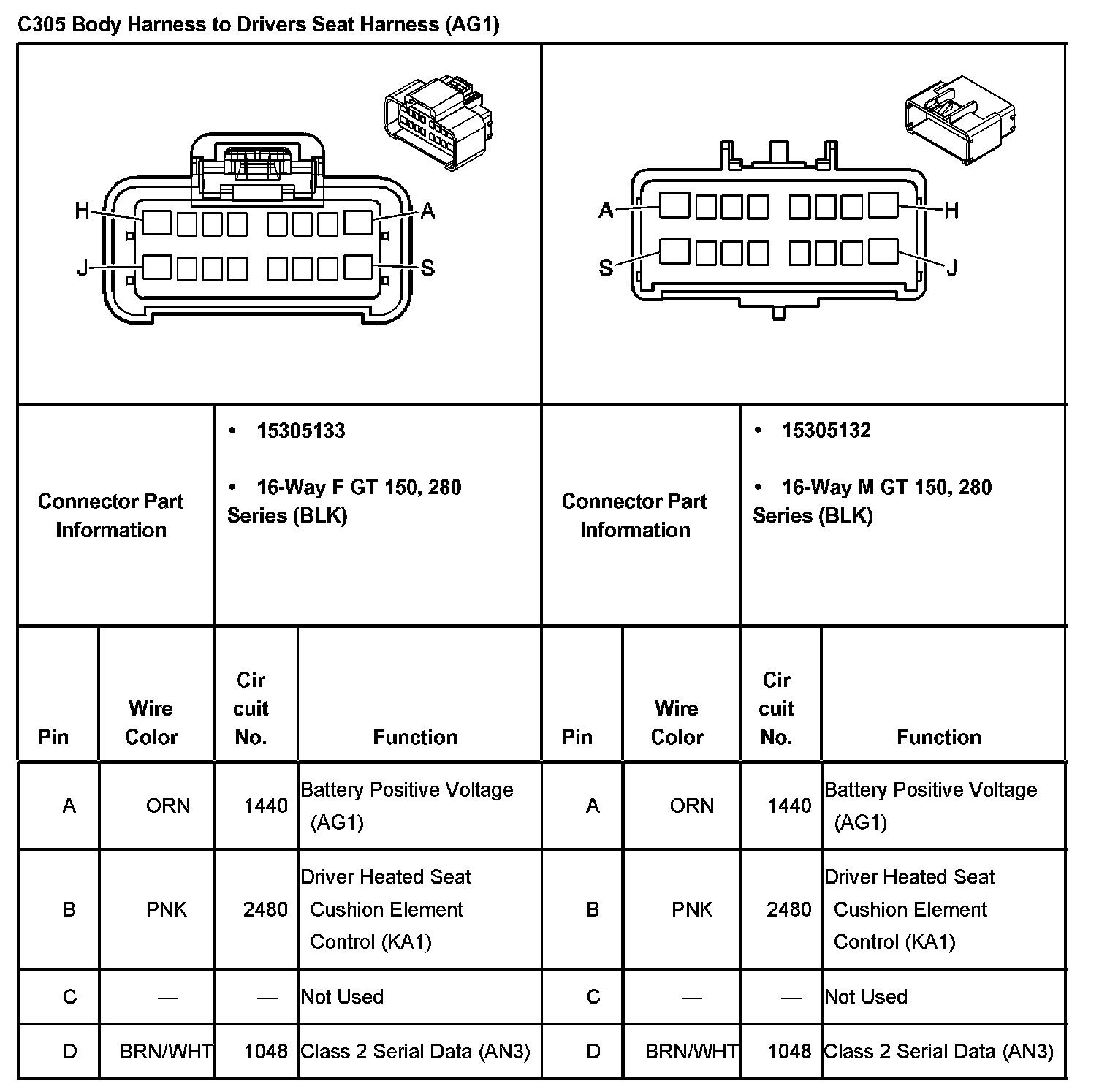

C305 Body Harness to Drivers Seat Harness (With RPO Code AG1)
C305 Body Harness to Drivers Seat Harness (With RPO Code AG1)
C305 Body Harness To Drivers Seat Harness (With RPO Code AG1) Part 1:
C305 Body Harness To Drivers Seat Harness (With RPO Code AG1) Part 2:
