Glow Plug: Diagrams

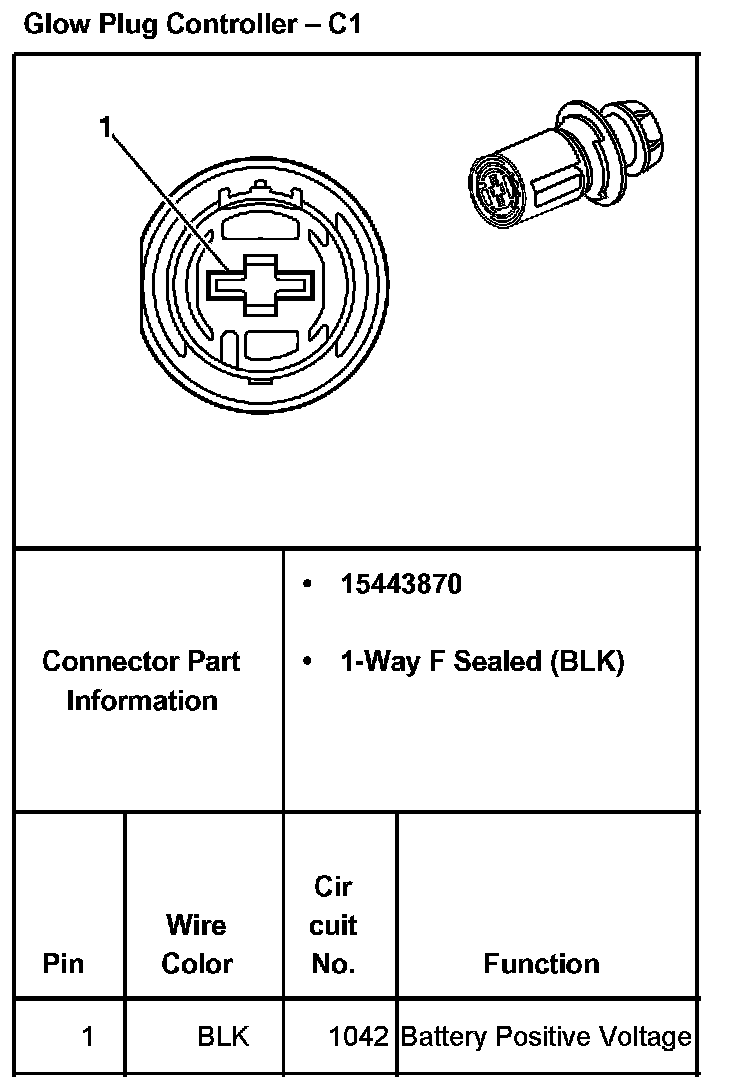

Glow Plug Controller - C1:

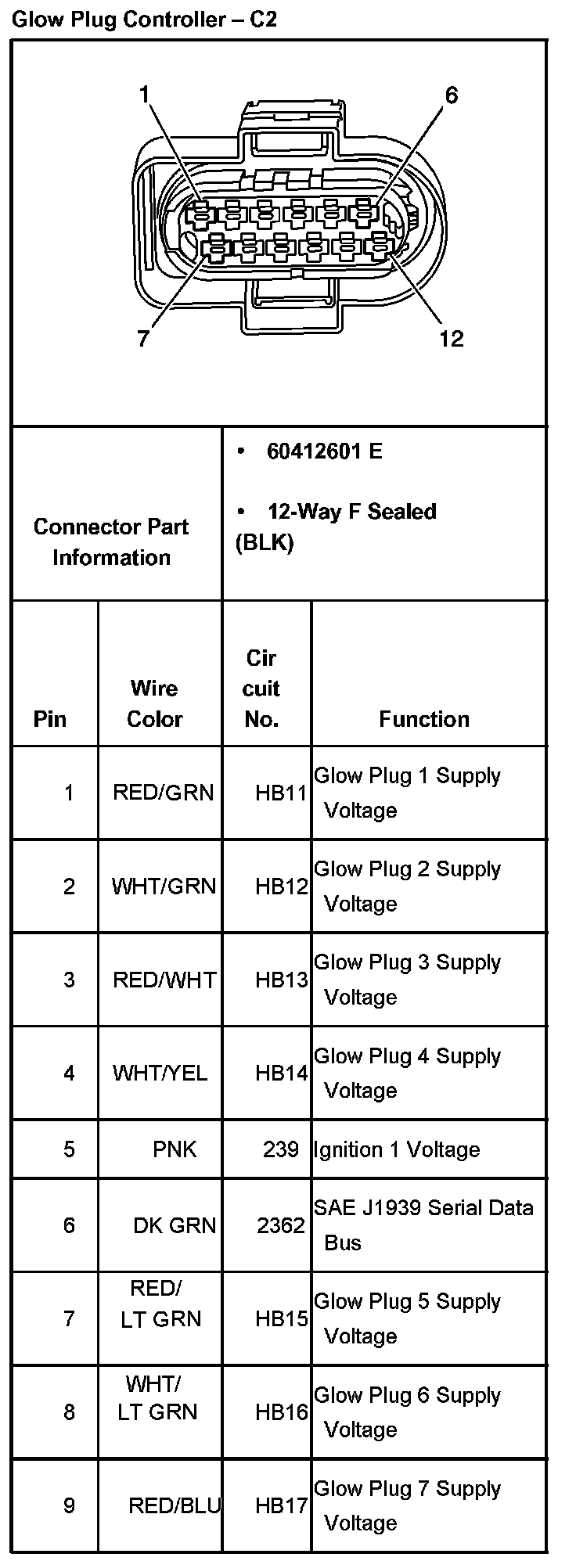

Glow Plug Controller - C2 Part 1:

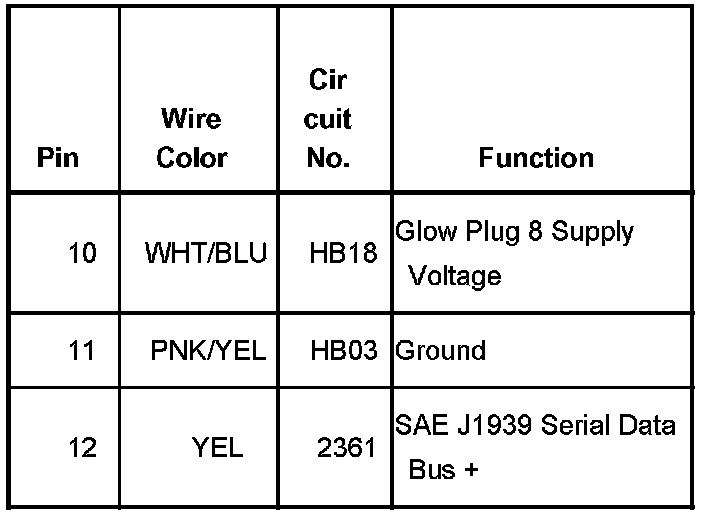

Glow Plug Controller - C2 Part 2:
