Heater Core Replacement - Delphi

HEATER CORE REPLACEMENT (DELPHI)

REMOVAL PROCEDURE
1. Remove the HVAC module assembly. Service and Repair
2. Remove the screws from the heater core cover.

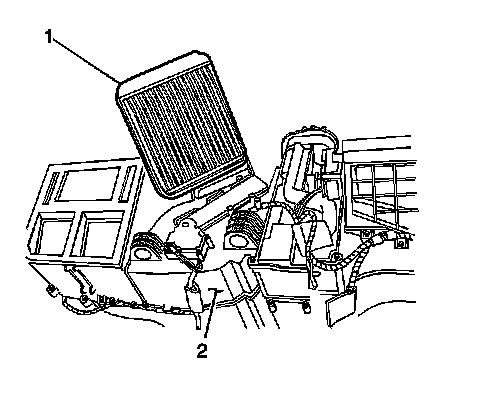

3. Remove the heater core cover (1) from the HVAC module assembly (2).




4. Remove the heater core cowl gasket (1) from the heater core (2).
5. Remove the heater core (2) from the HVAC module assembly (3).

INSTALLATION PROCEDURE




1. Install the heater core (2) to the HVAC module assembly (3).
2. Install the heater core cowl gasket (1) to the heater core (2).




3. Install the heater core cover (1) to the HVAC module assembly (2).
4. Install the screws to the heater core cover (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 N.m (18 lb in).

5. Install the HVAC module assembly.
