Jacking Locations
JACKINGWhen you are lifting a vehicle with a vehicle jack or a floor jack, block the wheels at the opposite end from which you are lifting. Use jack stands to provide additional support.

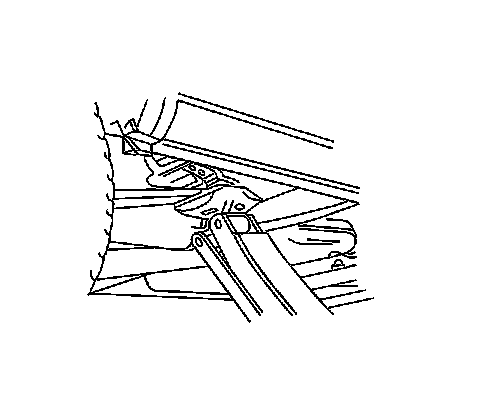

Under the Frame Rails
IMPORTANT: The floor jack pad must not contact rocker panel or the floor pan.
Position the floor jack pad under the frame rail pad.
Under the Rear Differential
Position the floor jack pad under the center of the rear axle differential.
Do not damage the establisher bar.
Under the Rear Spring Hanger
Position the jack under the rear spring hanger.
Jack Stands
When you support the vehicle with jack stands, place the jack stands under the frame, the front suspension crossmember, or the rear axle.
