GMC
>>
2005
>>
Envoy 2WD V8-5.3L VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sunroof / Moonroof Module
Sunroof / Moonroof Module

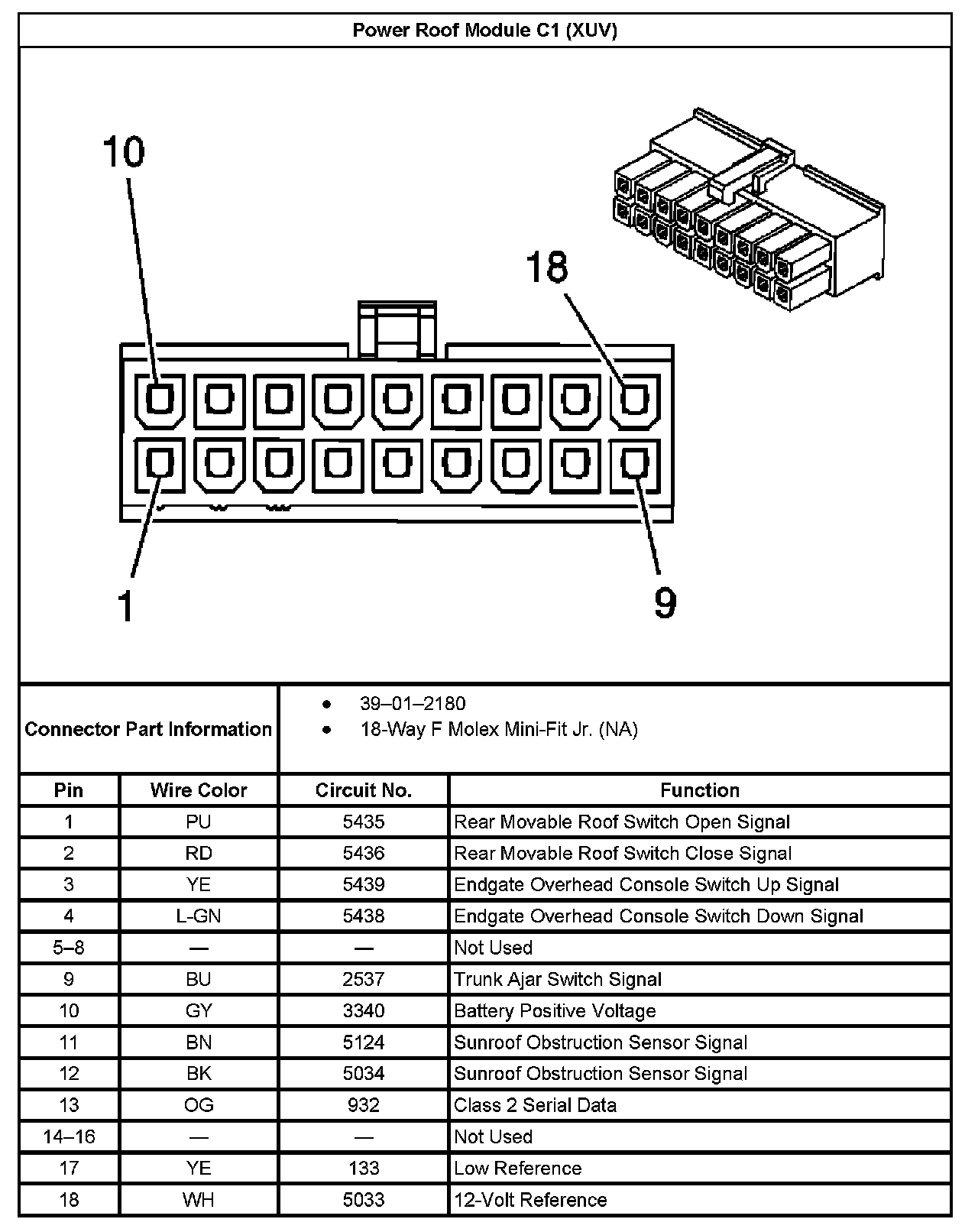

Power Roof Module C1 (XUV):

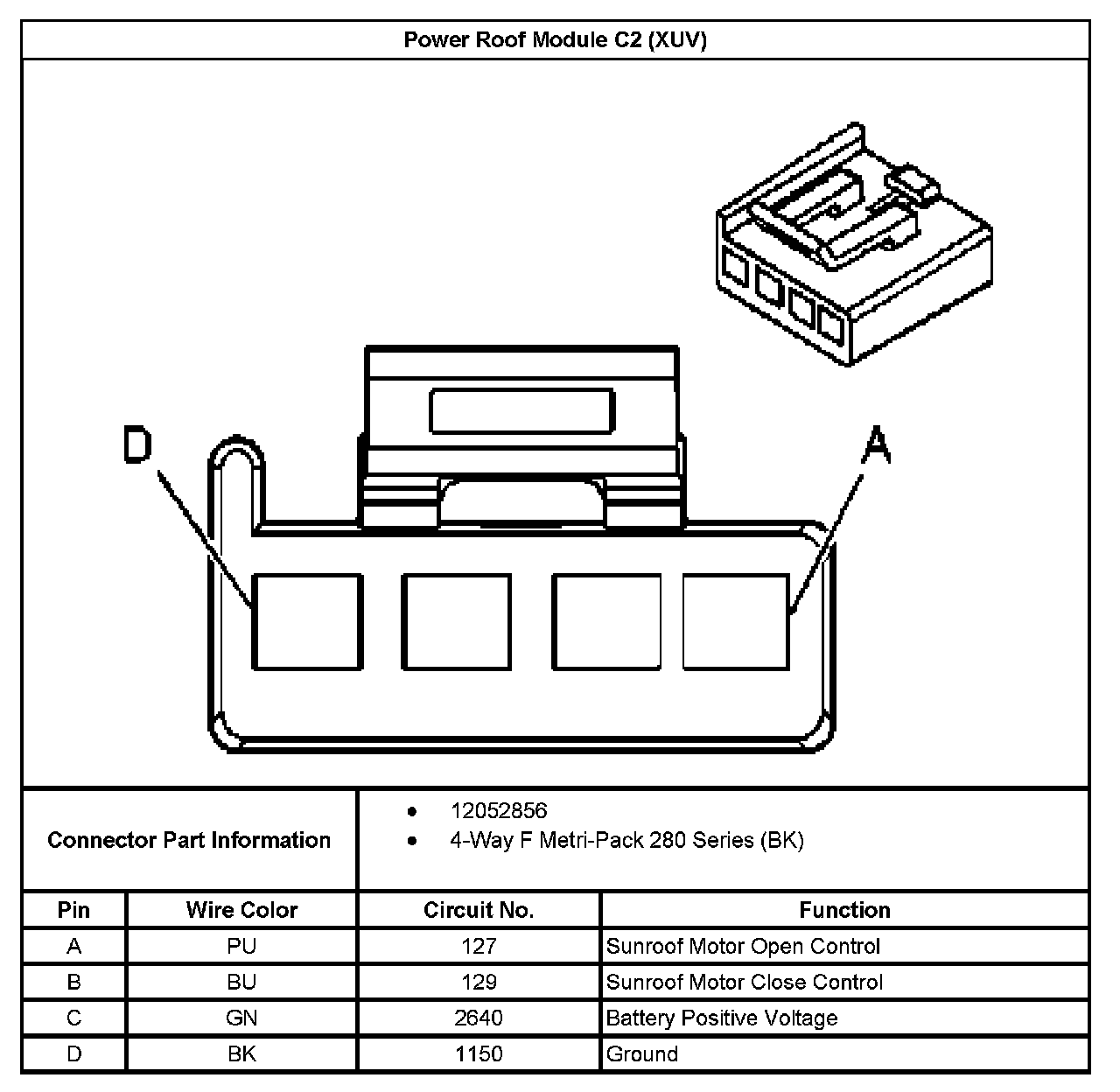

Power Roof Module C2 (XUV):
