Removal

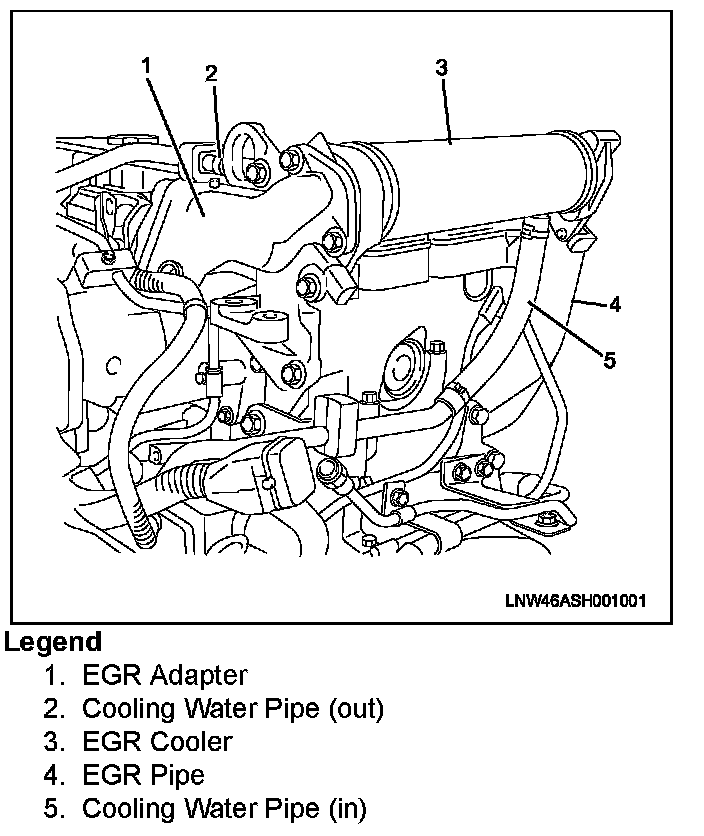

Removal 1.
Drain cooling water.
2.
Disconnect the
EGR valve connector.
3.
Remove the EGR pipe.
4.
Remove the cooling water pipes.
5.
Remove the
EGR adapter.
6.
Remove the
EGR cooler.
7.
Remove the
EGR valve.
CAUTION: After removing the EGR valve and EGR adapter, seal so that foreign matter does not enter.
