Mirror Replacement - Power



MIRROR REPLACEMENT - POWER

REMOVAL PROCEDURE

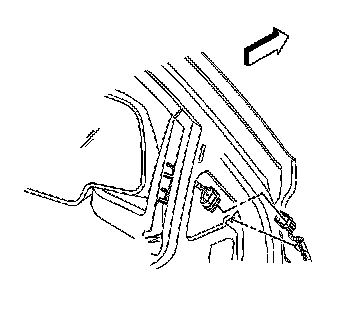

1. Remove the trim panel upper extension.




2. Remove the insulator, if equipped.
3. Disconnect the electrical connector.




4. Remove the nuts securing the outside mirror to the door.
5. Remove the mirror from the door.

INSTALLATION PROCEDURE




1. Install the outside mirror to the door. Press the mirror into place.




2. Connect the electrical connector.
3. Install the nuts in order to secure the outside mirror to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the outside mirror nuts to 9 N.m (80 lb in).

4. Install the insulator, if equipped.
5. Install the trim panel upper extension.
