Frame Contact Lift

FRAME CONTACT HOIST

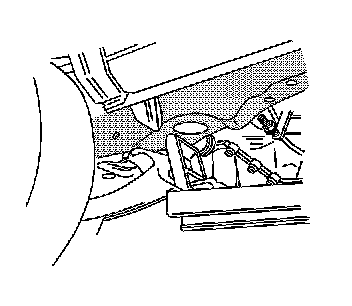

FRONT HOIST PADS

IMPORTANT: The front hoist pads must not contact the rocker panels, the front fenders, or the floor pan.

Position the front hoist pads under the front frame between the lower control arm and the frame pad.

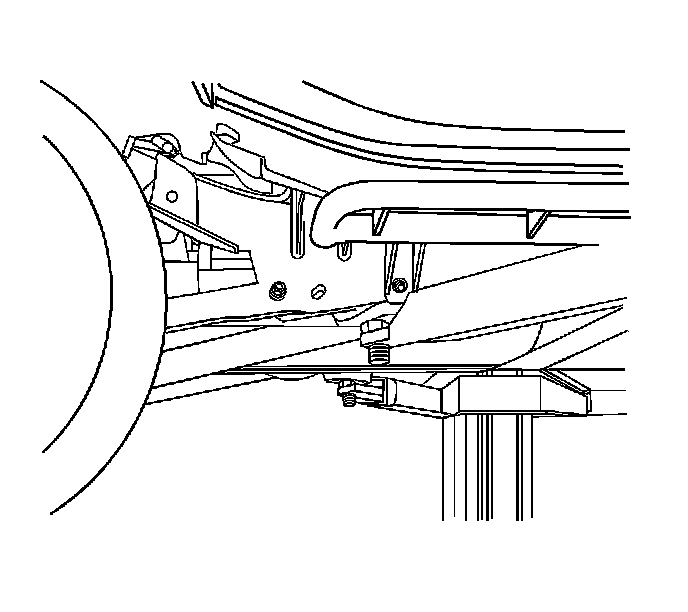

REAR HOIST PADS

IMPORTANT: The rear hoist pads must not contact the body rocker panels or the floor pan.

Position the rear hoist pads under the rear spring, just behind the hanger
