HVAC - Automatic

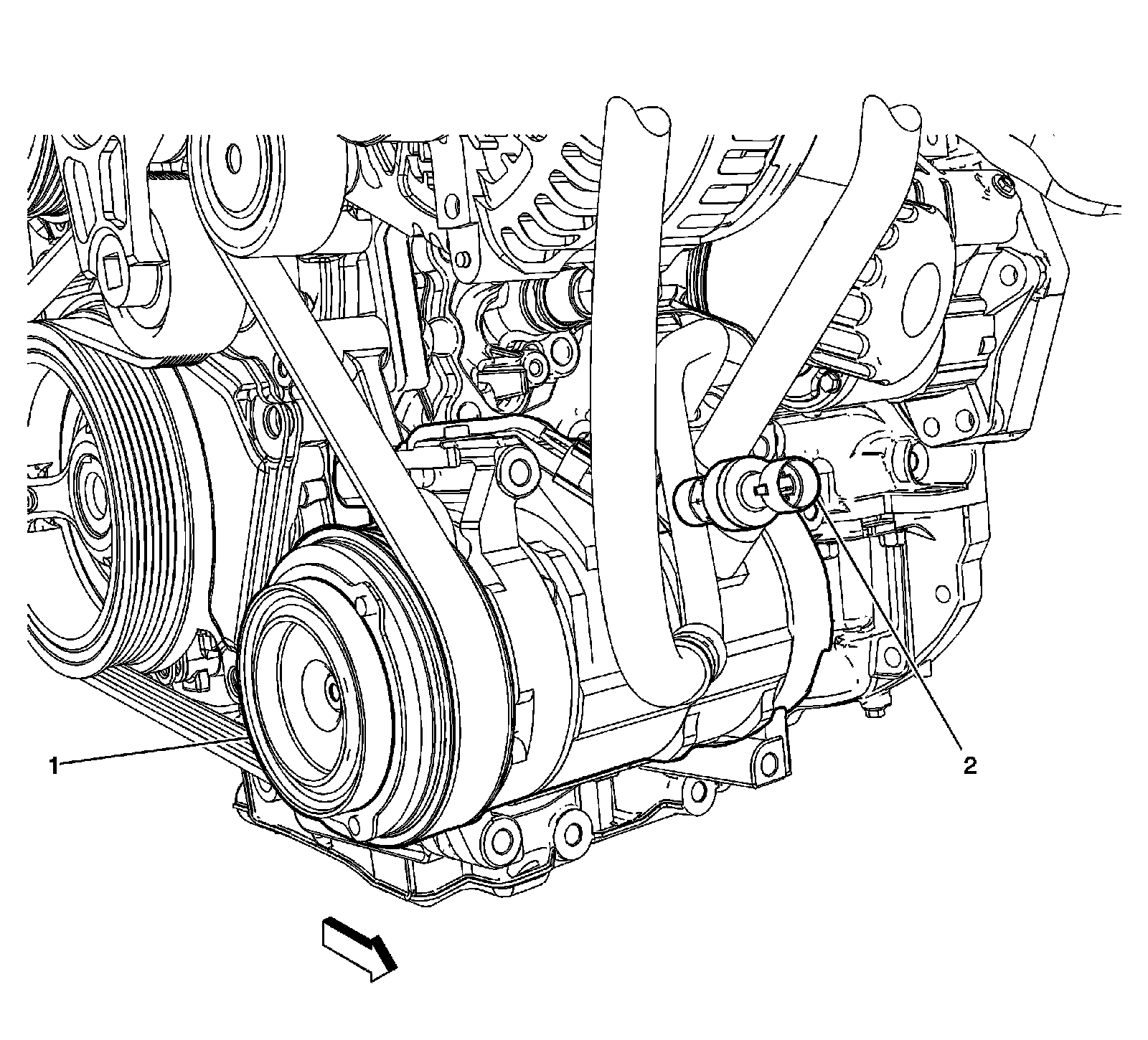

HVAC Component Views

Near the A/C Compressor




1 - A/C Compressor
2 - A/C Refrigerant Pressure Sensor
