X254
X254

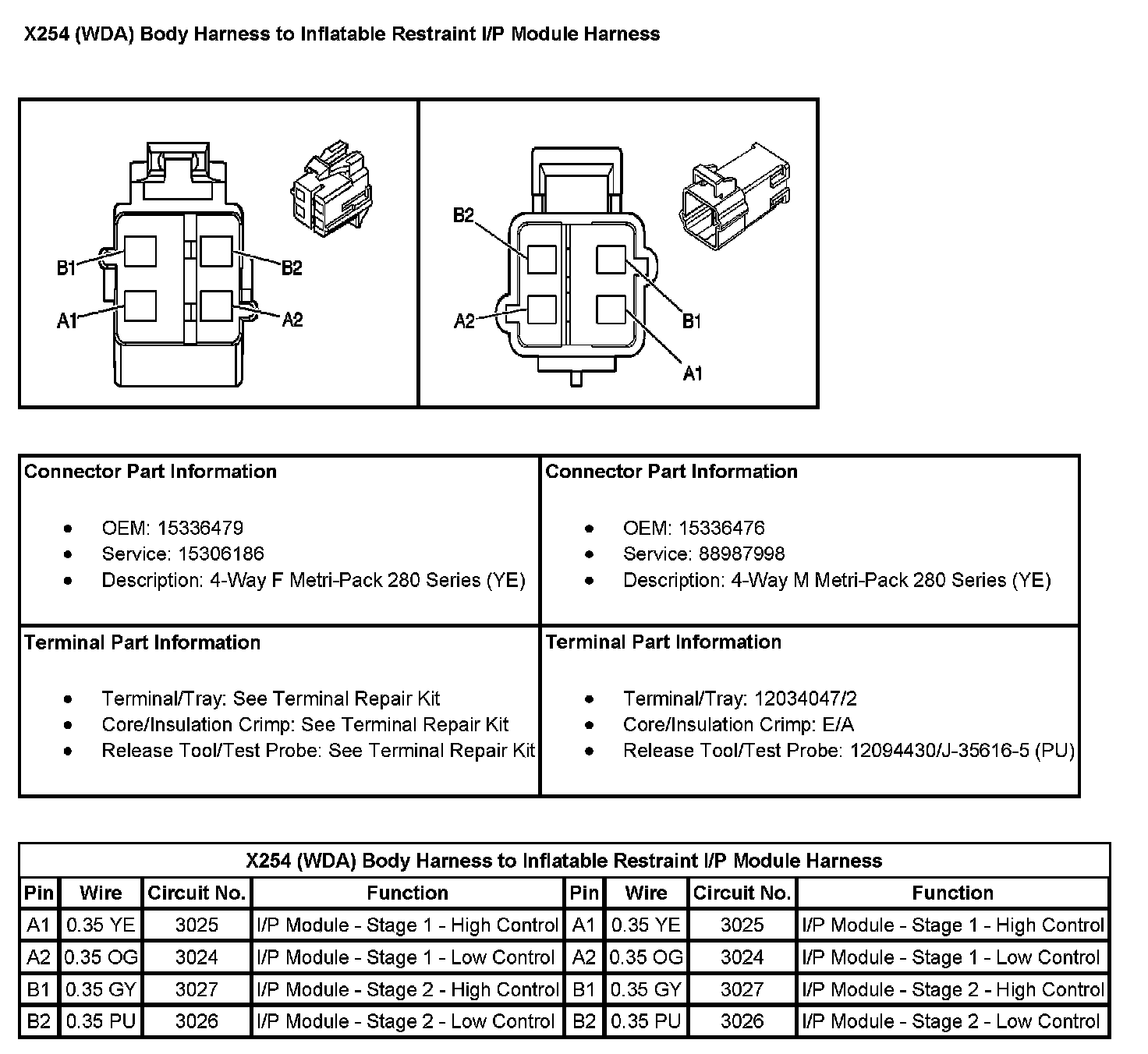

X254 (With RPO Code WDA) Body Harness To Inflatable Restraint I/P Module Harness (Pin A1 To B2):

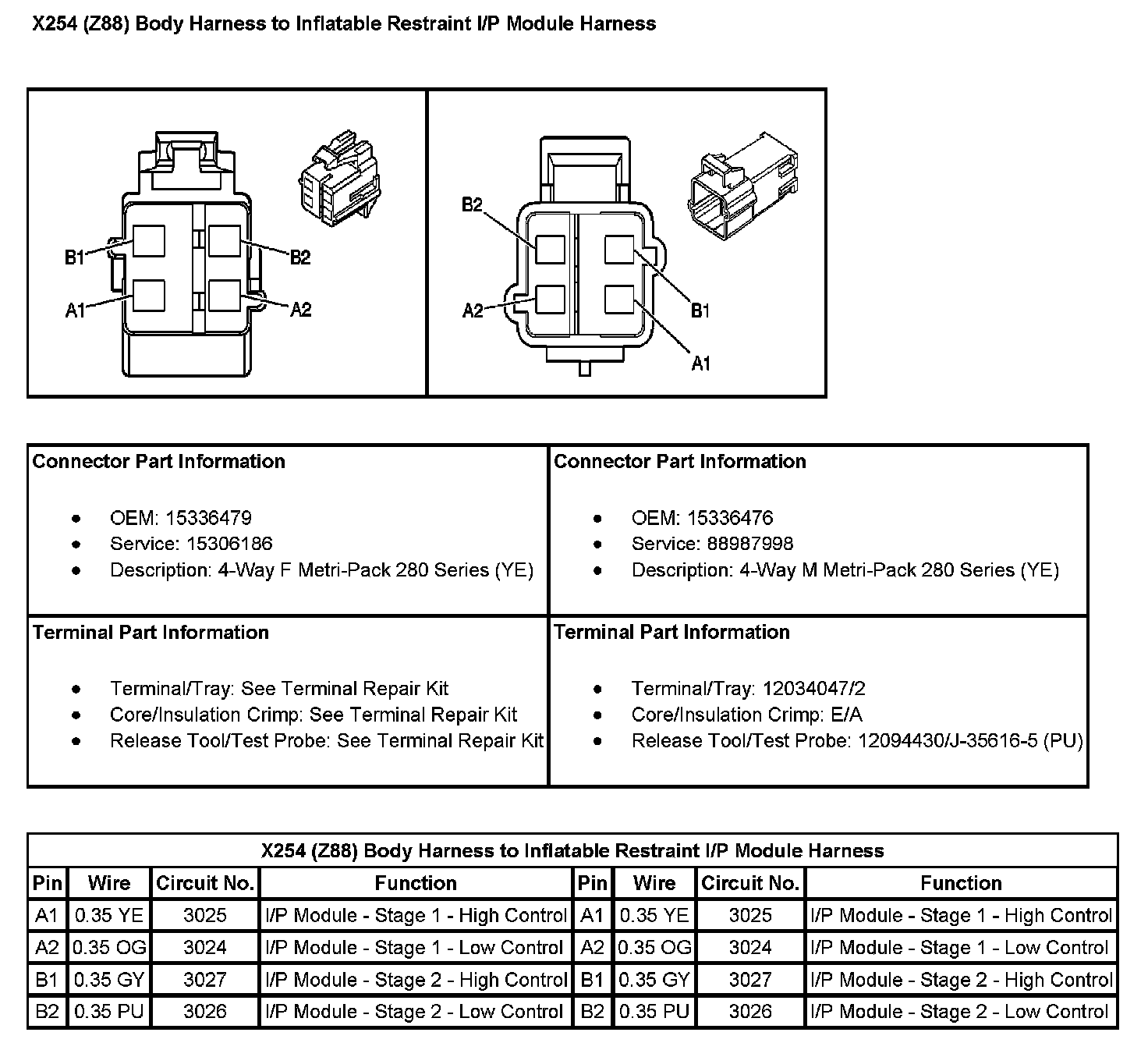

X254 (With RPO Code Z88) Body Harness To Inflatable Restraint I/P Module Harness (Pin A1 To B2):
