Home >> GMC >> 2007 >> Acadia FWD V6-3.6L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X300 - X399 >> X343

X343

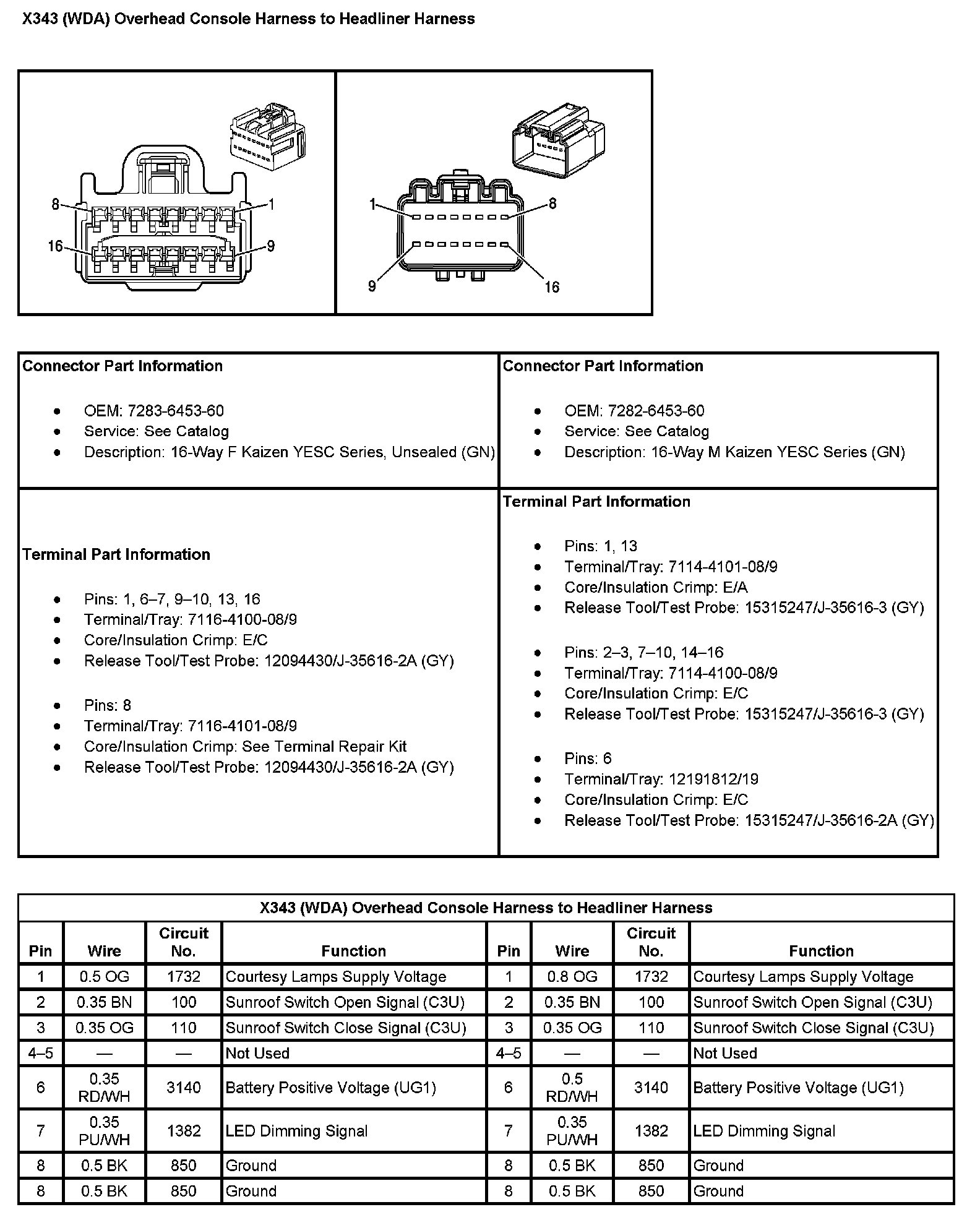

X343 (With RPO Code WDA) Overhead Console Harness To Headliner Harness (Pin 1 To 9):

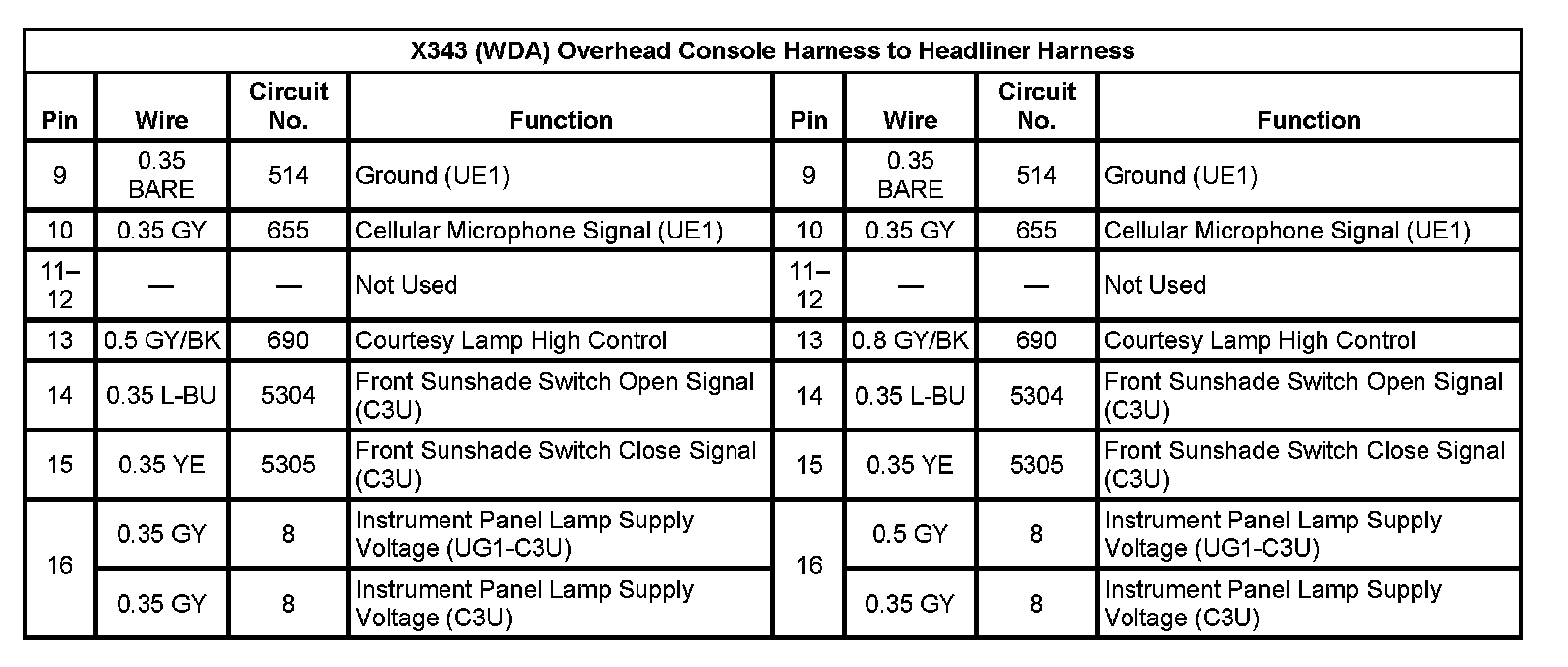

X343 (With RPO Code WDA) Overhead Console Harness To Headliner Harness (Pin 9 To 16):

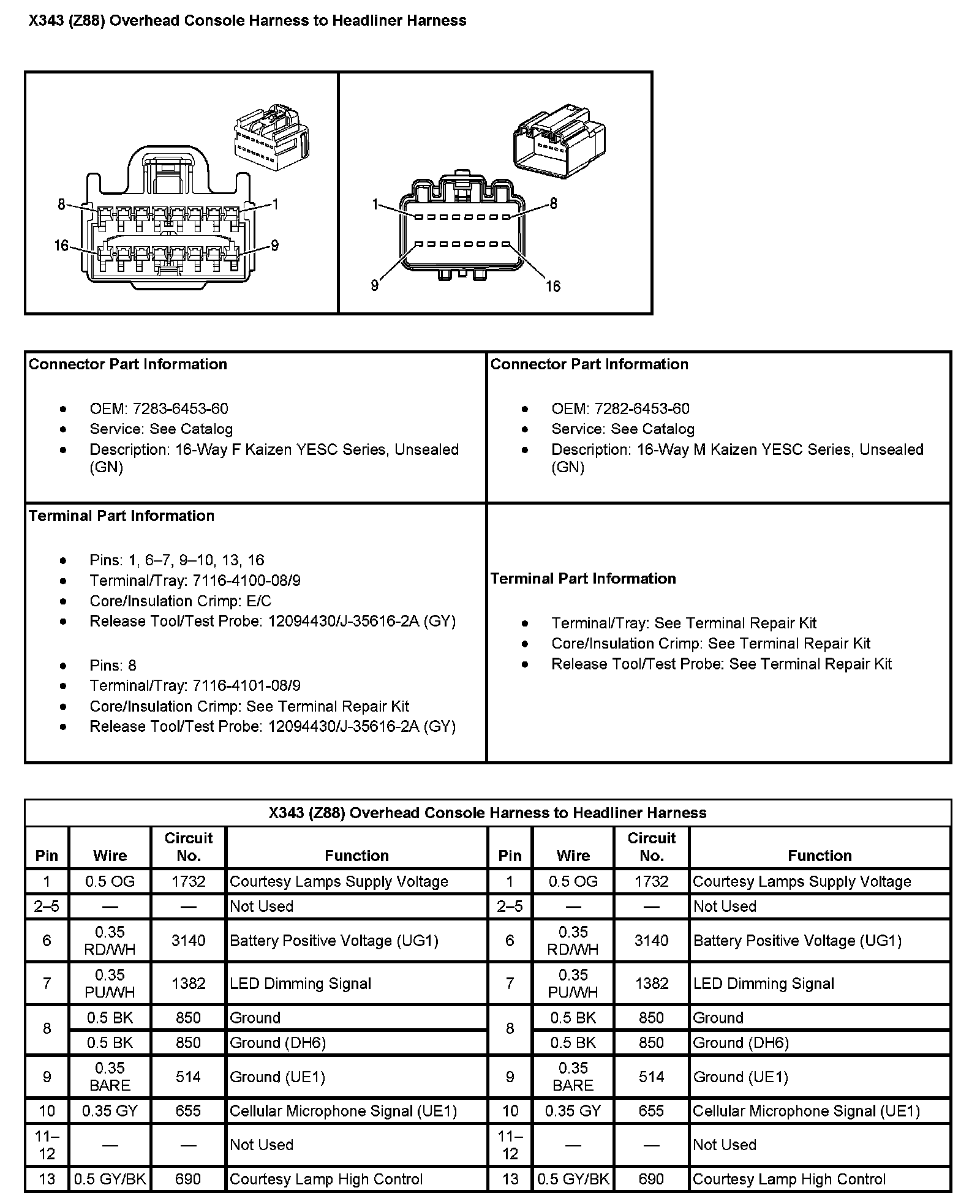

X343 (With RPO Code Z88) Overhead Console Harness To Headliner Harness (Pin 1 To 13):

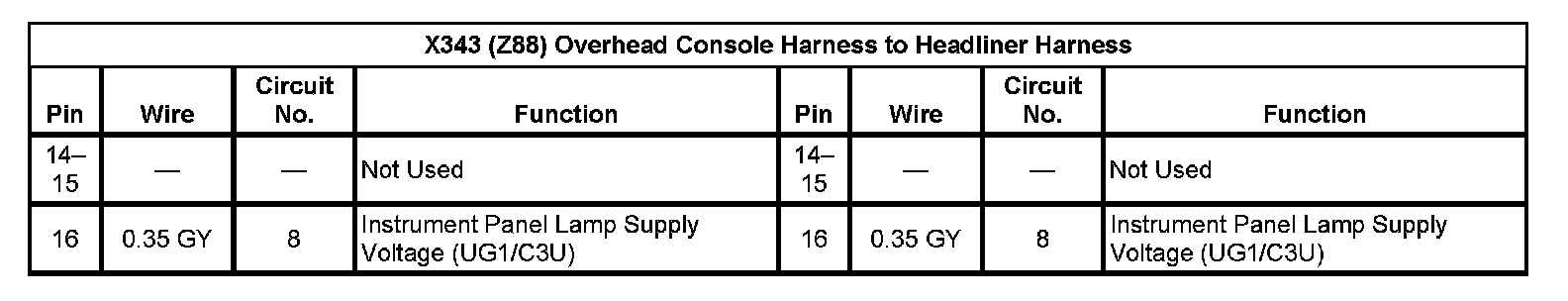

X343 (With RPO Code Z88) Overhead Console Harness To Headliner Harness (Pin 14 To 16):

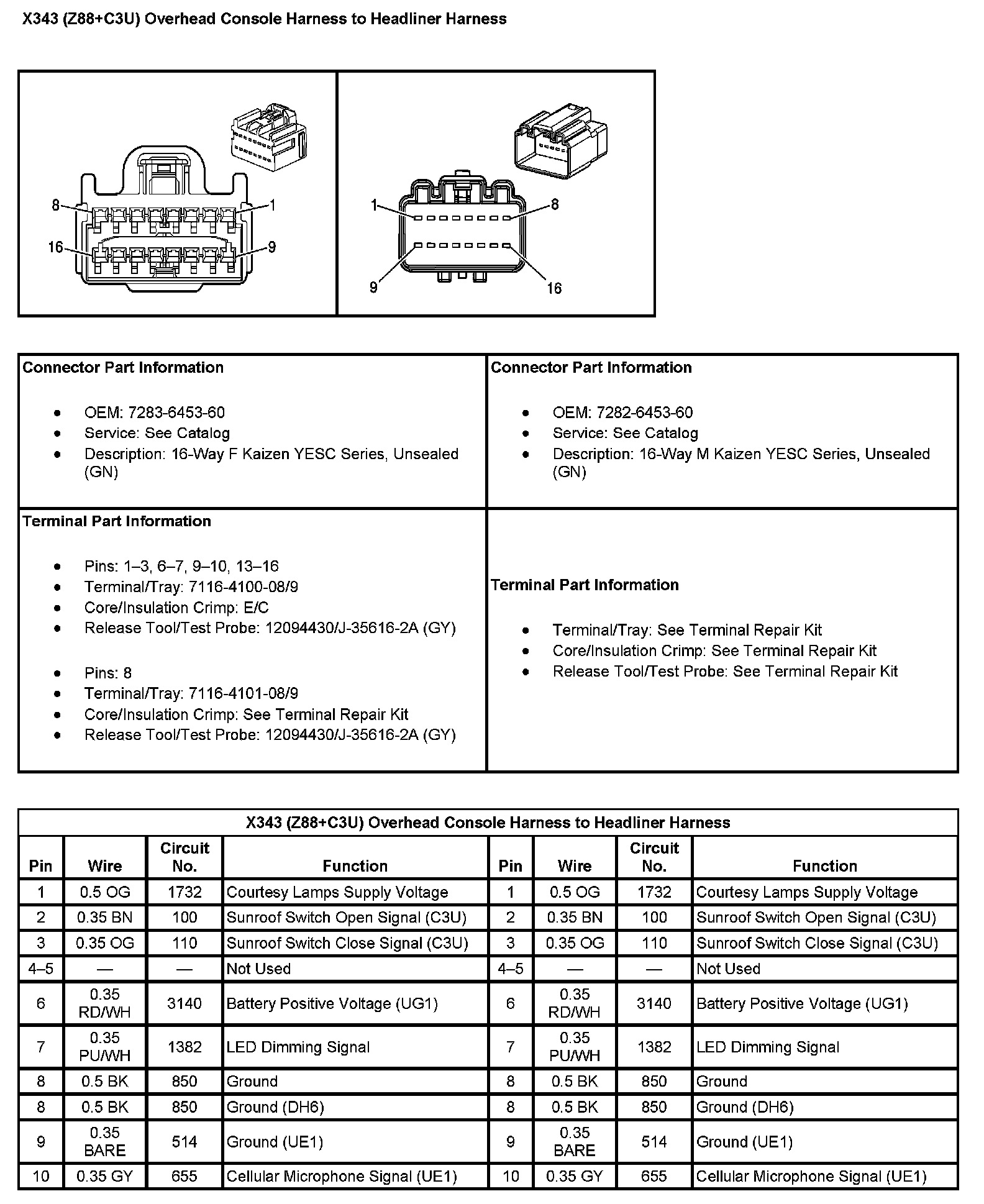

X343 (With RPO Code Z88+C3U) Overhead Console Harness To Headliner Harness (Pin 1 To 10):

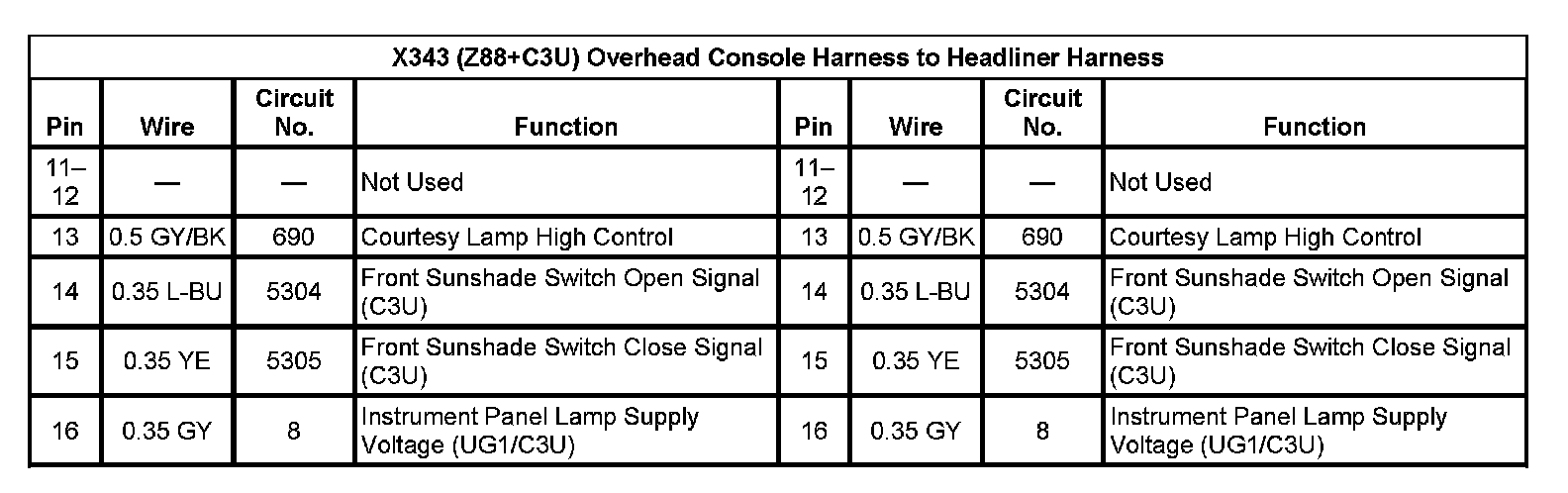

X343 (With RPO Code Z88+C3U) Overhead Console Harness To Headliner Harness (Pin 11 To 16):
