Utility Storage Compartment: Service and Repair



Storage Compartment Replacement - Rear

Removal Procedure

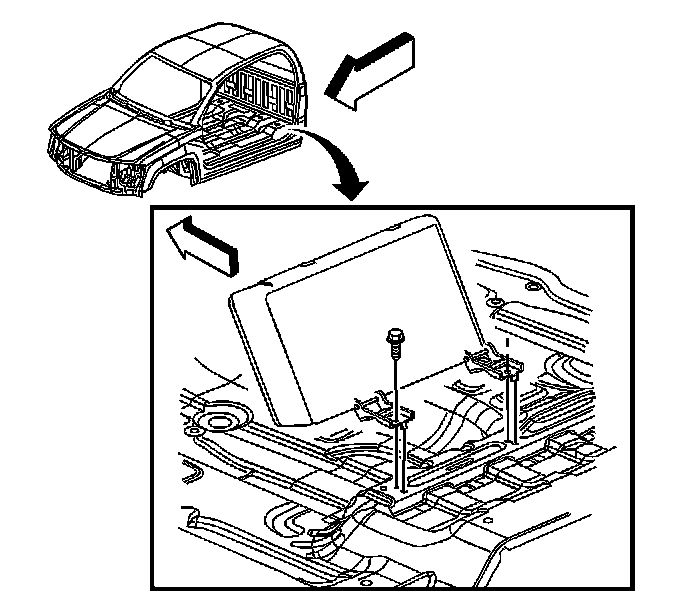

1. Remove the 2 bolts securing the rear storage compartment to the floor.
2. Remove the rear storage compartment.



Installation Procedure

1. Position the rear storage compartment on the floor.





Notice: Refer to Fastener Notice .

2. Install the 2 bolts (1) retaining the rear storage compartment to the floor.

Tighten the rear storage compartment bolts to 9 N.m (79 lb in).
