Rear Door Window Motor: Service and Repair



REAR SIDE DOOR WINDOW REGULATOR MOTOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the rear door window regulator.

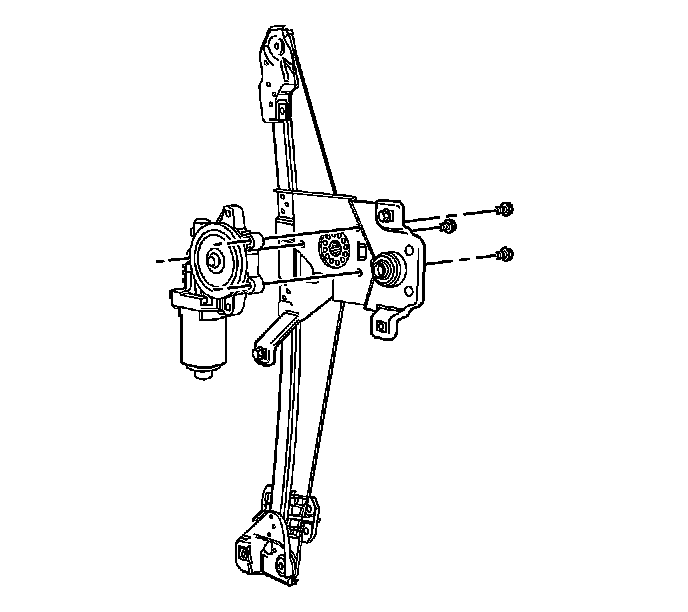

2. Remove the bolts retaining the rear window regulator motor to the regulator bracket.
3. Remove the rear window regulator motor from the regulator.

INSTALLATION PROCEDURE




1. Install the rear window regulator motor to the regulator.

2. NOTE: Refer to Fastener Notice.

Install the bolts retaining the rear window regulator motor to the regulator bracket.

Tighten the rear window regulator motor bolts to 4.5 N.m (40 lb in).

3. Install the rear door window regulator.
