Connector Views



Immobilizer Connector End Views

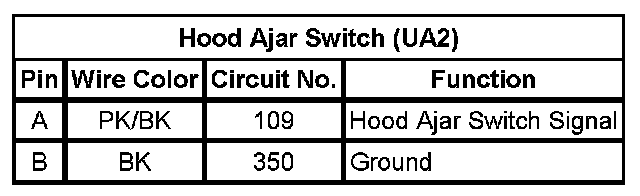

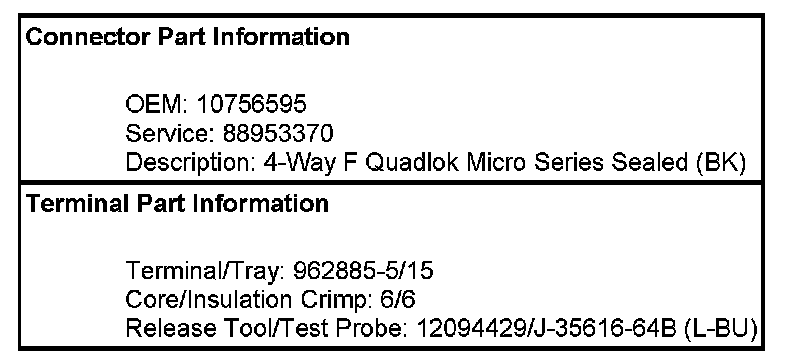

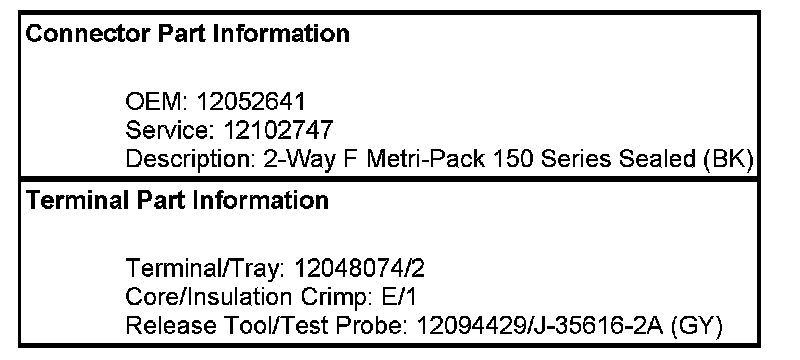

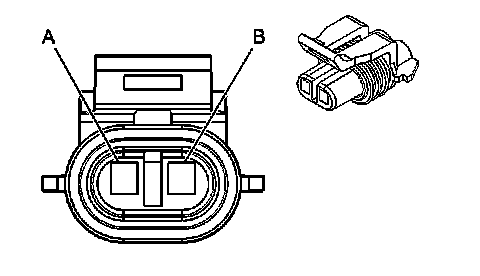

Hood Ajar Switch (UA2)

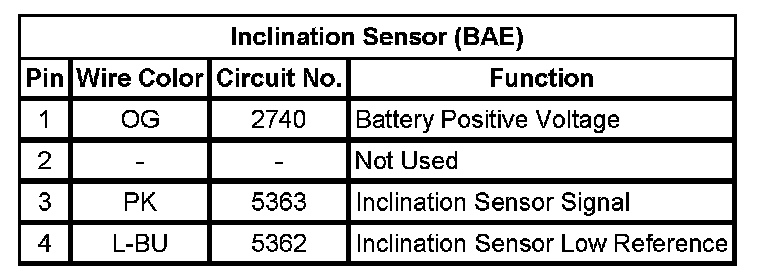

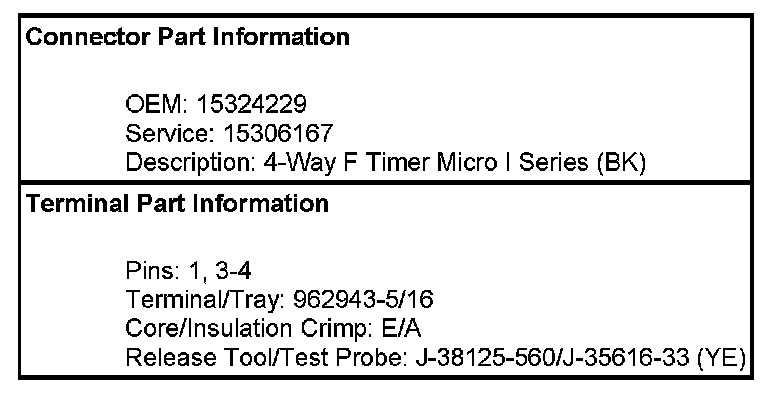

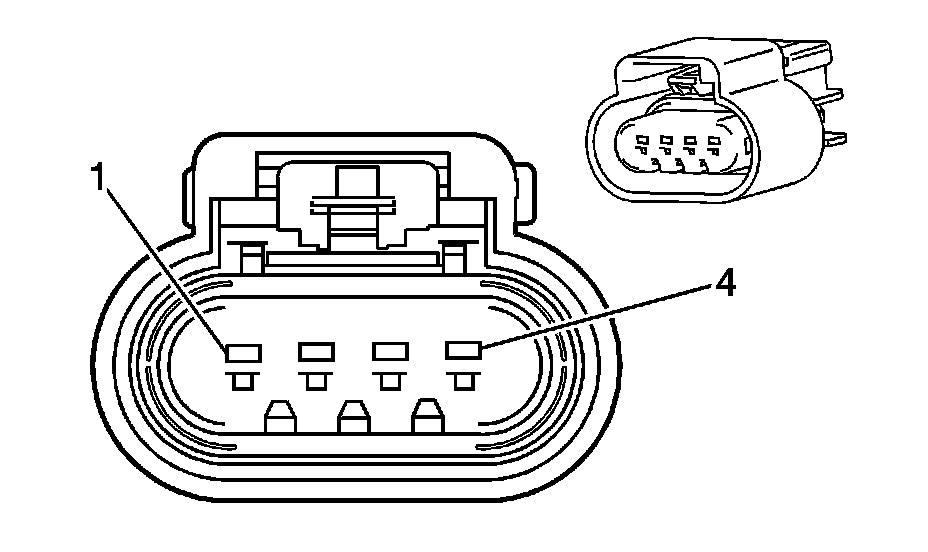

Inclination Sensor (BAE)

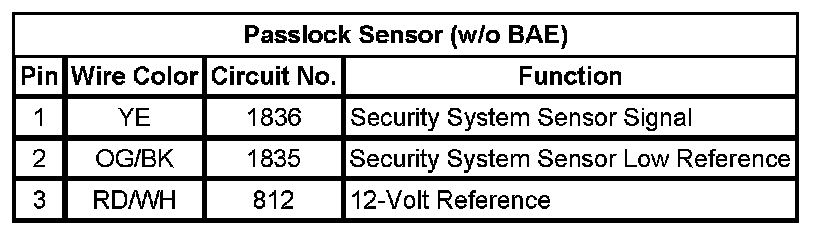

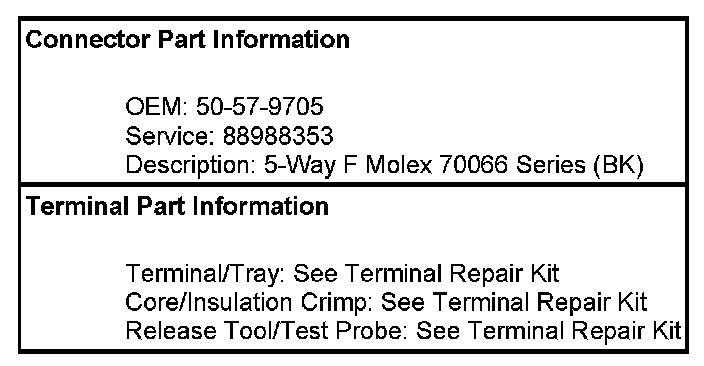

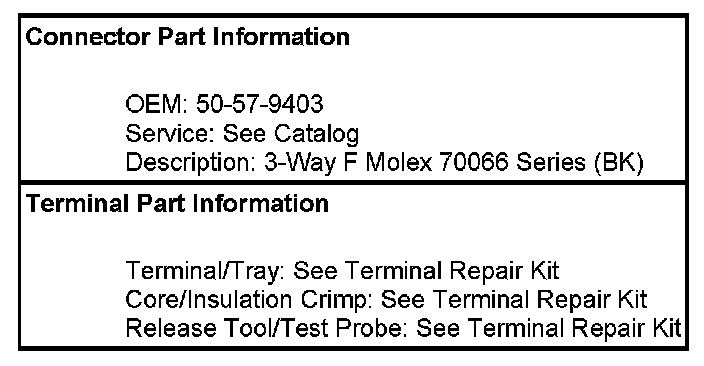

Passlock Sensor (w/o BAE)

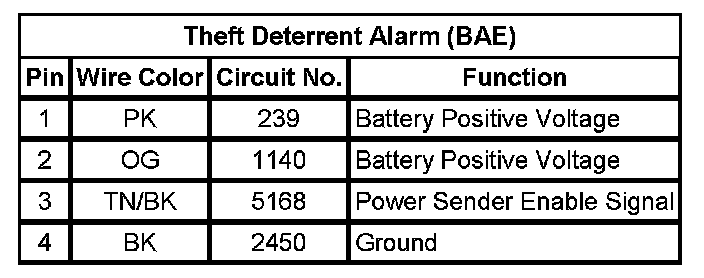

Theft Deterrent Alarm (BAE)

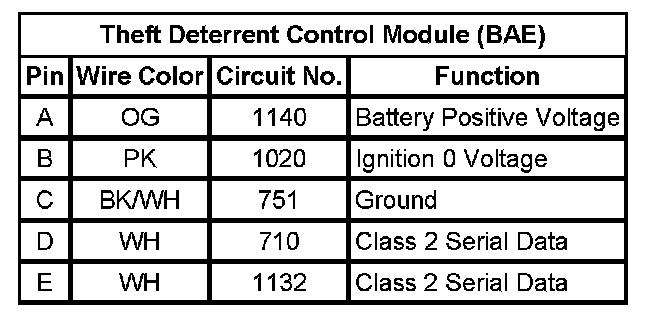

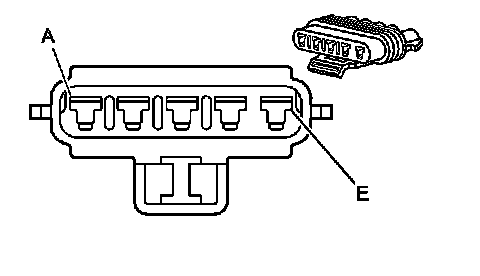

Theft Deterrent Control Module (BAE)
