Hood Sensor/Switch (For Alarm): Locations

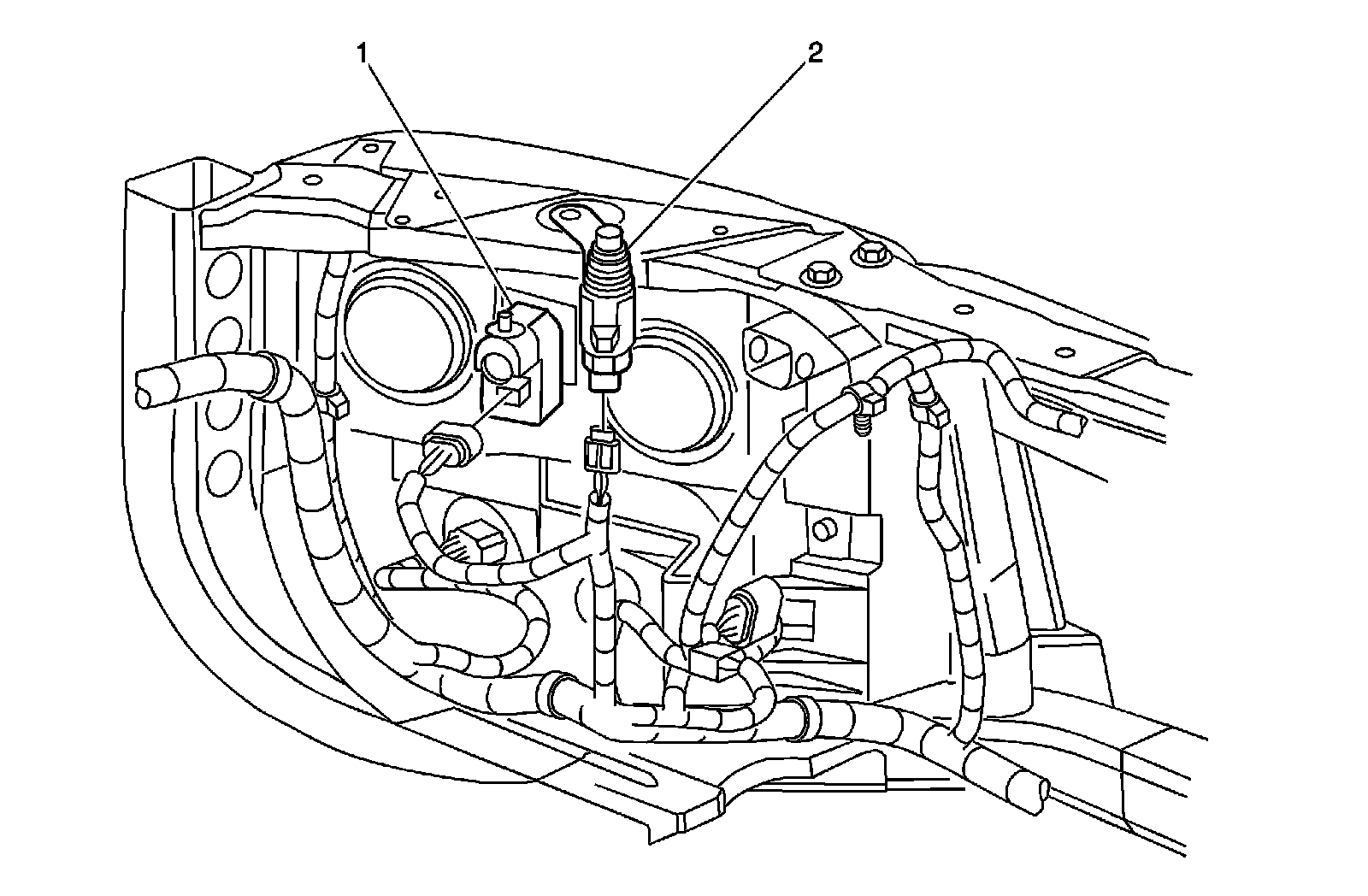

Immobilizer Component Views

Behind Left Headlamp

1 - Headlamp Leveling Actuator - Left (TR6)
2 - Hood Ajar Switch (UA2)
