Seat Belt Buckle

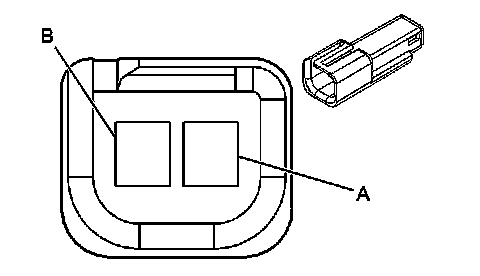

Seat Belt Connector End Views

Seat Belt Buckle - Driver

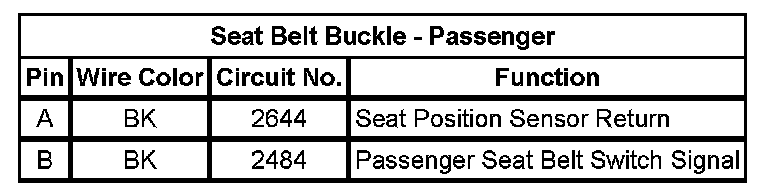

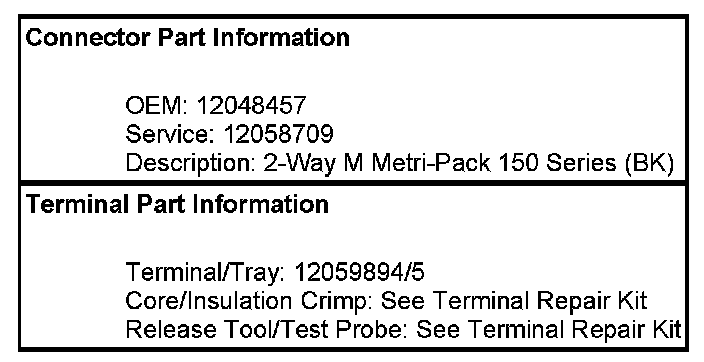

Seat Belt Buckle - Passenger
