Home >> GMC >> 2007 >> Envoy 2WD L6-4.2L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Relays and Modules - Cooling System >> Radiator Cooling Fan Motor Relay >> Locations

Radiator Cooling Fan Motor Relay: Locations

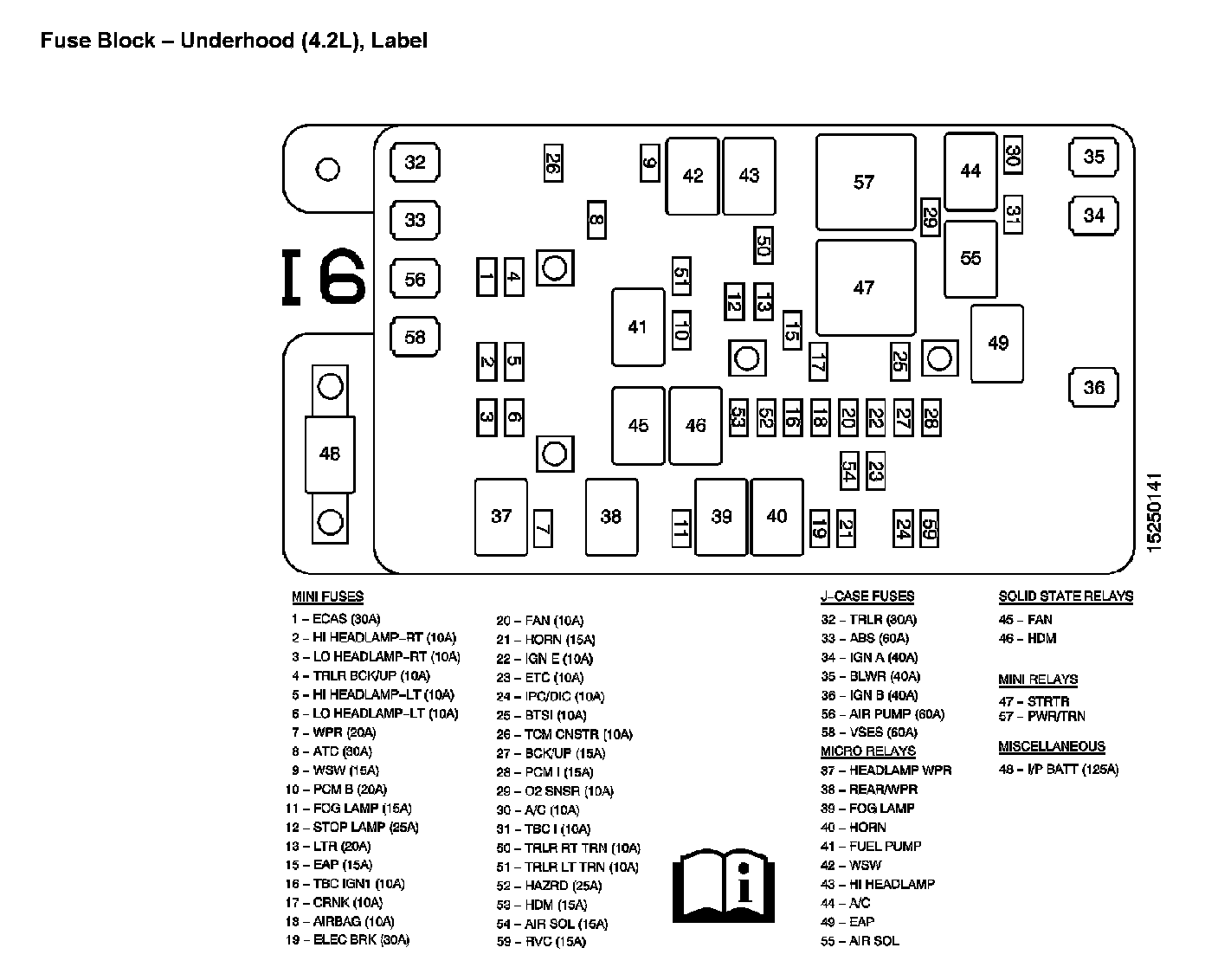

Fuse Block - Underhood (4.2L), Label:
