Home >> GMC >> 2007 >> Envoy 2WD L6-4.2L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Diagnostic Aids >> SIR Schematic Icons

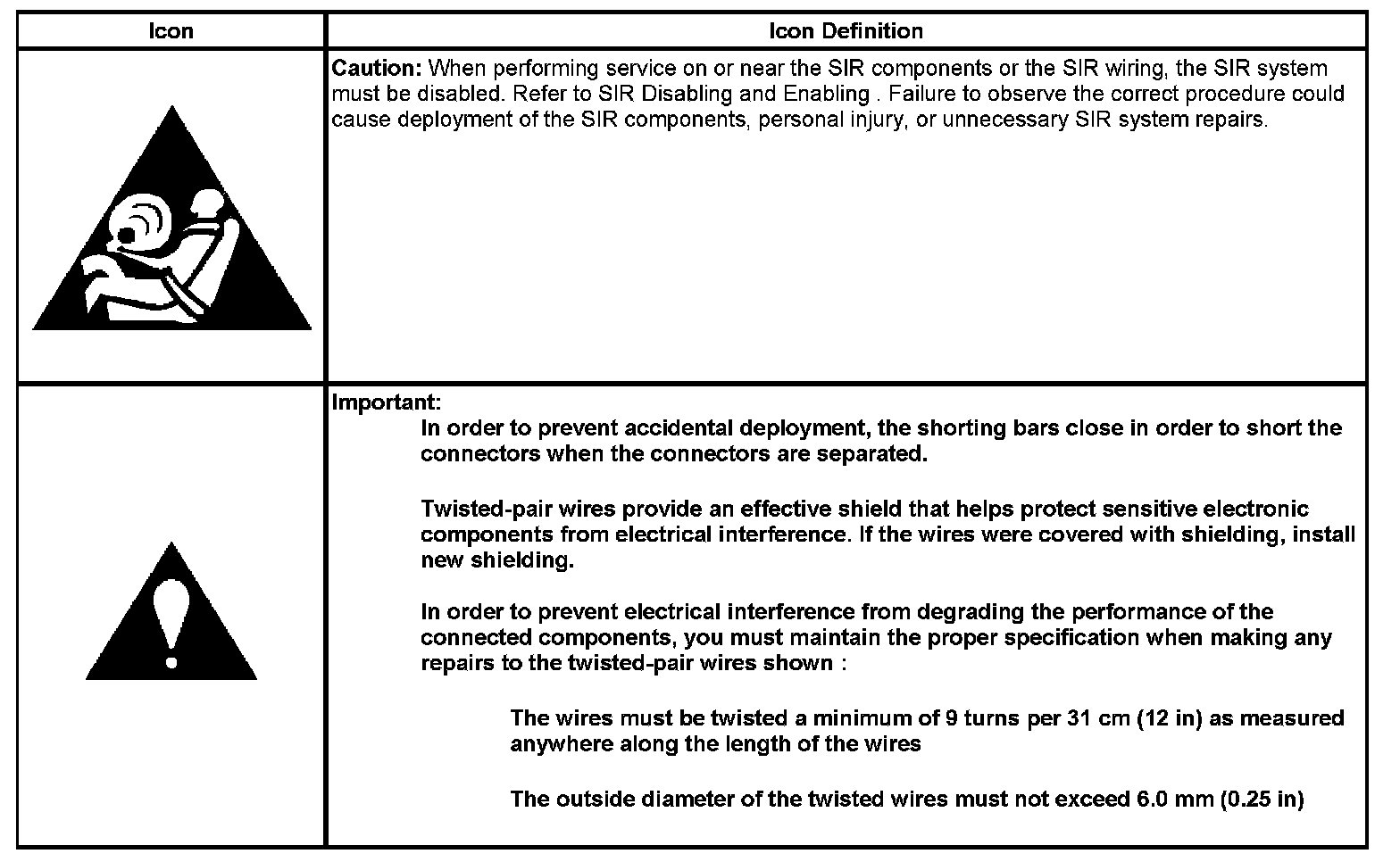

SIR Schematic Icons



SIR Schematic Icons
