Operation CHARM
: Car repair manuals for everyone.
Home
>>
GMC
>>
2007
>>
Envoy 2WD L6-4.2L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Chassis Views
Chassis Views

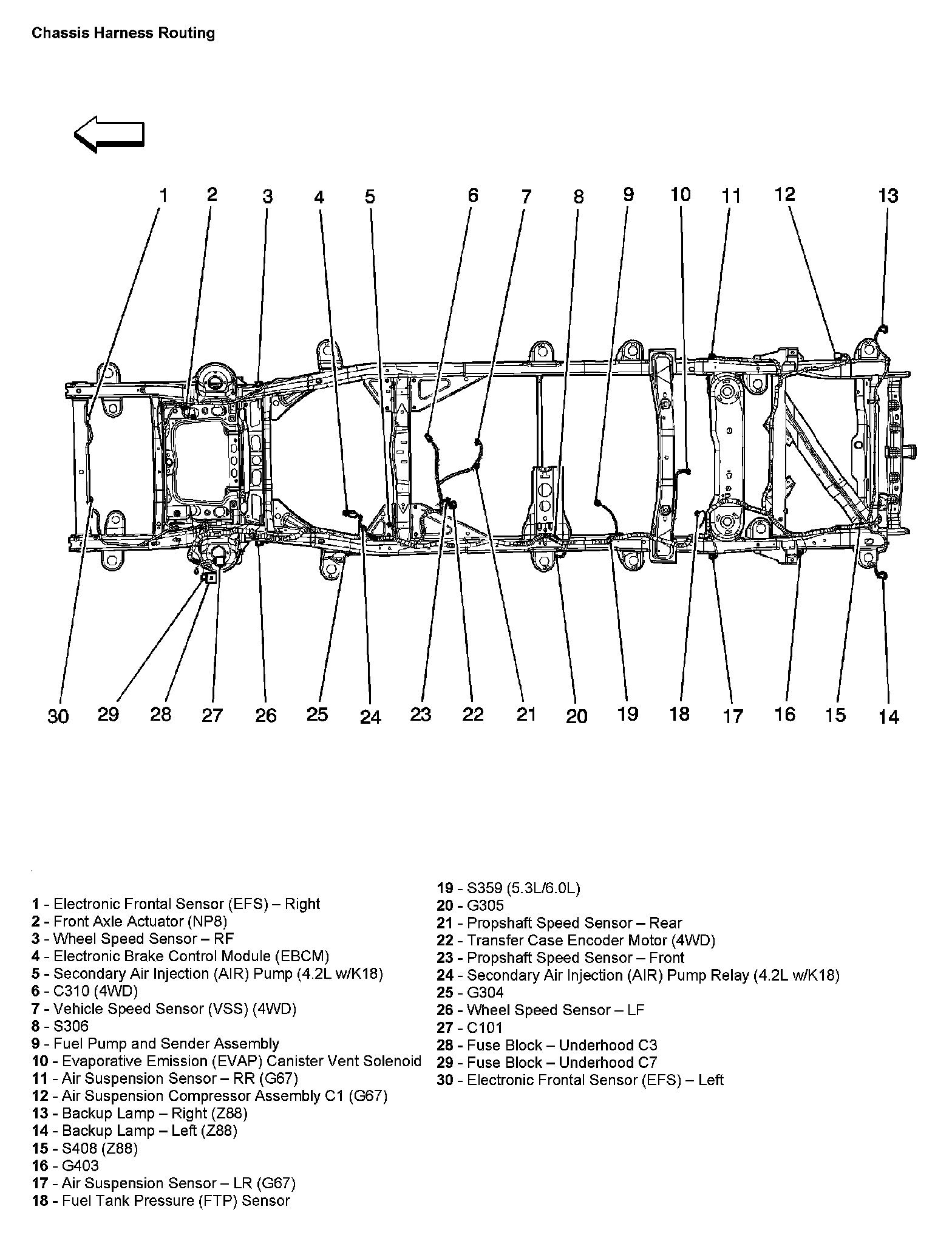

Chassis Harness Routing:
