C314
C314

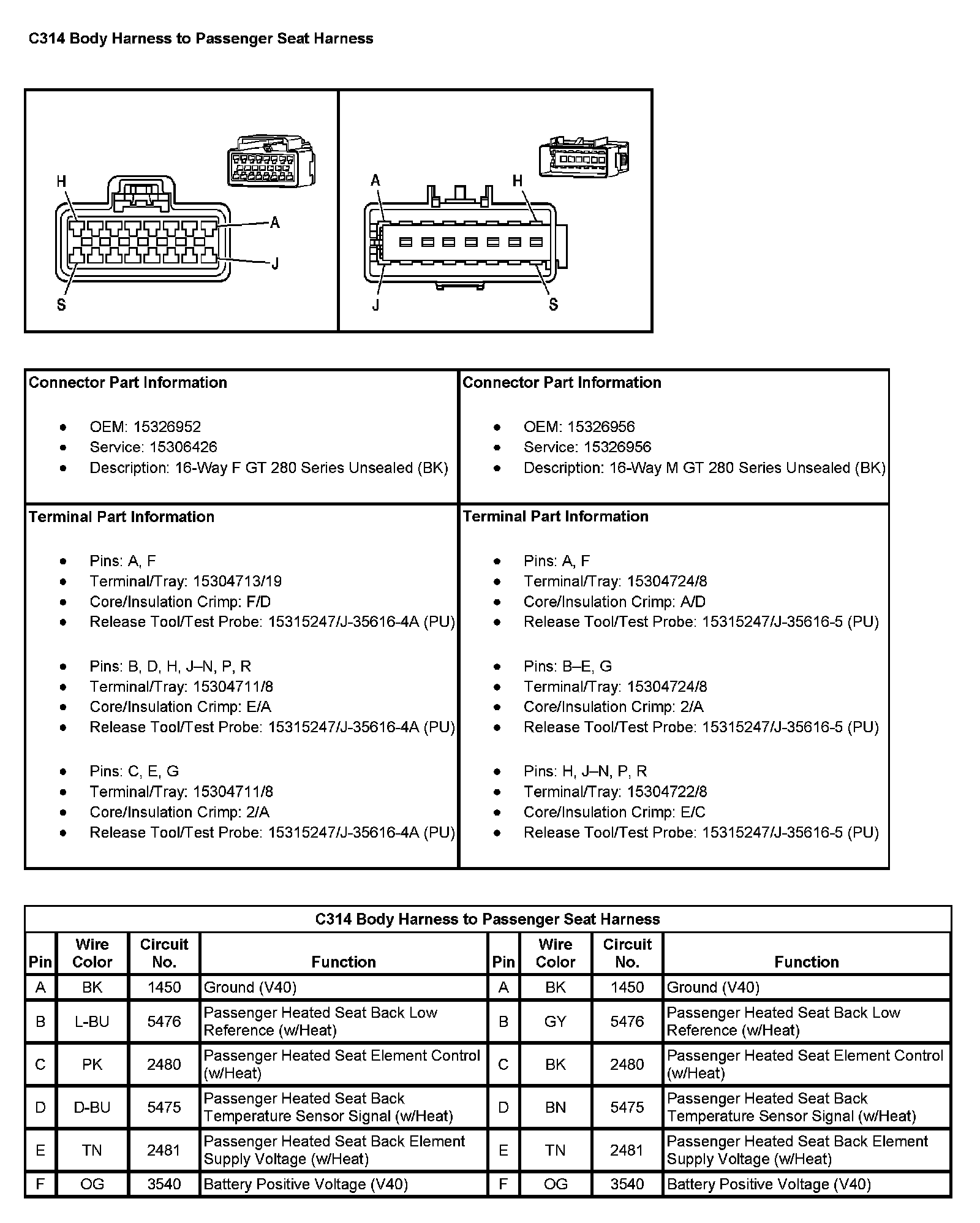

C314 Body Harness To Passenger Seat Harness (Pin A To F):

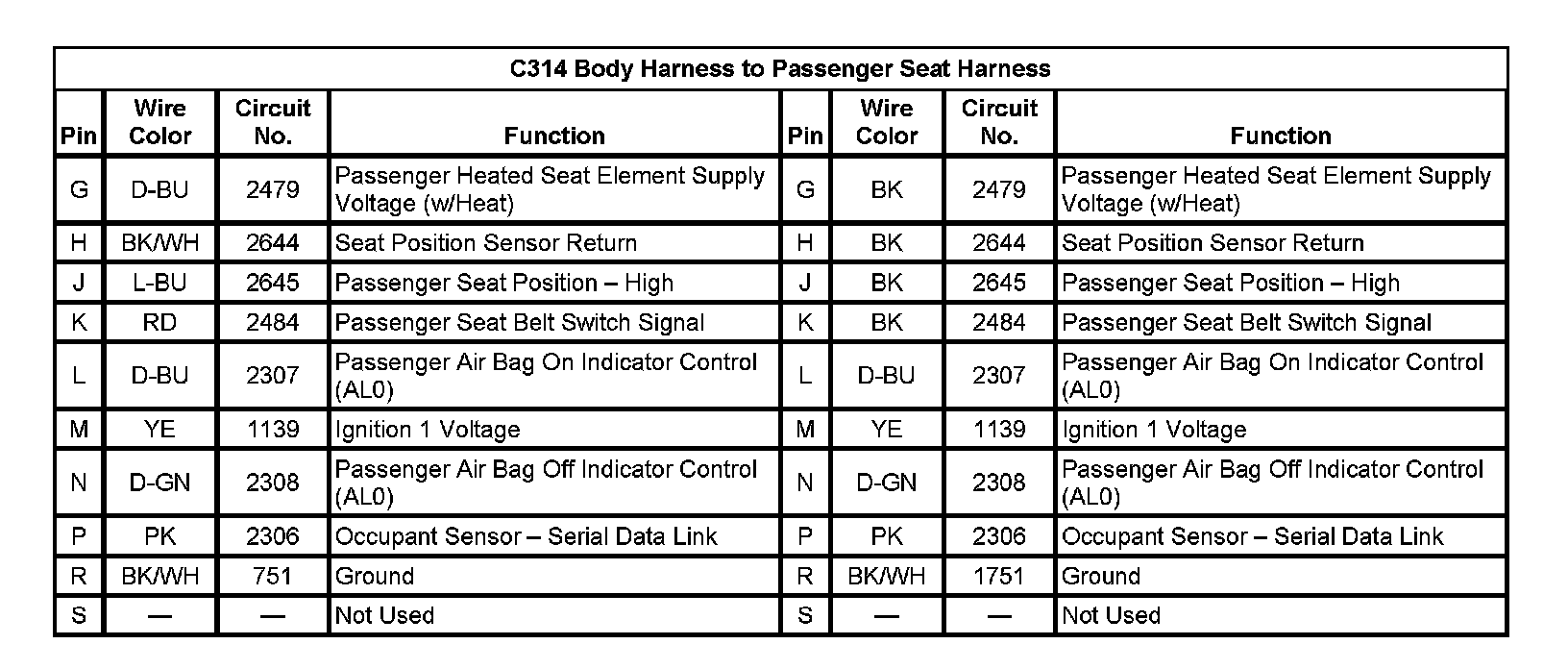

C314 Body Harness To Passenger Seat Harness (Pin G To S):
