Front of Vehicle (With RPO Code W49)

Entertainment/Communication Component Views

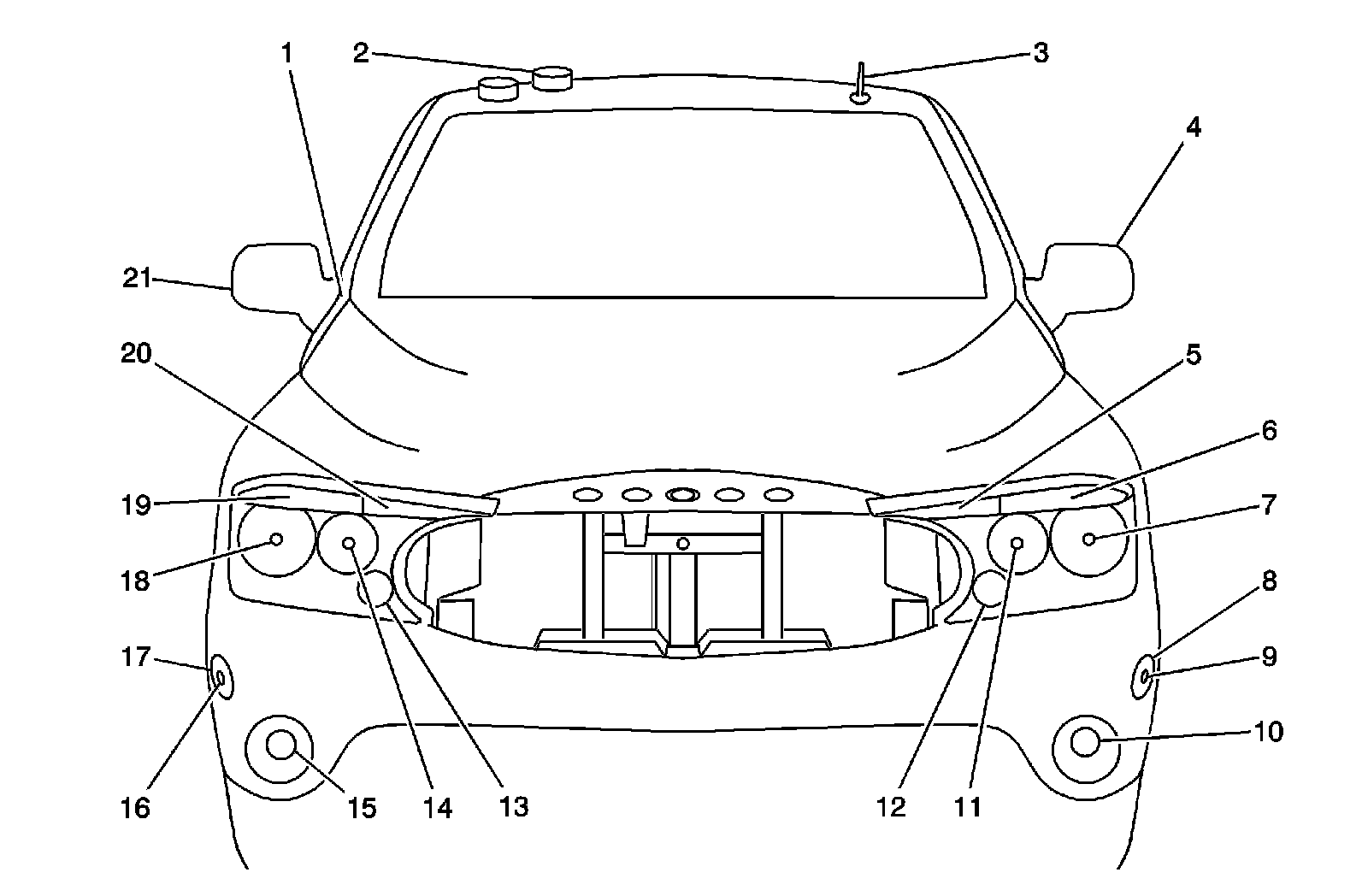

Front of Vehicle (W49)




1 - Radio Antenna
2 - Digital Radio Antenna
3 - Cellular Antenna (UE1)
4 - Outside Rearview Mirror - Driver
5 - Park Lamp - LF
6 - Park Lamp - LF
7 - Headlamp - High Beam - Left
8 - Marker Lamp - LF
9 - Cornering Lamp - Left
10 - Fog Lamp - LF (T96)
11 - Headlamp - Low Beam - Left
12 - Turn Signal Lamp - LF
13 - Turn Signal Lamp - RF
14 - Headlamp - Low Beam - Right
15 - Fog Lamp - RF (T96)
16 - Cornering Lamp - Right
17 - Marker Lamp - RF
18 - Headlamp - High Beam - Right
19 - Park Lamp - RF
20 - Park Lamp - RF
21 - Outside Rearview Mirror - Passenger
