Camshaft Position Sensor: Locations

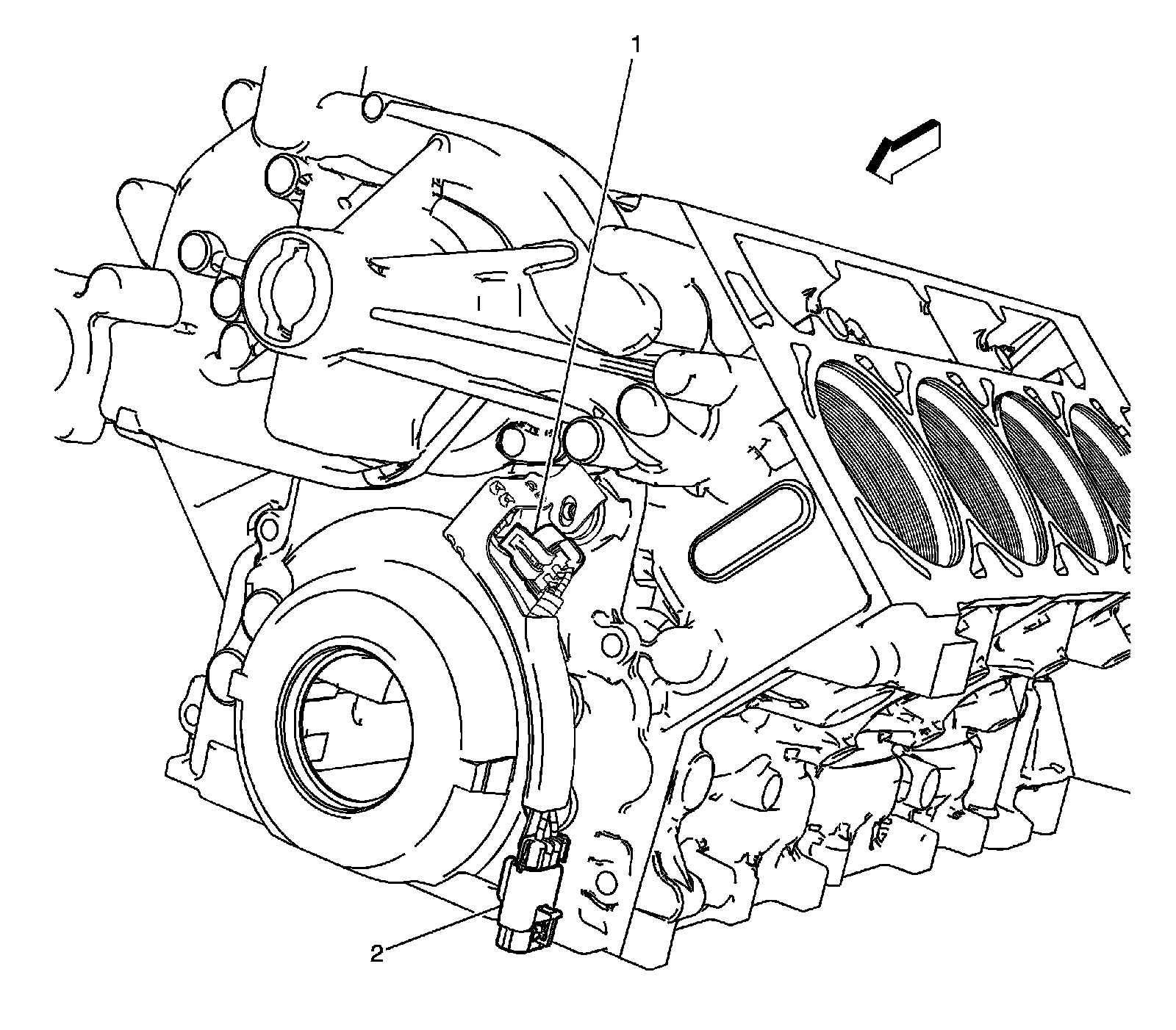

Engine Controls Component Views

Camshaft Position (CMP) Sensor




1 - Camshaft Position (CMP) Sensor
2 - C110
